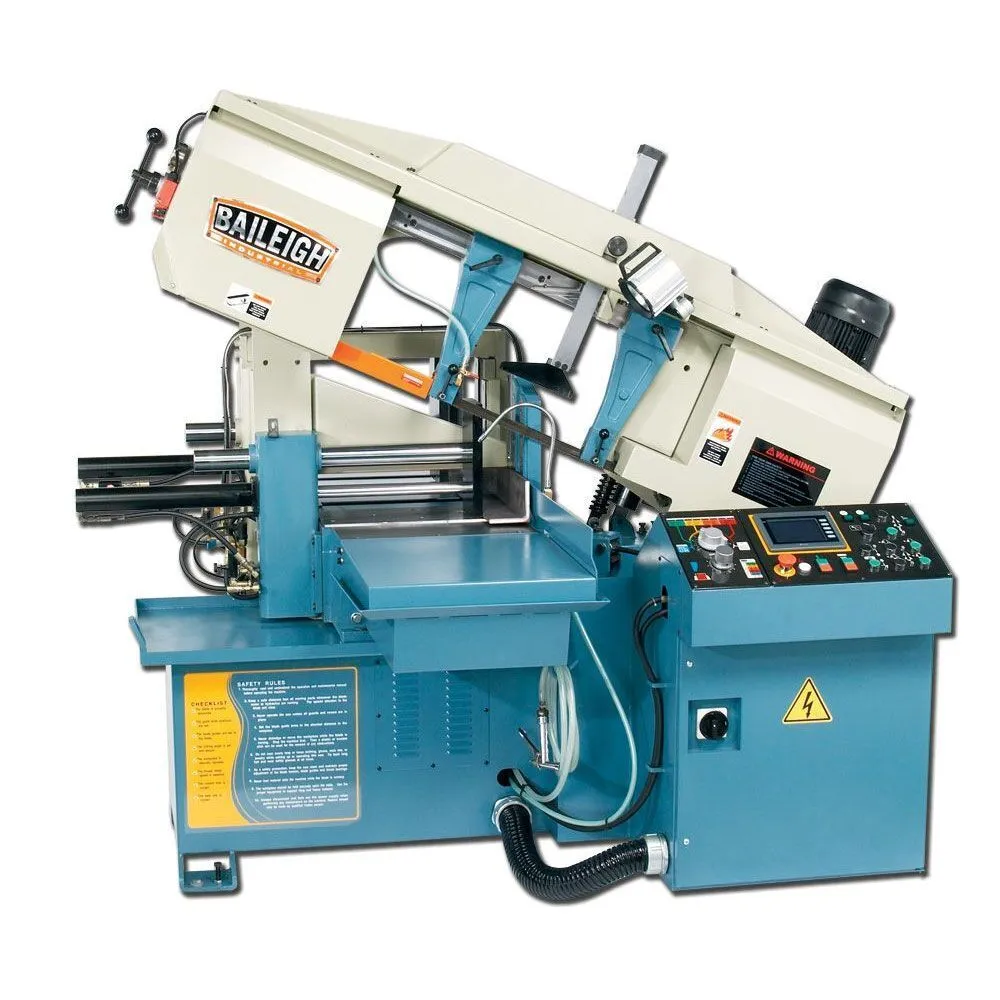

The Baileigh BS-20A’s hydraulic system can automatically clamp, cut, and feed bundles. Cuts up to 13 inches round and 13 x 18 inches rectangle at 90°. 89 to 256 fpm variable speed, so you can fine-tune for your material. Available in 220-volt or 440-volt 3-phase models. Powerful 5 hp motor runs the low-pressure industrial-grade hydraulic system.
| Capacity Round | 13 x 11 in. (90° x 45°) | 13 x 11 in. (90° x 45°) |
| Capacity Square | 13 x 11 in. (90° x 45°) | 13 x 11 in. (90° x 45°) |
| Capacity Rectangular | 13 x 18 x 13 x 11 in. (90° x 45° x 45°L) | 13 x 18 x 13 x 11 in. (90° x 45° x 45°L) |
| Blade Motor | 5 HP | 5 HP |
| Blade Guide | Carbide x Roller | Carbide x Roller |
| Blade Speed | 89 – 256 fpm (Variable Speed) | 89 – 256 fpm (Variable Speed) |
| Power | 220v, 3-Phase | 220v, 3-Phase |
| Return | Hydraulic | Hydraulic |
| Miter Adjustment | Swivel Head | Swivel Head |
| Miter Angle | 0 – 45° | 0 – 45° |
| Chip Removal | Hydraulic Auger | Hydraulic Auger |
| Table Height | 32.3" | 820.42 mm |
| Material Clamping Bundling | Hydraulic | Hydraulic |
| Material Feed | Hydraulic | Hydraulic |
| Descent Control | Pressure Assist Hydraulic | Pressure Assist Hydraulic |
| Country of Manufacture | Taiwan | Taiwan |
| Shipping Dimensions | 90 x 87 x 69 in. | 90 x 87 x 69 in. |
| Shipping Weight | 3,500 lb | 1,587.6 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
