NEW BAILEIGH BA9-1000781

Florida, United States
Asking Price
USD $60,199.00
1 available
3,929Listings|11Followers
Overview
Press Brakes

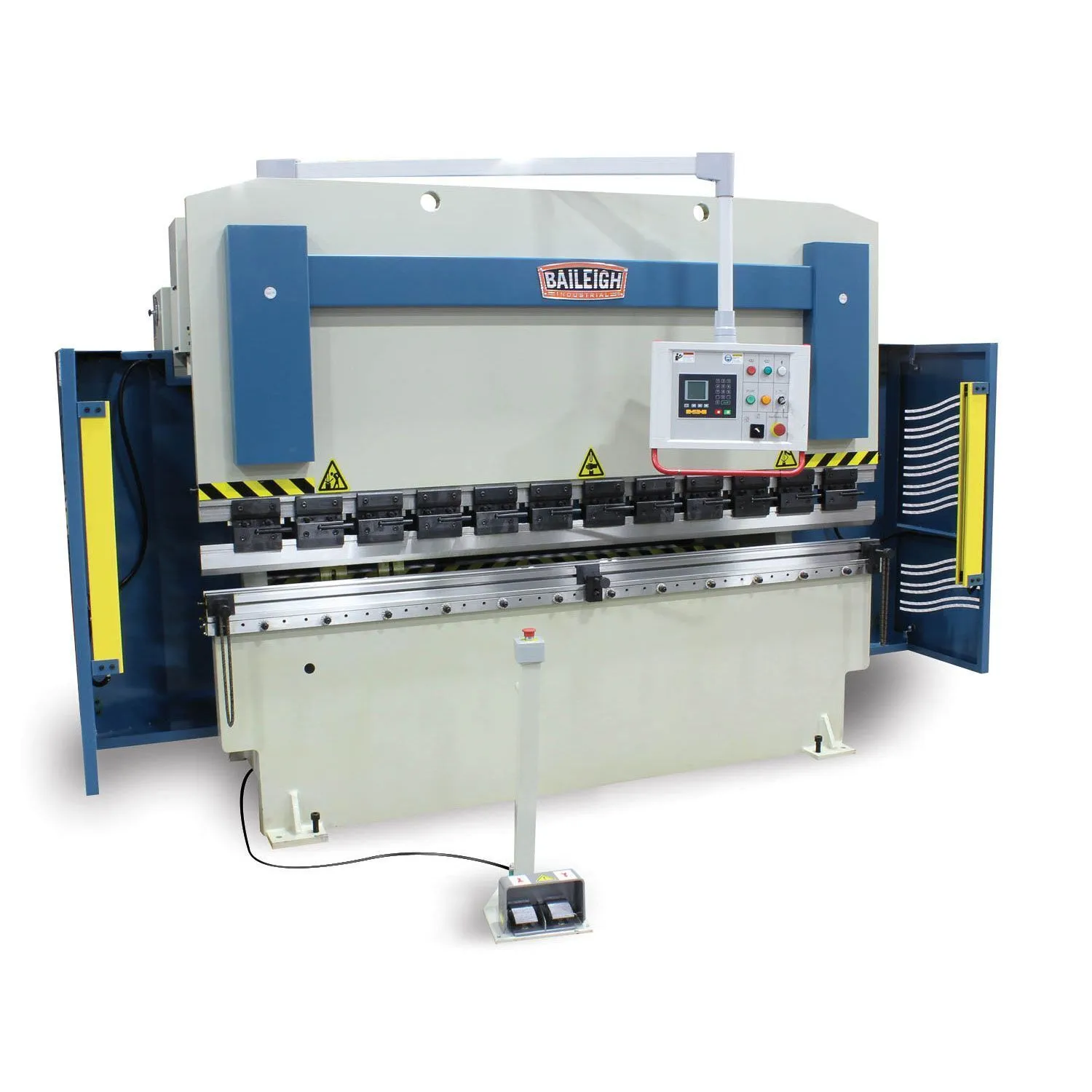

BAILEIGH BP-11210CNC Press Brake delivers 120 tons of pressure. With 102 in. between all-steel uprights, this hydraulic press brake can bend 8-foot sheets of metal. Runs on 220-volt 3-phase power.

Specs
Pressure/Tonnage
120 T
108.862 t
Table Length
125"
3,175 mm
Throat Depth
12.5"
317.5 mm
# Axis
2
2
Bending Length
125"
3,175 mm
Return Speed
2.4 in/sec.
59.9 mm/sec.
Bending Speed
0.6 in/sec.
15.2 mm/sec.
Distance Between Housings (In.)
102/124
102/124
Distance From Table To Ram
15.3"
388.62 mm
Stroke Distance
4.7"
119.38 mm
Back Gauge Motor
1/2 HP
1/2 HP
Back Gauge Capacity
23.62"
599.95 mm
Power
220V / 3-phase
220V / 3-phase
Shipping Dimensions (L/W/H)
168 x 67 x 96 in.
168 x 67 x 96 in.
Gross Weight
14,550 lb
6,599.8 kg
Control
CNC
CNC
Dimensions
168 x 67 x 96 in.
168 x 67 x 96 in.
Weight
14500 lbs.
14500 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
