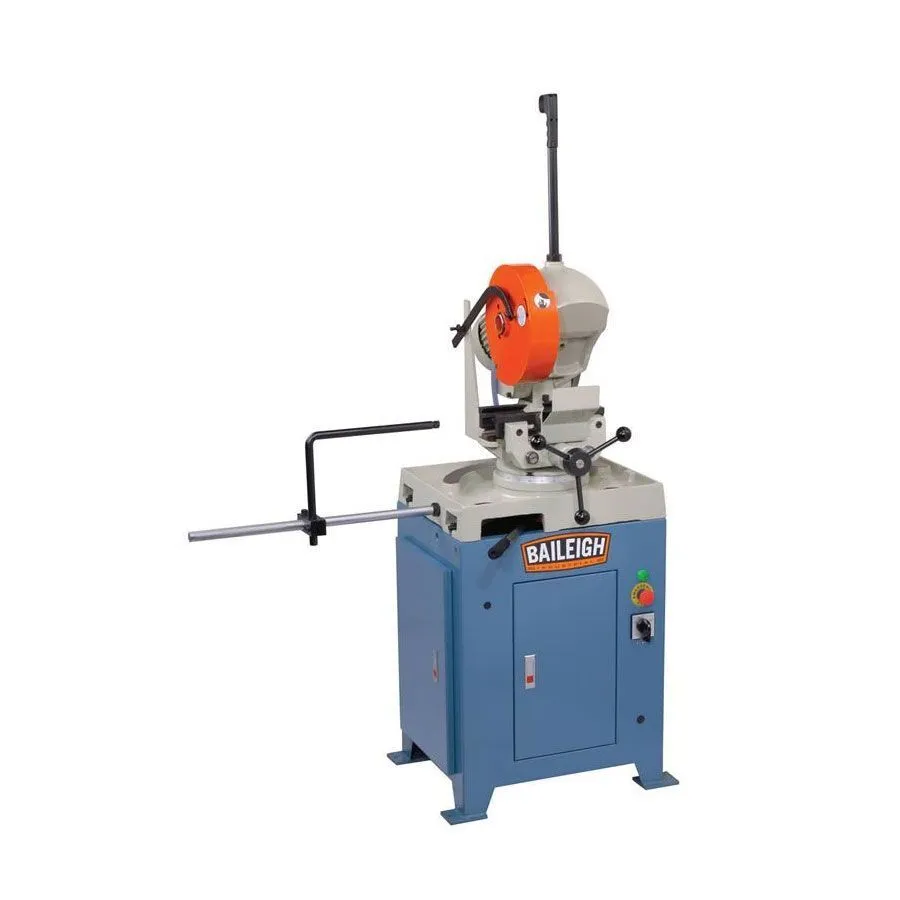

The Baileigh CS-275M manually operated cold saw comes with a self-centering vise, steel stand, and flood coolant system. Accepts an 11" blade with a 2.75" round tube capacity at 90°. Miters 45° right and 90° left, perfect for slotting applications. 3 hp motor requires 220 volt 3-phase power.
| Max. Blade Diameter | 11" | 279.4 mm |
| Tubing Round at 90° | 2.75 in. | 2.75 in. |
| Solid Round at 45° | 1.5 in. | 1.5 in. |
| Solid Round at 90° | 1.5 in. | 1.5 in. |
| Tubing Rectangle at 45° | 2.165 x 2.25 in. | 2.165 x 2.25 in. |
| Tubing Rectangle at 90° | 2.75 x 2.9 in. | 2.75 x 2.9 in. |
| Tubing Square at 45° | 2.165 x 2.165 in. | 2.165 x 2.165 in. |
| Tubing Square at 90° | 2.75 in. | 2.75 in. |
| Blade Speeds | 60 rpm (mild steel), 120 rpm (aluminum) | 60 rpm (mild steel), 120 rpm (aluminum) |
| Motor | 3 / 1.5 HP | 3 / 1.5 HP |
| Voltage | 220v, 3-phase | 220v, 3-phase |
| Head Miter | 45° right and 90° left | 45° right and 90° left |
| Vise Style | Self Centering | Self Centering |
| Coolant System | Yes | Yes |
| Weight | 635 lbs. | 635 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
