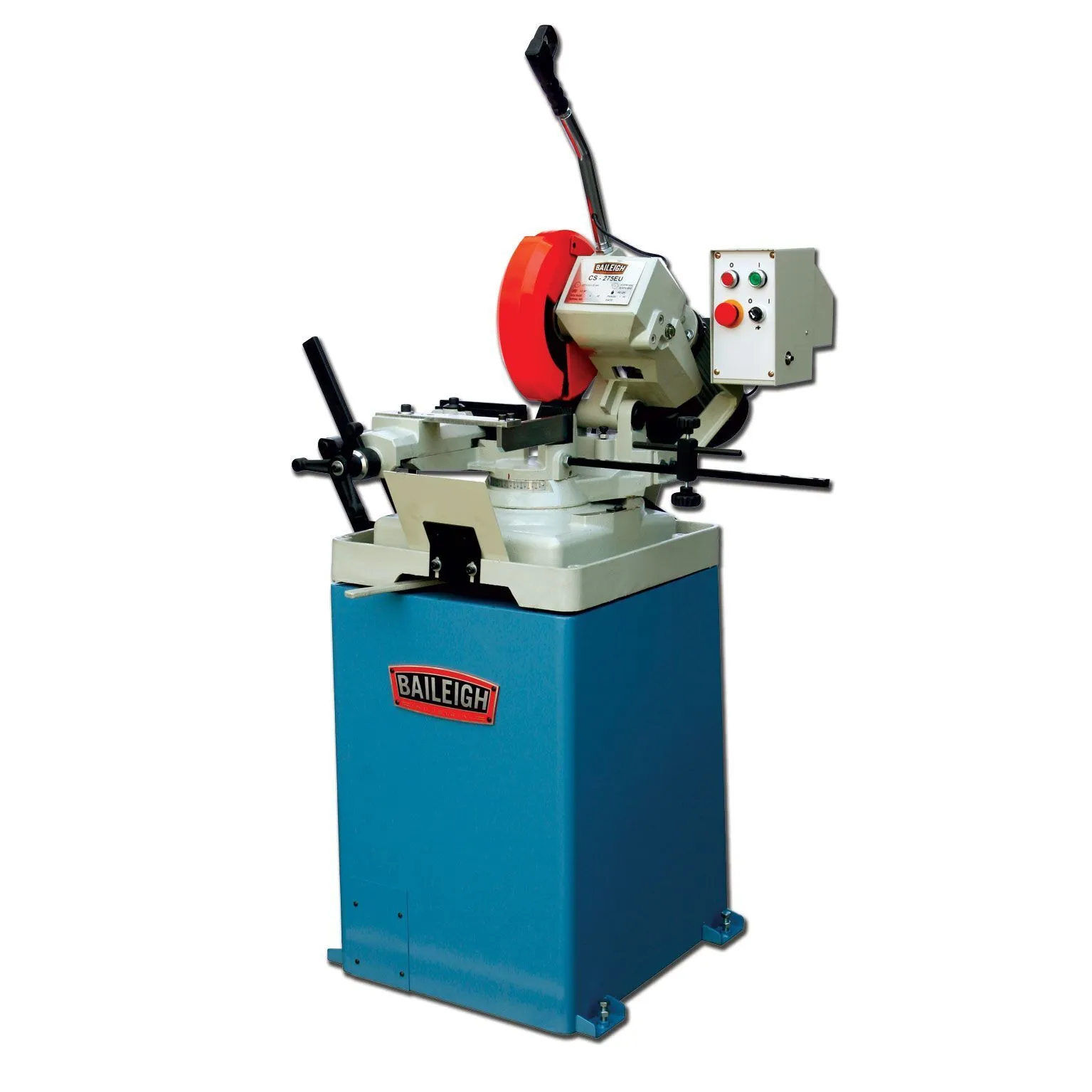

The Baileigh CS-275EU manual cold saw is ideal for light metal fabrication and chassis. A cast iron base and flood coolant system ensure a long lifetime of use. Blade turns at 54 rpm and accepts an 11" blade (included). 3.25" round tube capacity at 90°, big enough for just about any chassis project.
| Max. Blade Diameter | 11" | 279.4 mm |
| Tubing Round at 90° | 3.25 in. | 3.25 in. |
| Solid Round at 45° | 3.25 in. | 3.25 in. |
| Solid Round at 90° | 3.25 in. | 3.25 in. |
| Tubing Rectangle at 45° | 2.2 x 2 in. | 2.2 x 2 in. |
| Tubing Rectangle at 90° | 3.1 x 2 in. | 3.1 x 2 in. |
| Tubing Square at 45° | 2.2 x 2.2 in. | 2.2 x 2.2 in. |
| Tubing Square at 90° | 3.25 in. | 3.25 in. |
| Motor | 1.5 HP | 1.5 HP |
| Voltage | 110v | 110v |
| Vise Style | Single Action with Cam Lock | Single Action with Cam Lock |
| Weight | 460 lbs. | 460 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
