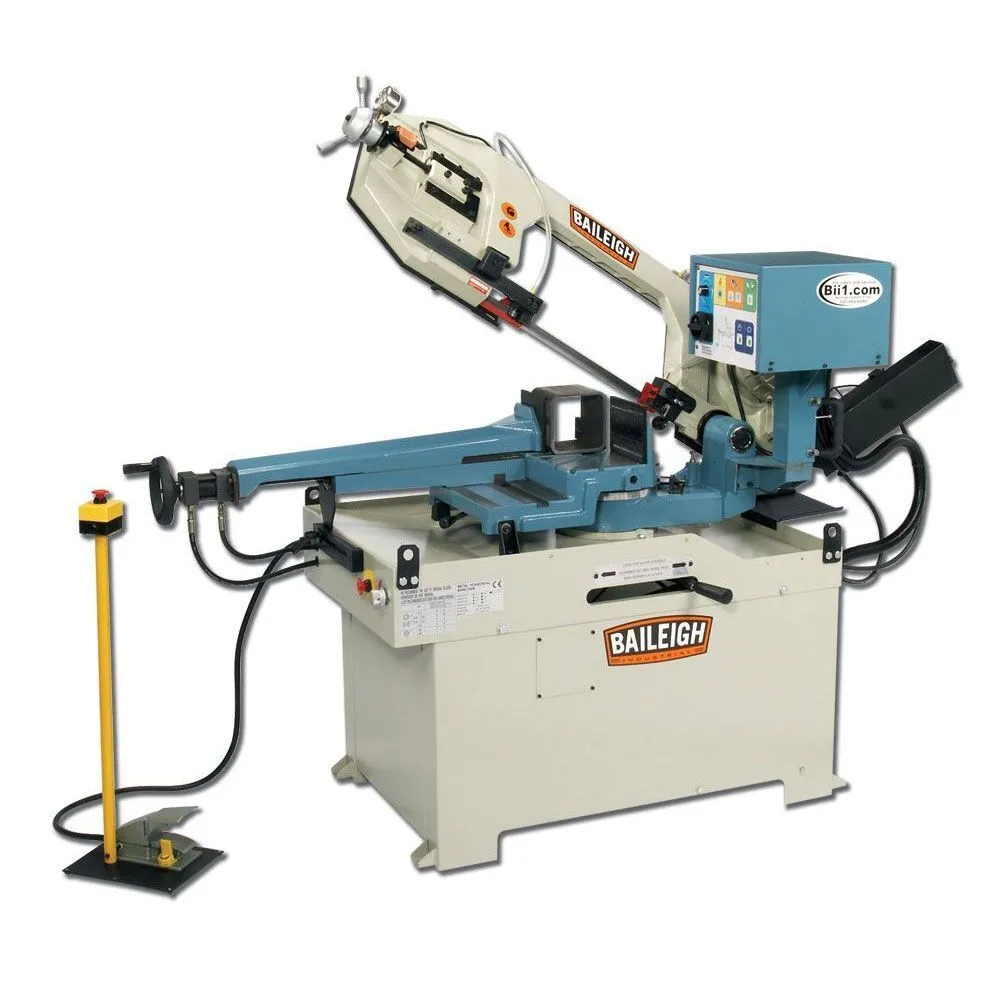

Cast iron and steel construction—plus a hydraulic system to increase productivity. The Baileigh BS-350SA semi-automatic band saw is an investment that will pay off for years to come. 10.5” OD round capacity at 90°. Accepts a standard 1” blade (included). 3 hp motor runs on 220-volt single-phase power.
| Cutting Capacity Round | 8.28 in. (45°L) | 8.28 in. (45°L) |
| Cutting Capacity Square | 10.24 x 8.66 x 5.9 x 7.09 in. (90°/ 45° / 60°) | 10.24 x 8.66 x 5.9 x 7.09 in. (90°/ 45° / 60°) |
| Cutting Capacity Rectangle | 7.3 x 4.33 in. (45°L) | 7.3 x 4.33 in. (45°L) |
| Round at 90° | 10.63" | 270 mm |
| Rectangle at 90° | 13.77 x 8.66 in. | 13.77 x 8.66 in. |
| Round at 45° | 9.45" | 240.03 mm |
| Rectangle at 45° | 9.45 x 6.3 in. | 9.45 x 6.3 in. |
| Round at 60° | 6.3" | 160.02 mm |
| Blade Guide | Carbide x Roller | Carbide x Roller |
| Blade Speed | 66–280 fpm Variable | 66–280 fpm Variable |
| Blade Motor | 2 HP High Torque 1.1Kw (AC) | 2 HP High Torque 1.1Kw (AC) |
| Power | 220v, 1-Phase | 220v, 1-Phase |
| Bed/Table Height | 35" | 889 mm |
| Miter Adjustment | Dual Swivel Head | Dual Swivel Head |
| Miter Angle | 0 – 60°, 45°L | 0 – 60°, 45°L |
| Return | Hydraulic | Hydraulic |
| Descent Control | Pressure Assist Hydraulic | Pressure Assist Hydraulic |
| Drive | Gear | Gear |
| Shipping Dimensions | 72 x 30 x 66 in. | 72 x 30 x 66 in. |
| Dimensions | 72 x 30 x 66 in. L x W x H | 72 x 30 x 66 in. L x W x H |
| Weight | 1,167 lbs. | 1,167 lbs. |
