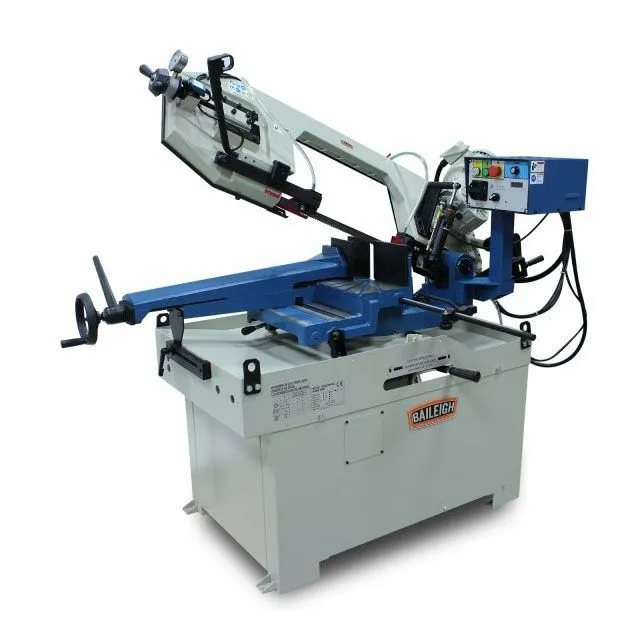

This Baileigh BS-350M dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left. 10.5” round capacity at 90°. Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere. 2 hp motor, driven by an AC inverter, makes the machine reliable.
| Capacity Round | 10.63 x 9.45 x 6.3 x 8.28 in. (90° x 45° x 60° x 45°L) | 10.63 x 9.45 x 6.3 x 8.28 in. (90° x 45° x 60° x 45°L) |
| Capacity Square | 10.24 x 8.66 x 5.9 x 7.09 in. (90° x 45° x 60° x 45°L) | 10.24 x 8.66 x 5.9 x 7.09 in. (90° x 45° x 60° x 45°L) |
| Capacity Rectangular | 13.77 x 8.66 x 9.45 x 6.3 x 7.3 x 4.33 in. (90° x 45° x 60° x 45°L) | 13.77 x 8.66 x 9.45 x 6.3 x 7.3 x 4.33 in. (90° x 45° x 60° x 45°L) |
| Blade Speed | 66–280 fpm Variable | 66–280 fpm Variable |
| Motor | 2 HP | 2 HP |
| Power | 220v / 1-phase | 220v / 1-phase |
| Miter Adjustment | Dual Swivel Head | Dual Swivel Head |
| Miter Angle | 0 – 60°, 45°L | 0 – 60°, 45°L |
| Table Height | 35" | 889 mm |
| Blade Guides | Carbide x Roller | Carbide x Roller |
| Descent Control | Hydraulic | Hydraulic |
| Drive | Gear | Gear |
| Dimensions | 69 x 29 x 44 in. | 69 x 29 x 44 in. |
| Weight | 864 lbs. | 864 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
