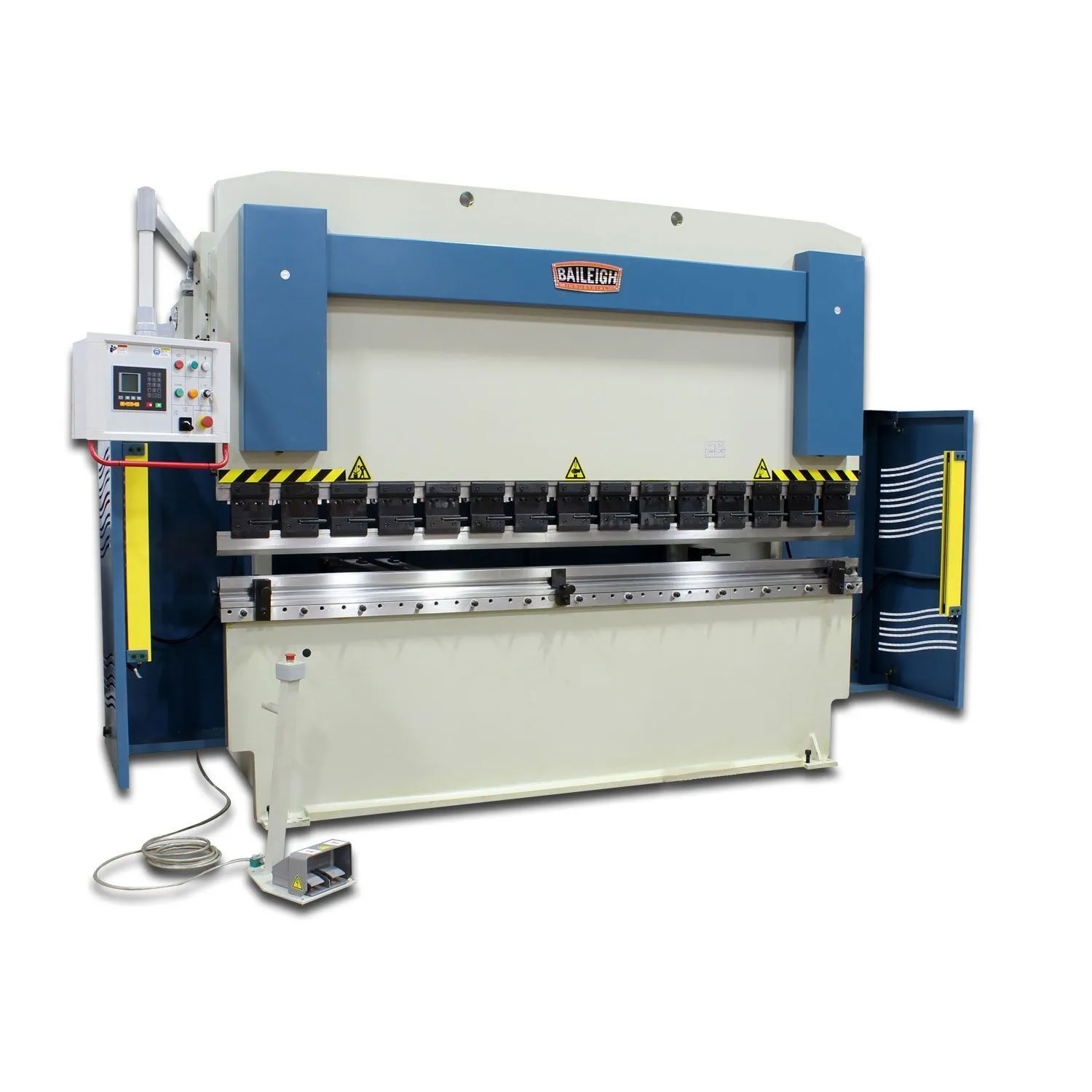

Heavy steel construction enables this programmable 10-foot BAILEIGH BP-22410CNC press brake to make crisp bends without deformation. Delivers a whopping 224 tons of pressure and offers 10-foot length and 100” of distance between the housings. Runs on 220-volt 3-phase power.
| Pressure/Tonnage | 224 T | 203.21 t |
| # Axis | 2 | 2 |
| Throat Depth | 12.5" | 317.5 mm |
| Table Length | 125" | 3,175 mm |
| Approach Speed | 2 in/sec. | 50.8 mm/sec. |
| Bending Speed | 0.2 in/sec. | 6 mm/sec. |
| Distance Between Housings (In.) | 100/123 in. | 100/123 in. |
| Distance From Table To Ram | 19.6" | 497.84 mm |
| Stroke Distance | 7" | 177.8 mm |
| Back Gauge Motor | 1/2 HP | 1/2 HP |
| Back Gauge Capacity | 23.62" | 599.95 mm |
| Power | 220V / 3-phase | 220V / 3-phase |
| Machine size, LxWxH | 134 x 64 x 103 in. | 134 x 64 x 103 in. |
| Shipping Dimensions (L/W/H) | 155 x 72 x 100 in. | 155 x 72 x 100 in. |
| Gross Weight | 29,570 lb | 13,412.7 kg |
| Shipping weight | 21,280 lb | 9,652.5 kg |
| Control | CNC | CNC |
| Dimensions | 155 x 72 x 100 in. | 155 x 72 x 100 in. |
| Weight | 29,570 lbs. | 29,570 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
