Overview
Press Brakes

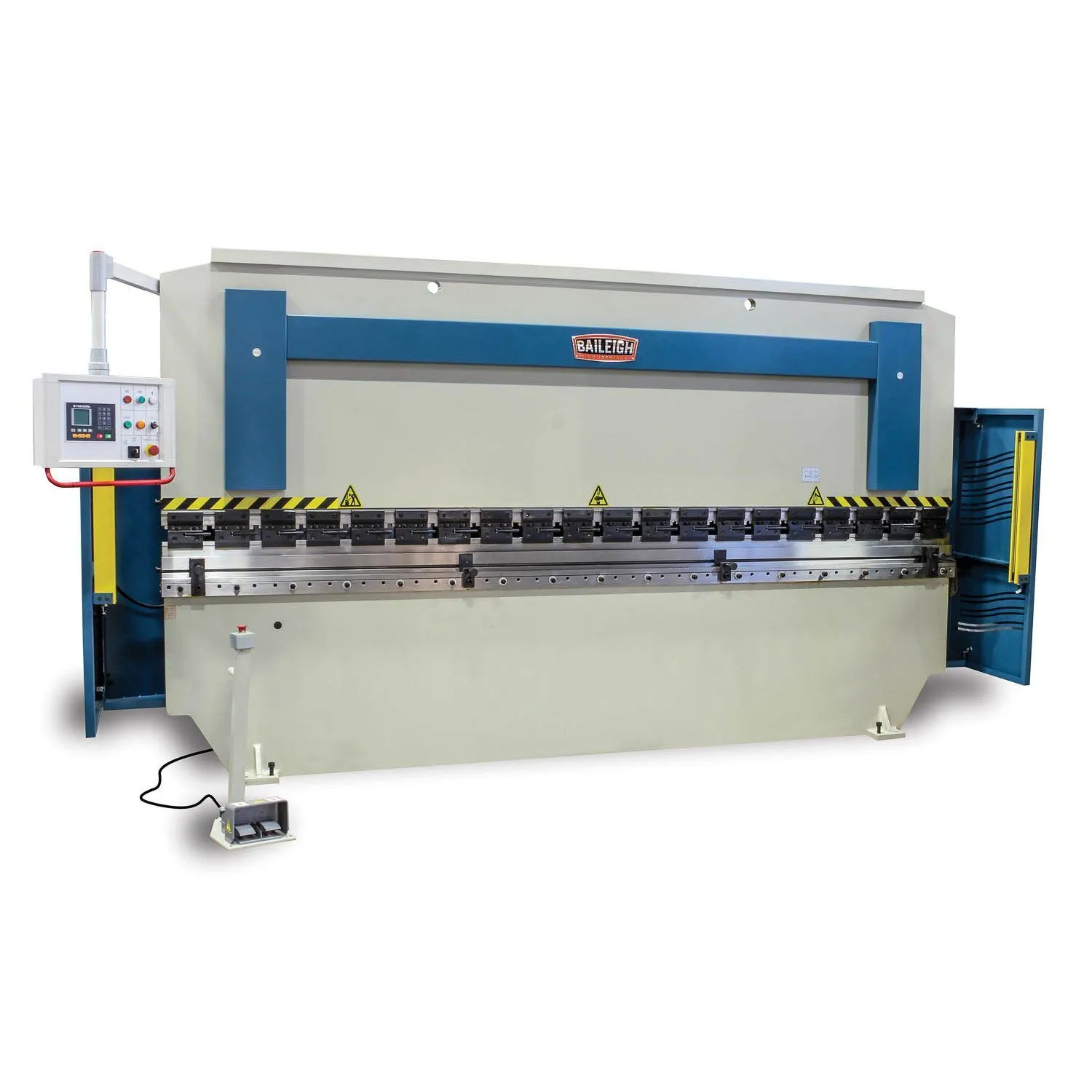

We build this BAILEIGH BP-14010CNC 10-foot industrial press brake using reliable components from Germany and Japan and a rigid all-steel frame. The programmable controller is simple to learn. Delivers 140 tons of pressure and 10-foot length (125 in.). Runs on 220-volt 3-phase power.

Specs
Pressure/Tonnage
140 T
127.006 t
Table Length
125"
3,175 mm
Throat Depth
12.5"
317.5 mm
# Axis
2
2
Bending Length
125"
3,175 mm
Return Speed
2.4 in/sec.
59.9 mm/sec.
Approach Speed
2 in/sec.
50.8 mm/sec.
Distance Between Housings (In.)
102/124 in.
102/124 in.
Distance From Table To Ram
15.3"
388.62 mm
Stroke Distance
4.7"
119.38 mm
Back Gauge Motor
1/2 HP
1/2 HP
Bending Speed
0.6 in/sec.
15.2 mm/sec.
Back Gauge Capacity
23.62"
599.95 mm
Power
220V / 3-phase
220V / 3-phase
Shipping Dimensions (L/W/H)
162 x 69 x 97 in.
162 x 69 x 97 in.
Gross Weight
16,000 lb
7,257.5 kg
Control
CNC
CNC
Dimensions
162 x 69 x 97 in.
162 x 69 x 97 in.
Weight
16000 lbs.
16000 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
