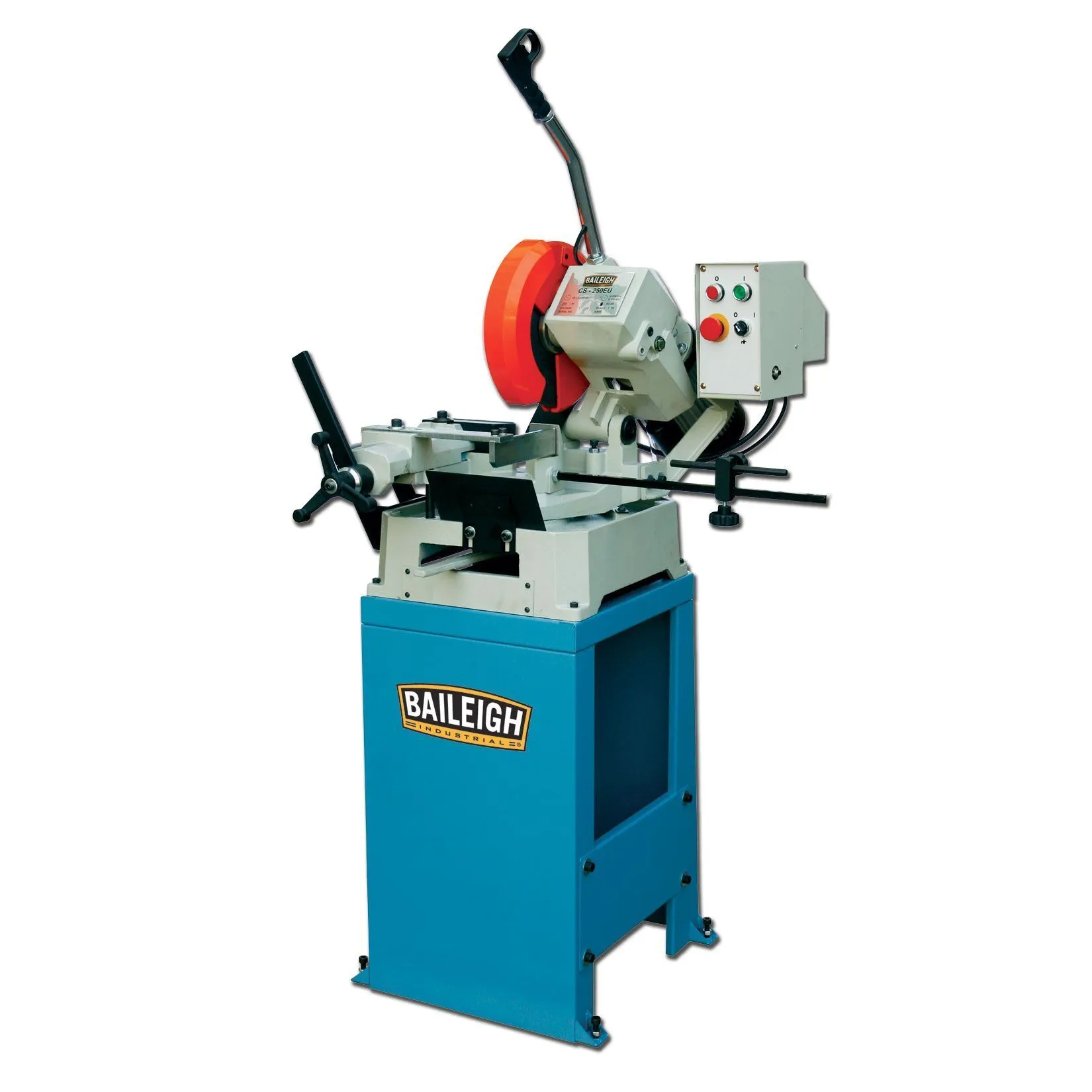

The Baileigh CS-250EU manual and portable cold saw can tackle medium production in fab shops. It takes a 10" blade (included) with a maximum capacity of 2.5" round tube at both 90° and 45°. Spins at 54 rpm and powered by 110 volts, so you can plug it into any household outlet. European-style vise, with cam lock device, makes for fast loading and unloading of material, great for production.
| Max. Blade Diameter | 10" | 254 mm |
| Tubing Round at 45° | 2.5 in. | 2.5 in. |
| Solid Round at 45° | 1.2 in. | 1.2 in. |
| Solid Round at 90° | 1.2 in. | 1.2 in. |
| Tubing Rectangle at 45° | 2.4 x 2 in. | 2.4 x 2 in. |
| Tubing Rectangle at 90° | 2.5 x 2 in. | 2.5 x 2 in. |
| Tubing Square at 45° | 2.1 x 2.1 in. | 2.1 x 2.1 in. |
| Tubing Square at 90° | 2.5 in. | 2.5 in. |
| Blade Speed | 54 RPM | 54 RPM |
| Motor | 1 HP | 1 HP |
| Voltage | 110v | 110v |
| Vise Style | Single Action with Cam Lock | Single Action with Cam Lock |
| Coolant System | Yes | Yes |
| Weight | 390 lbs. | 390 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
