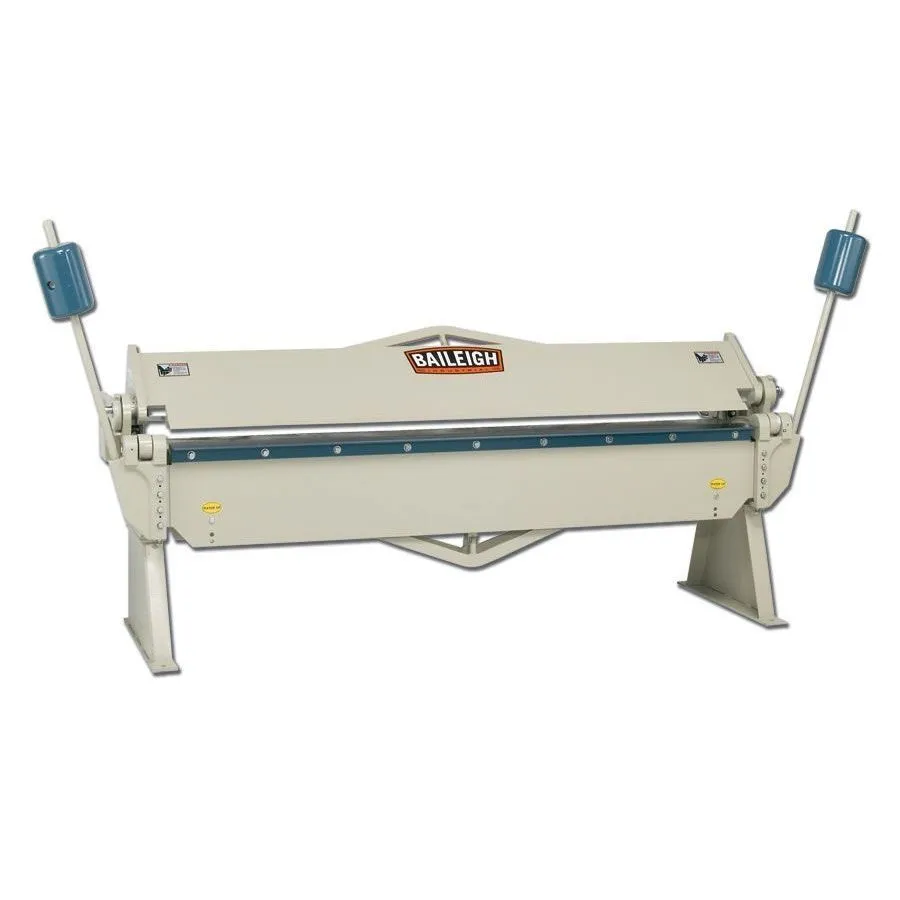

The Baileigh HB-9616 metal brake’s heavy-duty steel frame can bend 8-foot-wide sheet metal without trouble or distortion. Recommended for: HVAC shops or fabrication shops that need to bend full 4 x 8 sheets of light-gauge sheet metal. Bends 16-gauge (or lighter) mild steel sheet metal with ease.
| Capacity (ga) Mild Steel | 16 gauge | 16 gauge |
| Bending Length | 8' | 2.4 m |
| Bending Length | 96" | 2,438.4 mm |
| Bending Angle | 0 – 135° | 0 – 135° |
| Beam Adjustment | 1" | 25.4 mm |
| Power | Manual | Manual |
| Shipping Dimensions L/W/H | 122 x 33 x 40 in. | 122 x 33 x 40 in. |
| Shipping Weight | 2,270 lb | 1,029.7 kg |
| Dimensions | 122 x 33 x 40 in. | 122 x 33 x 40 in. |
| Weight | 2270 lbs. | 2270 lbs. |
Prop 65: Cancer and Reproductive Harm
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
