NEW BAILEIGH BA9-1004720
USD $46,199.00
Overview
Description

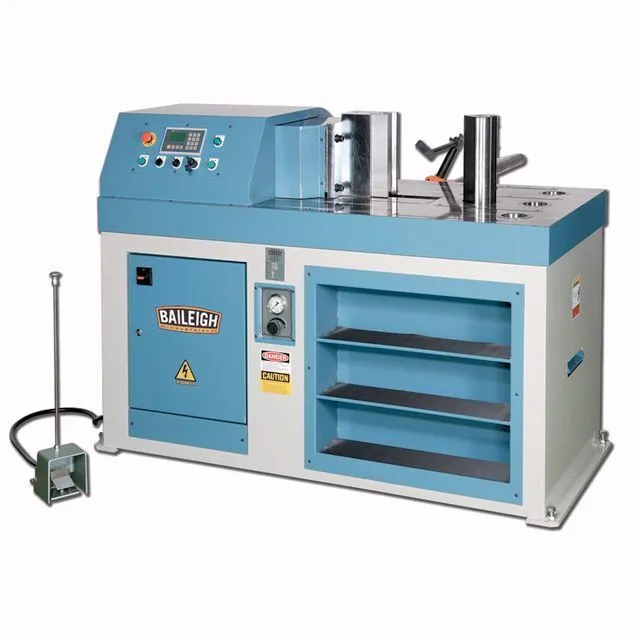

This Baileigh horizontal press brake can save time and money, since material lies on the table and stays square. The HPB-78NC industrial hydraulic press brake can shear, bend, punch, and straighten. Recommended for making parts that are thick, but not wide (die size is limited).
Specifications
| Pressure | 78 T | 70,760.5 kg |
|---|---|---|
| Approach Speed (in./sec) | 1.7 in/sec. | 42.9 mm/sec. |
| Stroke Length | 13.78" | 350.01 mm |
| Punch Work Height | 11.81" | 299.97 mm |
| Fixture Holes | (1) @ 4.646 in. dia. / (3) @ 3.268 in. dia. | (1) @ 4.646 in. dia. / (3) @ 3.268 in. dia. |
| Motor | 7.5 HP | 7.5 HP |
| Phase | 3-Phase | 3-Phase |
| Voltage | 220v | 220v |
| Minimum Return Speed (In./Sec) | 0.6 in/sec. | 14 mm/sec. |
| Table Height | 37.4" | 949.96 mm |
| Shipping Dimensions (L x W x H) | 81 x 38 x 61 in. | 81 x 38 x 61 in. |
| Shipping Weight | 4,580 lb | 2,077.5 kg |
| Dimensions | 81 x 38 x 61 in. | 81 x 38 x 61 in. |
| Weight | 4580 lbs. | 4580 lbs. |
Prop 65: Cancer and Reproductive Harm
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
