Running on 220 volt single phase power the Baileigh Industrial LF-20 is great for making Pittsburgh joints on sheet metal up to 20 gauge . Using approximately 1" of material for each lock, the LF-20 has pocket depth ranges from 5/16" to 3/8", so material waste is kept to a minimum.
| Capacity | 20 ga. (Mild Steel) | 20 ga. (Mild Steel) |
| Depth of Pocket | .314" up to .375" (Adjustable) | .314" up to .375" (Adjustable) |
| Power | 1 hp | 0.7 kW |
| Electical | 220v, 1-Phase | 220v, 1-Phase |
| Feeding Speed | 25 feet/min | 25 feet/min |
| Shipping Dimensions | 48 x 45 x 48 in. | 48 x 45 x 48 in. |
| Shipping Weight | 410 lb | 186 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

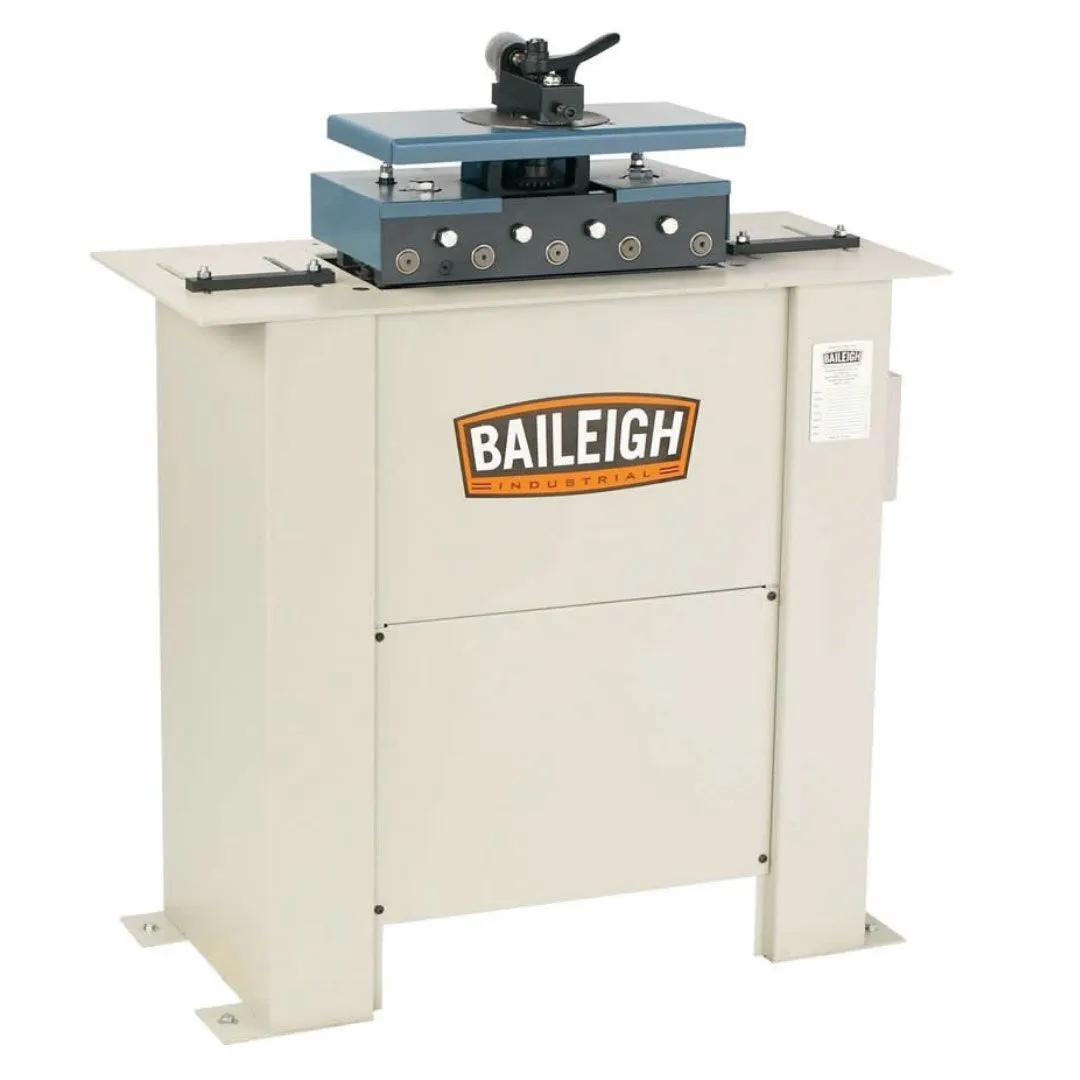

*Shown with optional flange attachment
