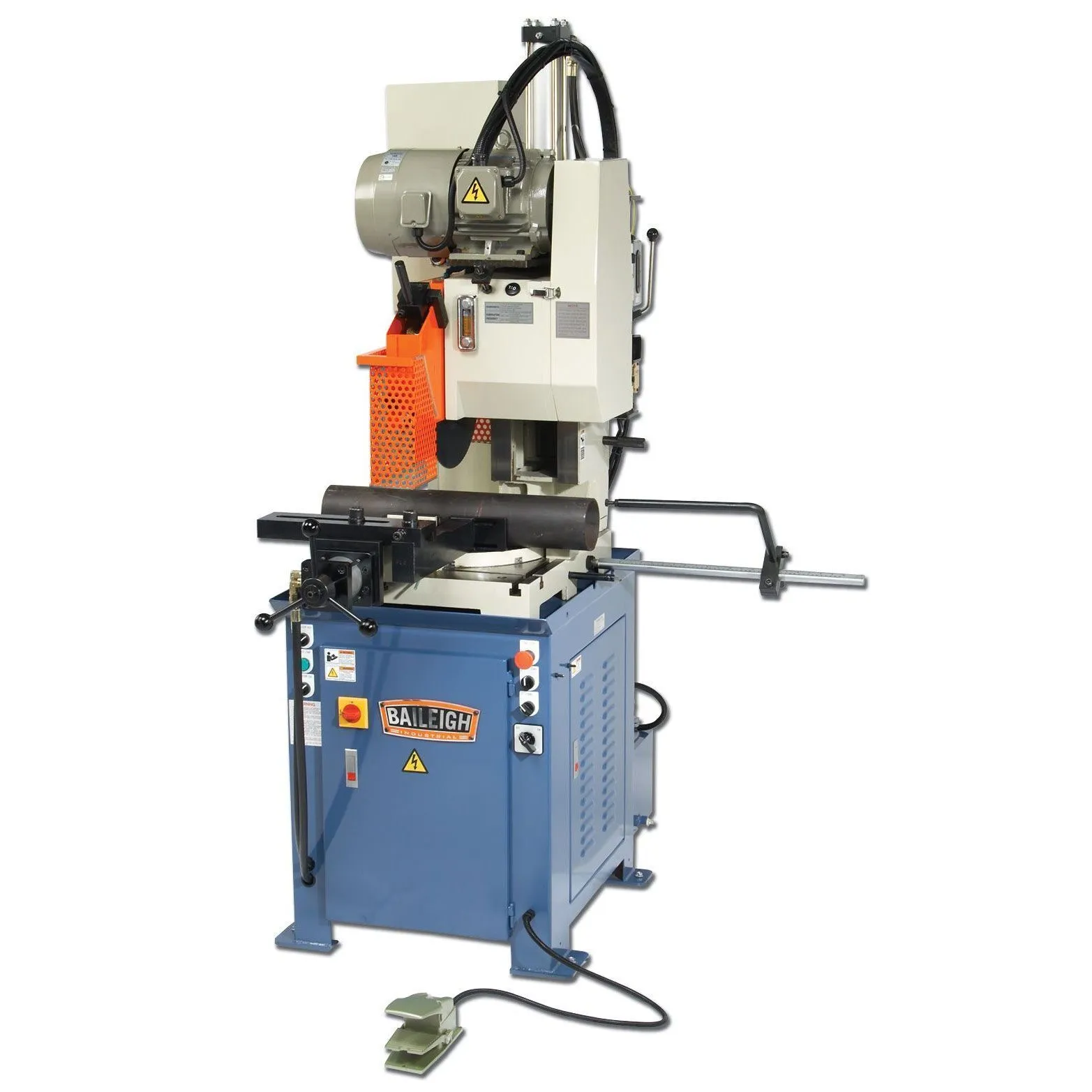

The Baileigh CS-C485SA Semi-Automatic Cold Saw accepts up to a 16.5" blade. Miters 45° left and 60° right, perfect for tubing, angle iron, and channel applications. Yaskawa inverter drive controls the variable speed from 40 to 240 rpm. 5 hp blade motor runs on 220-volt 3-phase power.
| Max. Blade Diameter | 17 - 14 in. standard | 17 - 14 in. standard |
| Round Solid at 45° | 2.36 in. | 2.36 in. |
| Round Solid at 90° | 2.75 in. | 2.75 in. |
| Round Tube at 45° | 4.5 in. | 4.5 in. |
| Round Tube at 90° | 2.75 in. | 2.75 in. |
| Square Tube at 45° | 3.93 x 3.93 in. | 3.93 x 3.93 in. |
| Square Tube at 90° | 4.33 x 4.33 in. | 4.33 x 4.33 in. |
| Rectangle Tube at 45° | 3.93 x 1.96 in. | 3.93 x 1.96 in. |
| Rectangle Tube at 90° | 4.72 x 1.96 in. | 4.72 x 1.96 in. |
| Power | 220v, 3-phase | 220v, 3-phase |
| Coolant System | Yes | Yes |
| Head Style | Column | Column |
| Arbor Size | 1.26" | 32.004 mm |
| Vice Style | Single Action | Single Action |
| Max. Vice Opening | 6" | 152.4 mm |
| Head Miter | 45° Left / 30° Right | 45° Left / 30° Right |
| Country of Manufacture | Taiwan | Taiwan |
| Shipping Dimensions | 58 x 33 x 88 in. | 58 x 33 x 88 in. |
| Shipping Weight | 1,898 lb | 860.9 kg |
| Weight | 1898 lbs. | 1898 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
