New | in-Stock

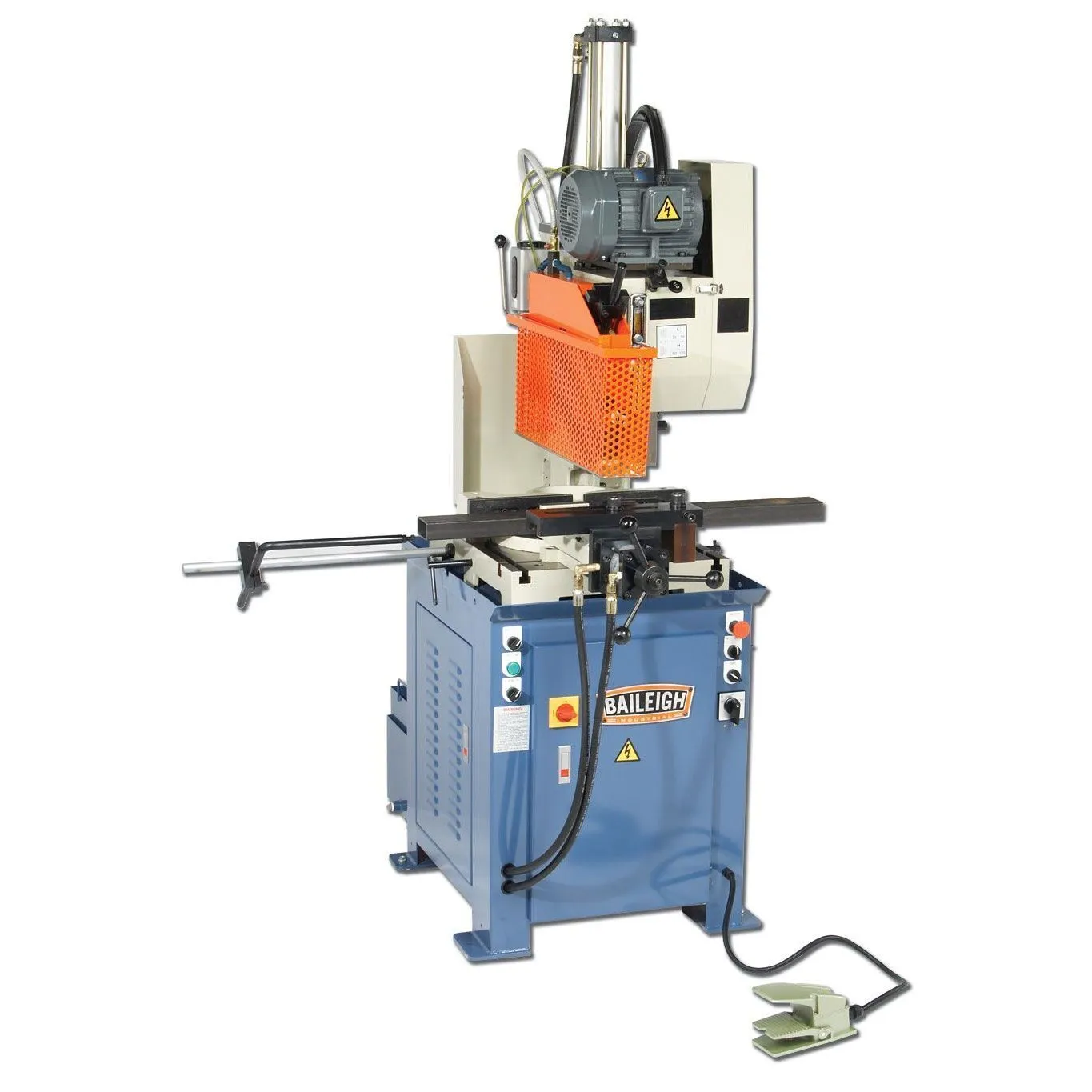

NEW BAILEIGH CS-C425SA

Florida, United States
Asking Price
USD $28,764.00
1 available
3,882Listings|10Followers
Overview
Circular Cold Saws

The Baileigh CS-425SA Semi-Automatic Column Coldsaw Accepts a maximum 17" blade. Miters 45° left and 60° right, perfect for angle iron and channel. You can switch between 4 cutting speeds (35, 60, 70, and 120 rpm) to fit your material. 5 hp blade motor runs on 220-volt 3-phase power.

Specs
Max. Blade Diameter
17 - 14 in. standard
17 - 14 in. standard
Round Solid at 45°
2.36 in.
2.36 in.
Round Solid at 90°
2.75 in.
2.75 in.
Round Tube at 45°
4.5 in.
4.5 in.
Round Tube at 90°
4.92 in.
4.92 in.
Square Tube at 45°
3.93 x 3.93 in.
3.93 x 3.93 in.
Square Tube at 90°
4.33 x 4.33 in.
4.33 x 4.33 in.
Rectangle Tube at 45°
3.93 x 1.96 in.
3.93 x 1.96 in.
Rectangle Tube at 90°
4.72 x 1.96 in.
4.72 x 1.96 in.
Power
220v, 3-phase
220v, 3-phase
Blade Speed
Four-Speeds, 35 / 70 and 60 / 120 rpm
Four-Speeds, 35 / 70 and 60 / 120 rpm
Coolant System
Yes
Yes
Head Style
Column
Column
Arbor Size
1.26"
32.004 mm
Vice Style
Single Action
Single Action
Max. Vice Opening
6"
152.4 mm
Head Miter
45° Left / 30° Right
45° Left / 30° Right
Country of Manufacture
Taiwan
Taiwan
Shipping Dimensions
58 x 33 x 84 in.
58 x 33 x 84 in.
Shipping Weight
1,870 lb
848.2 kg
Weight
1870 lbs.
1870 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
