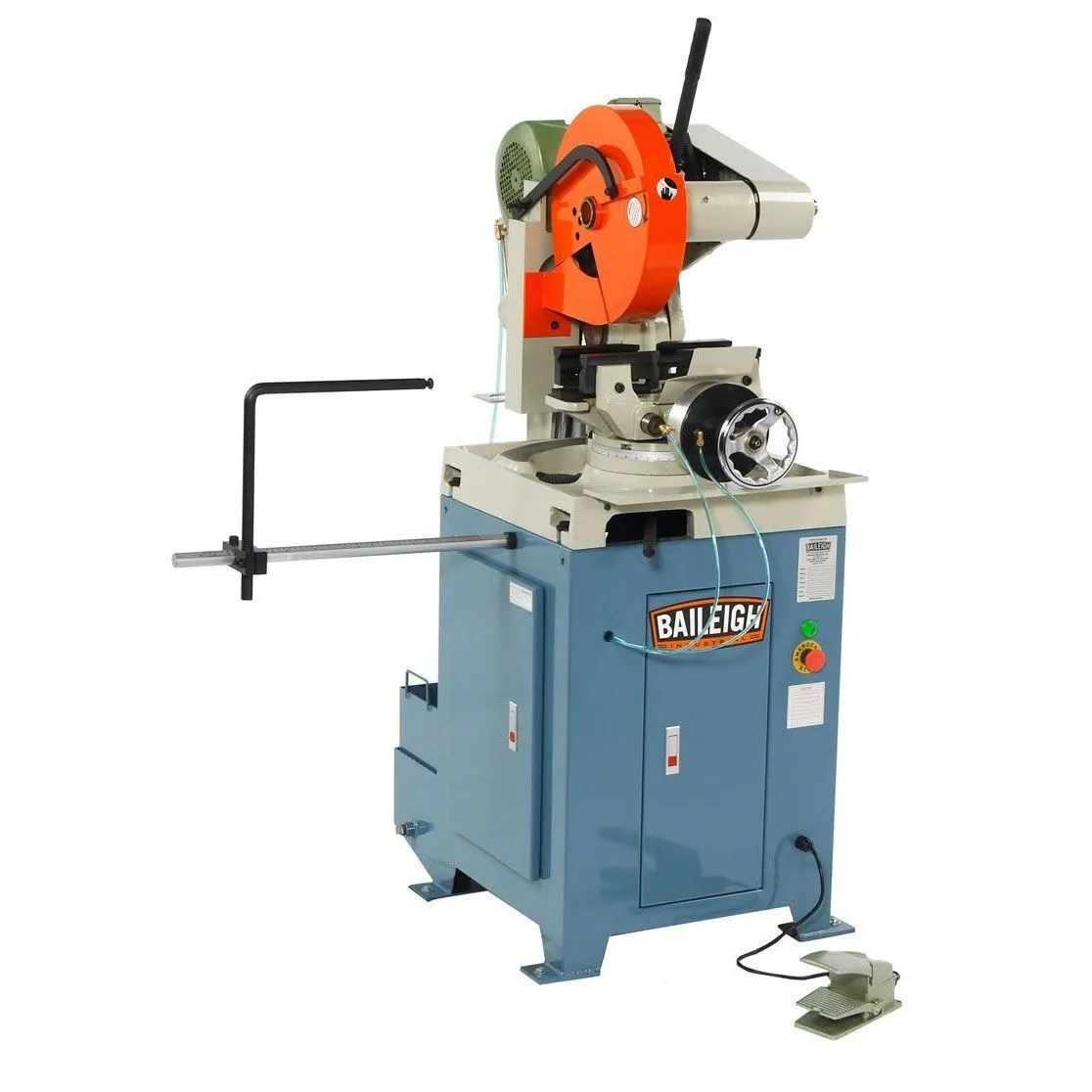

NEW BAILEIGH CS-355SA

Florida, United States
Asking Price
USD $16,994.00
1 available
3,831Listings|9Followers
Overview
High Speed Circular Saws (non-ferrous)

The Baileigh CS-355SA semi-automatic cold saw runs at a high speed to make cuts with ripple-free edges every time. Accepts up to a 14” blade. Turns at 3,200 rpm, perfect for cutting soft metals known for gumming up blades. Maximum capacity of 4.25” round tube at 90°. Miters 45° right and 90° left. 5.5 hp high-speed motor runs on 220-volt 3-phase power.

Specs
Material Type
Non-Ferrous
Non-Ferrous
Max Blade Diameter
14"
355.6 mm
Round Solid at 45°
1.575 in.
1.575 in.
Round Solid at 90°
2.362 in.
2.362 in.
Round Tube at 45°
2.953 in.
2.953 in.
Round Tube at 90°
4.331 in.
4.331 in.
Square Tube at 45°
2.953 x 2.953 in.
2.953 x 2.953 in.
Square Tube at 90°
4.25 x 4.25 in.
4.25 x 4.25 in.
Rectangle Tube at 45°
2.953 x 2.362 in.
2.953 x 2.362 in.
Rectangle Tube at 90°
4.25 x 3.5 in.
4.25 x 3.5 in.
Motor
5.5 HP
5.5 HP
Power
220v, 3-phase
220v, 3-phase
Blade Speed
3,200 RPM
3,200 RPM
Coolant System
Yes
Yes
Head Style
Pivot
Pivot
Arbor Size
1"
25.4 mm
Vice Style
Dual Action, Self Centering
Dual Action, Self Centering
Max. Vice Opening
6.5"
165.1 mm
Head Miter
90° Slotting, 45° Left / 45° Right
90° Slotting, 45° Left / 45° Right
Slotting Capable
Yes, Left and Right
Yes, Left and Right
Shipping Dimensions
60 x 44 x 48 in.
60 x 44 x 48 in.
Shipping Weight
798 lb
362 kg
Weight
798 lbs.
798 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
