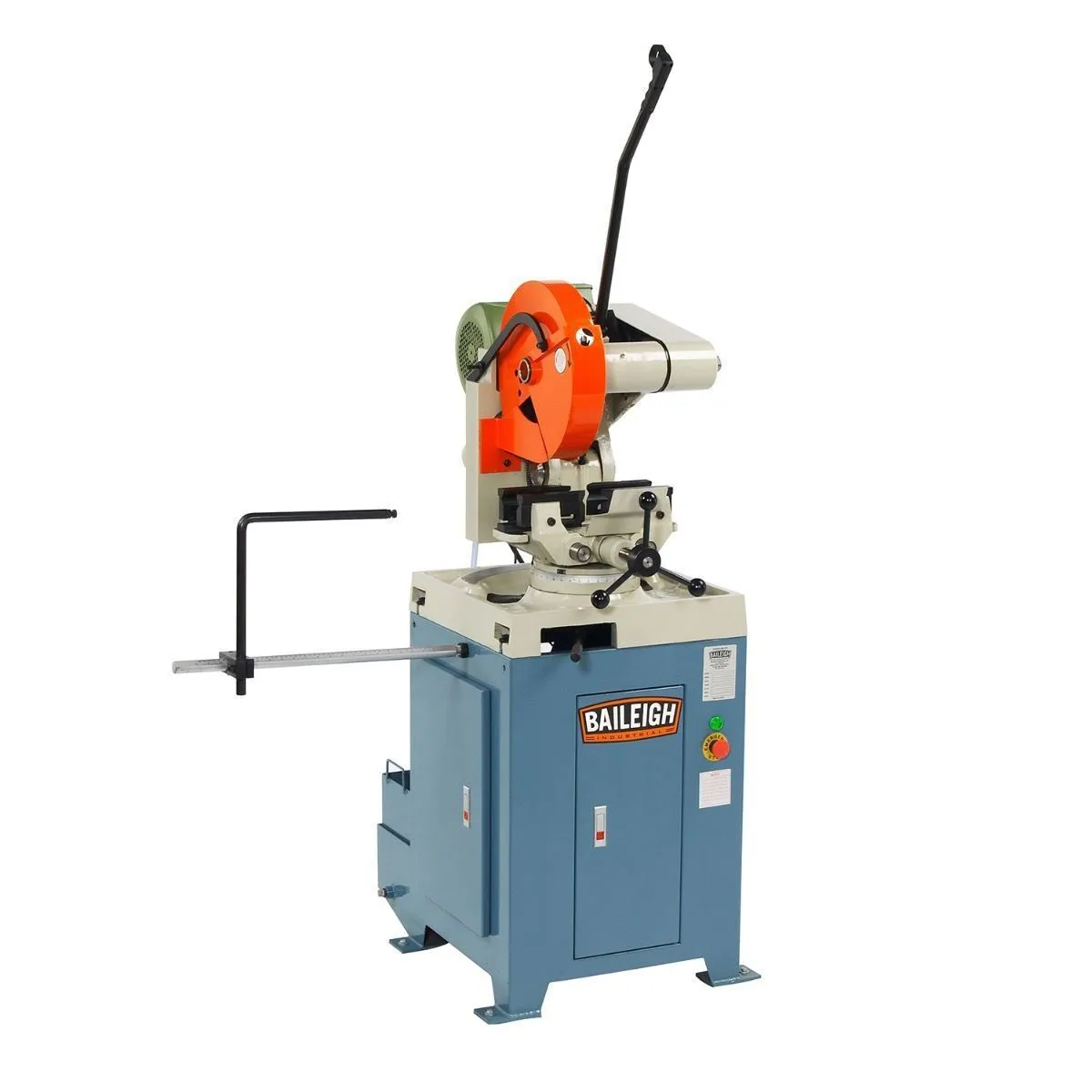

The Baileigh CS-355M Manual Cold Saw accepts up to 14" blade. Maximum capacity of 4.25" round tube at 90°. Miters 45° right and 90° left, great for slotting applications. 5.5 hp motor drives a belt pulley system to achieve maximum RPMs as efficiently as possible. Runs on 220-volt 3-phase power.
| Max. Blade Diameter | 14" | 355.6 mm |
| Tubing Round at 90° | 4.25 in. | 4.25 in. |
| Solid Round at 45° | 1.575 in. | 1.575 in. |
| Solid Round at 90° | 2.362 in. | 2.362 in. |
| Tubing Rectangle at 45° | 2.953 x 2.362 in. | 2.953 x 2.362 in. |
| Tubing Rectangle at 90° | 4.25 x 3.5 in. | 4.25 x 3.5 in. |
| Tubing Square at 45° | 2.953 x 2.953 in. | 2.953 x 2.953 in. |
| Tubing Square at 90° | 4.331 in. | 4.331 in. |
| Blade Speed | 3,200 RPM | 3,200 RPM |
| Motor | 5.5 HP | 5.5 HP |
| Voltage | 220v, 3-phase | 220v, 3-phase |
| Vise Style | Self-centering American-style | Self-centering American-style |
| Weight | 850 lbs. | 850 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
