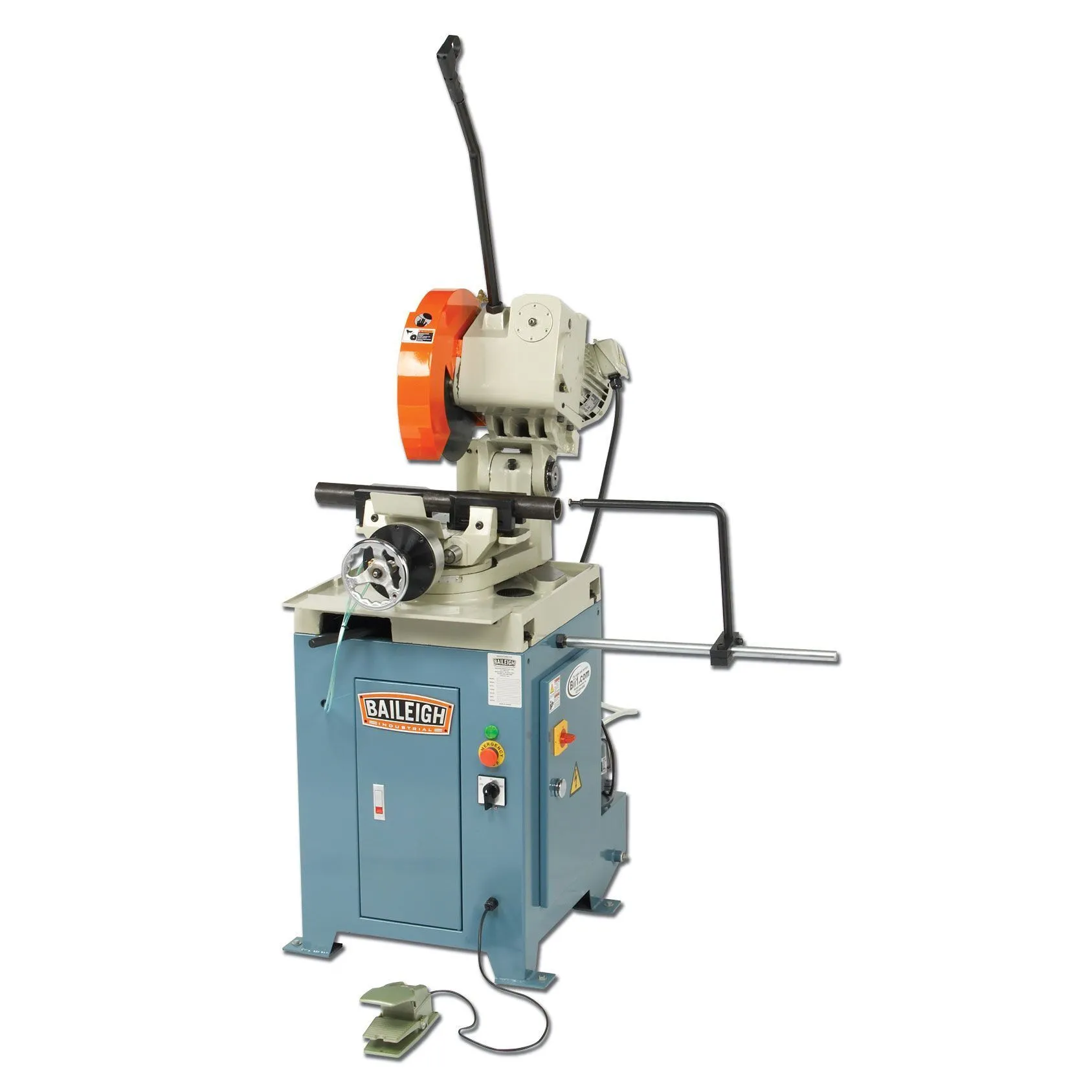

The Baileigh CP-350P manual metal cutting cold saw offers a foot pedal-controlled pneumatic vise to solve that problem and speed up production. It accepts a 14" blade. Maximum capacity of 4.25" round tube at 90°.
| Max. Blade Diameter | 14" | 355.6 mm |
| Tubing Round at 90° | 4.25 in. | 4.25 in. |
| Solid Round at 45° | 1.575 in. | 1.575 in. |
| Solid Round at 90° | 2.362 in. | 2.362 in. |
| Tubing Rectangle at 45° | 2.953 x 2.362 in. | 2.953 x 2.362 in. |
| Tubing Rectangle at 90° | 4.25 x 3.5 in. | 4.25 x 3.5 in. |
| Tubing Square at 45° | 2.953 x 2.953 in. | 2.953 x 2.953 in. |
| Tubing Square at 90° | 4.331 in. | 4.331 in. |
| Blade Speeds | 2 blade speeds: 26 or 52 rpm | 2 blade speeds: 26 or 52 rpm |
| Motor | 4 / 3 HP | 4 / 3 HP |
| Voltage | 220v, 3-phase | 220v, 3-phase |
| Vise Style | Air-Powered | Air-Powered |
| Coolant System | Yes | Yes |
| Weight | 850 lbs. | 850 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
