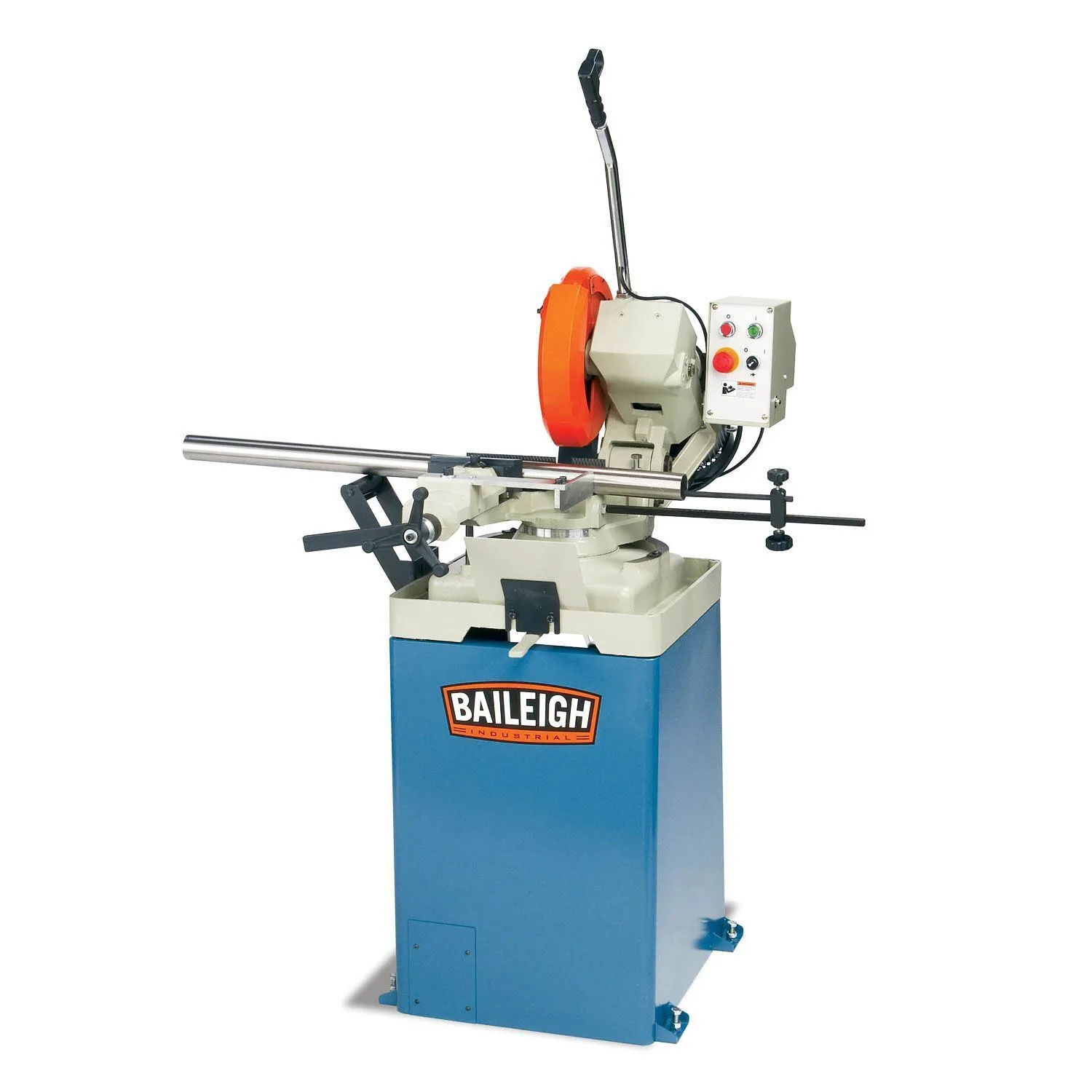

The Baileigh CS-315EU manual circular cold saw runs on 220-volt 1-phase 60Hz power and accepts a 12.5" blade (included) with a 3.5" round tube capacity at 90°. Miters 45° to the left and right and spins at 52 rpm to cut through solids, tubing, or pipe.
| Max. Blade Diameter | 12.5" | 317.5 mm |
| Tubing Round at 90° | 3.5 in. | 3.5 in. |
| Solid Round at 45° | 2 in. | 2 in. |
| Solid Round at 90° | 2 in. | 2 in. |
| Tubing Rectangle at 45° | 3.25 x 2.75 in. | 3.25 x 2.75 in. |
| Tubing Rectangle at 90° | 4 x 2.75 in. | 4 x 2.75 in. |
| Tubing Square at 45° | 3.2 x 3.2 in. | 3.2 x 3.2 in. |
| Tubing Square at 90° | 3.5 in. | 3.5 in. |
| Blade Speed | 52 RPM | 52 RPM |
| Motor | 2.5 HP | 2.5 HP |
| Voltage | 220v, 1-phase | 220v, 1-phase |
| Head Miter | 45° to the left and right | 45° to the left and right |
| Vise Style | Single Action with Cam Lock | Single Action with Cam Lock |
| Weight | 440 lbs. | 440 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
