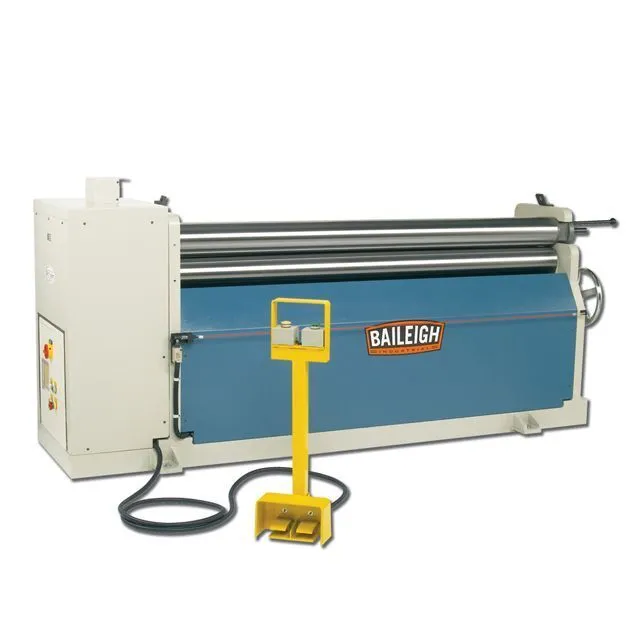

NEW BAILEIGH PR-609

Florida, United States
Asking Price
USD $36,739.00
1 available
3,882Listings|10Followers
Overview
Plate Bending Rolls including Pinch

Brand new BAILEIGH PR-609 plate roll with 72" roll length and 9-gauge mild steel capacity. Featuring a 3-roll initial pinch setup, 220V power, and a hydraulic adjustment system. Ideal for precise bends at 4.7 RPM. Perfect for industrial applications.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
72"
1.8 m
Max Thickness
0.1495"
3.7973 mm
Capacity - Mild Steel
9 gauge
9 gauge
Capacity - Mild Steel
0.15"
3.81 mm
# Rolls
3
3
Upper Roll Diameter
5.91"
150.11 mm
Minimum Forming Diameter
8.86"
225.04 mm
Roll Adjustment Back
Hydraulic
Hydraulic
Roll Speed
4.7 RPM
4.7 RPM
Power
3 hp
2.2 kW
Voltage
220V
220V
Phase
3-phase
3-phase
Shipping Dimensions (L / W / H)
114" x 32" x 52"
114" x 32" x 52"
Shipping Weight
5,610 lb
2,544.7 kg
