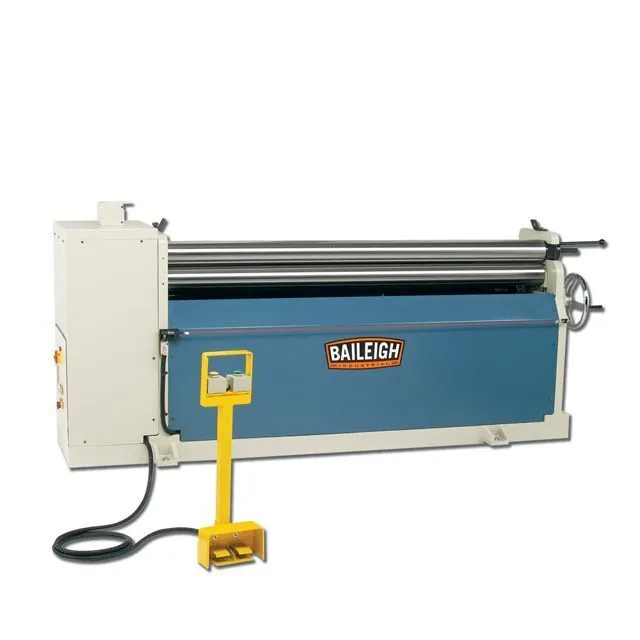

BAILEIGH PR-613, 6 ft x 13 ga. new hydraulic plate roll featuring an initial pinch design with 72" rolls and a max thickness of 0.09". Three-roll mechanism ensures precision shaping. Ideal for efficient metal forming needs.
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Length of Rolls (inch) | 72" | 1.8 m |
| Max Thickness | 0.09" | 2.286 mm |
| Capacity - Mild Steel | 13 gauge | 13 gauge |
| Capacity - Mild Steel | 0.09" | 2.286 mm |
| # Rolls | 3 | 3 |
| Driven Rolls | 3 | 3 |
| Upper Roll Diameter | 4.75" | 120.65 mm |
| Minimum Forming Diameter | 7.125" | 180.97 mm |
| Roll Adjustment Back | Hydraulic | Hydraulic |
| Power | 3 hp | 2.2 kW |
| Voltage | 220V | 220V |
| Phase | 3-phase | 3-phase |
| Shipping Dimensions (L / W / H) | 112" x 30" x 50" | 112" x 30" x 50" |
| Shipping Weight | 4,950 lb | 2,245.3 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
