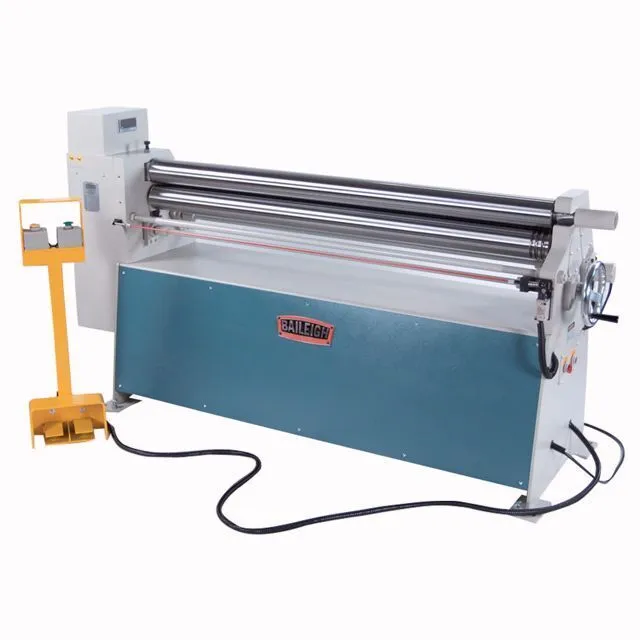

NEW BAILEIGH PR-514

Florida, United States
Asking Price
USD $22,329.00
1 available
3,882Listings|10Followers
Overview
Plate Bending Rolls including Pinch

New BAILEIGH PR-514 hydraulic plate roller, features initial pinch design with 60" roll length and 0.075" max thickness. Perfect for your plate rolling needs with 3 rolls.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
60"
1.5 m
Max Thickness
0.075"
1.905 mm
Capacity - Mild Steel
14 gauge
14 gauge
Capacity - Mild Steel
0.075"
1.905 mm
# Rolls
3
3
Upper Roll Diameter
3.5"
88.9 mm
Minimum Forming Diameter
5.25"
133.35 mm
Roll Adjustment Back
Hydraulic
Hydraulic
Roll Speed
6 RPM
6 RPM
Wire Grooves
Yes
Yes
Power
2 hp
1.5 kW
Voltage
220V
220V
Phase
1-phase
1-phase
Shipping Dimensions (L / W / H)
89" x 29" x 56"
89" x 29" x 56"
Shipping Weight
1,243 lb
563.8 kg

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
