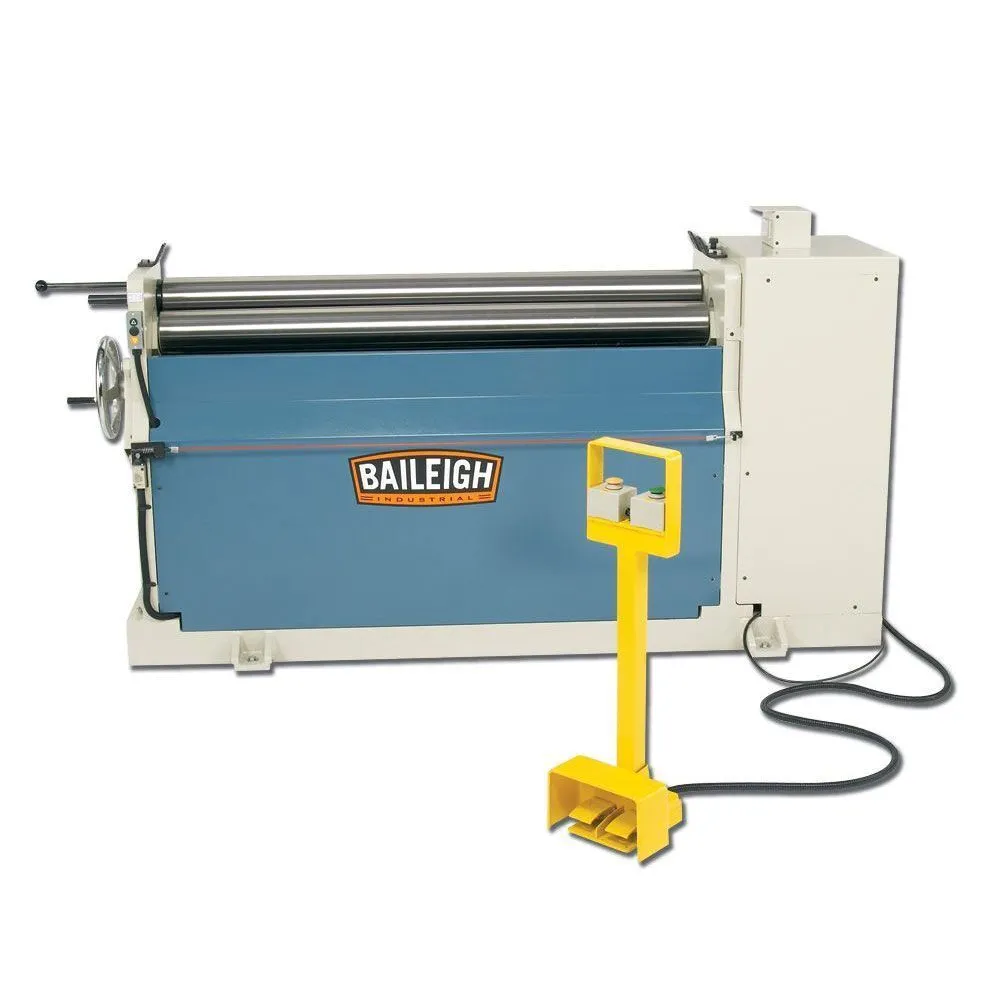

New BAILEIGH PR-510 5ft x 10 ga. Hydraulic Plate Roller, initial pinch design, with 60" rolls and 0.135" thickness capacity. Comes with optional coning attachment—price upon request. Perfect for precision metal forming tasks.
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Length of Rolls (inch) | 60" | 1.5 m |
| Max Thickness | 0.135" | 3.429 mm |
| Capacity - Mild Steel | 10 gauge | 10 gauge |
| Capacity - Mild Steel | 0.135" | 3.429 mm |
| # Rolls | 3 | 3 |
| Driven Rolls | 3 | 3 |
| Upper Roll Diameter | 4.75" | 120.65 mm |
| Minimum Forming Diameter | 7.125" | 180.97 mm |
| Roll Adjustment Back | Hydraulic | Hydraulic |
| Roll Speed | 5.8 RPM | 5.8 RPM |
| Power | 2 hp | 1.5 kW |
| Voltage | 220V | 220V |
| Phase | 3-phase | 3-phase |
| Shipping Dimensions (L / W / H) | 93" x 30" x 50" | 93" x 30" x 50" |
| Shipping Weight | 4,290 lb | 1,945.9 kg |
| Weight | 4290 | 4290 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Optional coning attachment available
