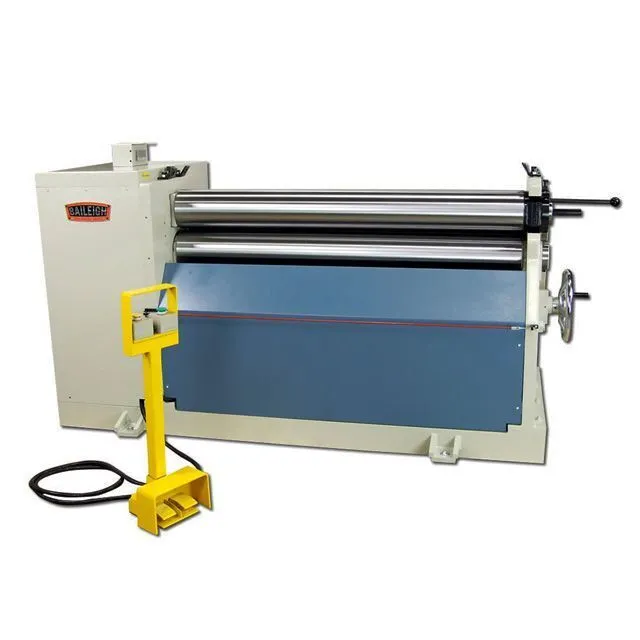

Boost your metalworking with the BAILEIGH PR-503 Hydraulic Plate Roll. This new 5ft x 1/4 in. roller features 3 rolls and an initial pinch design for precise projects. Optional coning attachment available. Transform your workshop today!
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Length of Rolls (inch) | 61' | 18.6 m |
| Max Thickness | 0.25" | 6.35 mm |
| Capacity - Mild Steel | 3 gauge | 3 gauge |
| Capacity - Mild Steel | 0.25" | 6.35 mm |
| # Rolls | 3 | 3 |
| Driven Rolls | 3 | 3 |
| Minimum Forming Diameter | 10.5" | 266.7 mm |
| Roll Adjustment Back | Hydraulic | Hydraulic |
| Roll Speed | 5 RPM | 5 RPM |
| Power | 5 hp | 3.7 kW |
| Voltage | 220V | 220V |
| Phase | 3-phase | 3-phase |
| Shipping Dimensions (L / W / H) | 98" x 36" x 56" | 98" x 36" x 56" |
| Shipping Weight | 6,380 lb | 2,893.9 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Optional coning attachment (sold separately) can create conical bends without marring the frame of the roller.
