NEW BAILEIGH PR-413

Florida, United States
Asking Price
USD $19,249.00
1 available
3,882Listings|10Followers
Overview
Plate Bending Rolls including Pinch

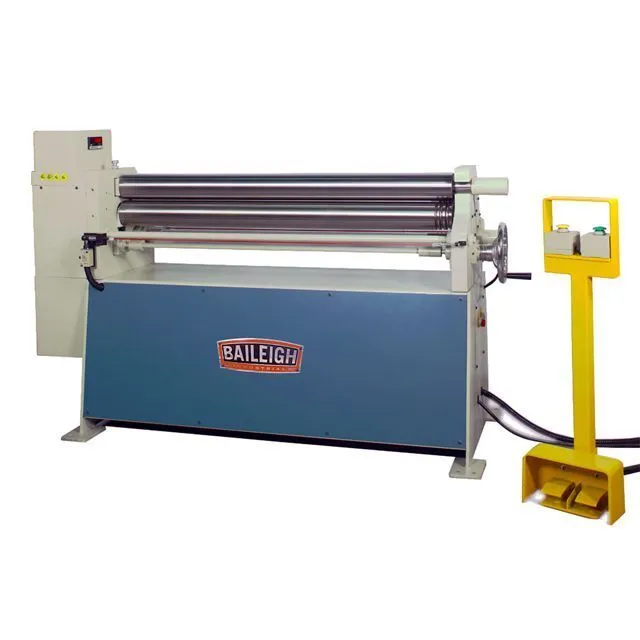

Explore precision with the BAILEIGH PR-413 Hydraulic Plate Roll. This brand-new equipment features a 4ft roll length and handles material up to 0.09" thick with its 3-roll design. Ideal for efficient, high-quality results in metal forming.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
48"
1.2 m
Max Thickness
0.09"
2.286 mm
Capacity - Mild Steel
13 gauge
13 gauge
Capacity - Mild Steel
0.09"
2.286 mm
# Rolls
3
3
Driven Rolls
3
3
Upper Roll Diameter
3.5"
88.9 mm
Minimum Forming Diameter
5.25"
133.35 mm
Roll Adjustment Back
Hydraulic
Hydraulic
Roll Speed
6 RPM
6 RPM
Wire Grooves
Yes
Yes
Digital Postition Readout
Yes
Yes
Power
2 hp
1.5 kW
Voltage
220V
220V
Phase
1-phase
1-phase
Shipping Dimensions (L / W / H)
75" x 29" x 46"
75" x 29" x 46"
Shipping Weight
1,254 lb
568.8 kg

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
