New | in-Stock

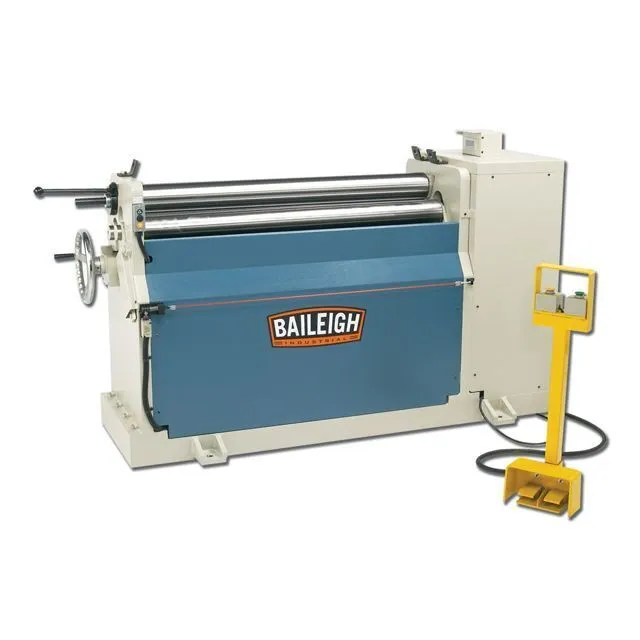

NEW BAILEIGH PR-409

Florida, United States
Asking Price
USD $25,519.00
1 available
3,882Listings|10Followers
Overview
Plate Bending Rolls including Pinch

Discover the BAILEIGH PR-409, a new hydraulic plate roll featuring a 48" roll length and 0.15" max thickness with initial pinch design. Ideal for precision tasks, upgrade with an optional coning attachment for enhanced versatility.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
48"
1.2 m
Max Thickness
0.15"
3.81 mm
Capacity - Mild Steel
9 gauge
9 gauge
Capacity - Mild Steel
0.15"
3.81 mm
# Rolls
3
3
Driven Rolls
3
3
Upper Roll Diameter
4.75"
120.65 mm
Minimum Forming Diameter
7.125"
180.97 mm
Roll Adjustment Back
Hydraulic
Hydraulic
Roll Speed
5.8 RPM
5.8 RPM
Wire Grooves
Yes
Yes
Power
2 hp
1.5 kW
Voltage
220V
220V
Phase
3-phase
3-phase
Dimensions
60" x 37" x 11"
60" x 37" x 11"
Weight
3,740 lbs
3,740 lbs

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:
An optional coning attachment is available for the PR-409 hydraulic plate roller
