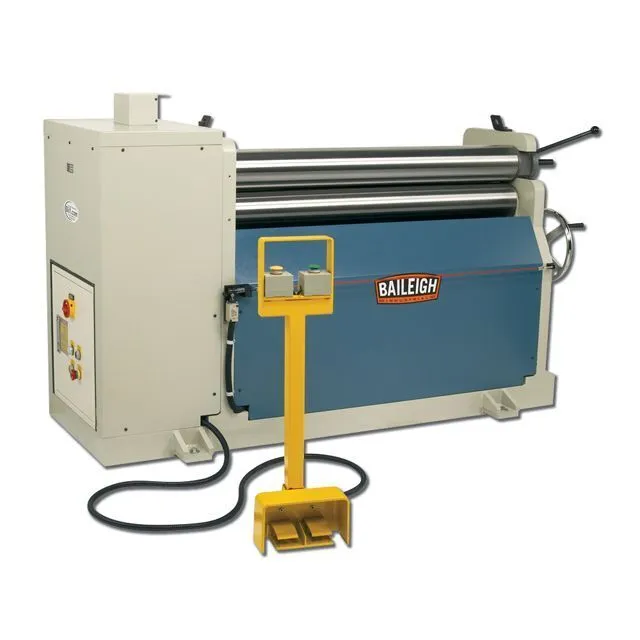

New BAILEIGH PR-403, a hydraulic plate roll with 48" roll length. Designed for precision, it handles up to 0.25" thickness with its 3-roll initial pinch setup. Perfect for your sheet metal forming needs.
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Length of Rolls (inch) | 48" | 1.2 m |
| Max Thickness | 0.25" | 6.35 mm |
| Capacity - Mild Steel | 3 gauge | 3 gauge |
| Capacity - Mild Steel | 0.25" | 6.35 mm |
| # Rolls | 3 | 3 |
| Driven Rolls | 3 | 3 |
| Upper Roll Diameter | 5.91" | 150.11 mm |
| Minimum Forming Diameter | 8.86" | 225.04 mm |
| Roll Adjustment Back | Hydraulic | Hydraulic |
| Roll Speed | 4.7 RPM | 4.7 RPM |
| Power | 3 hp | 2.2 kW |
| Voltage | 220V | 220V |
| Phase | 3-phase | 3-phase |
| Dimensions | 83" x 32" x 52" | 83" x 32" x 52" |
| Weight | 4,180 lbs | 4,180 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
