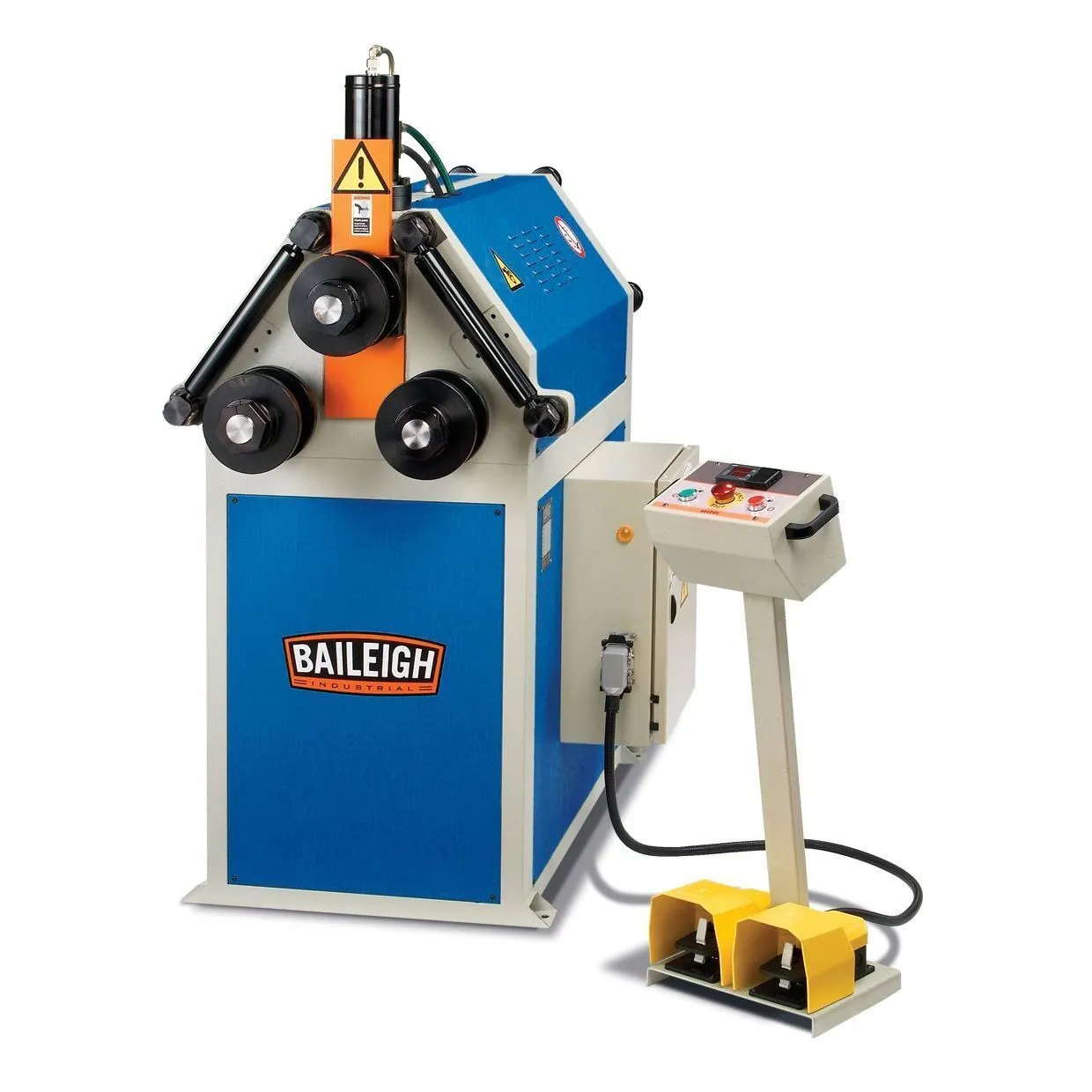

You can operate the BAILEIGH R-H55 programmable Ring Roller on its back for horizontal bending of large radii or in the vertical position for smaller diameters. This Angle Ring Roller runs on 220-volt 3-phase power. Bend up to 2.75" round tubing with a .083 wall.
| Angle Roll Type | Hydraulic | Hydraulic |
| Motor Power | 5 HP | 5 HP |
| Power | 220-volt 3-phase | 220-volt 3-phase |
| Driven Rolls | 3 | 3 |
| Round Tube Capacity | 2.75 in. with a .083 in. wall | 2.75 in. with a .083 in. wall |
| Digital Readout | Yes | Yes |
| Weight | 1,320 lbs. | 1,320 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
