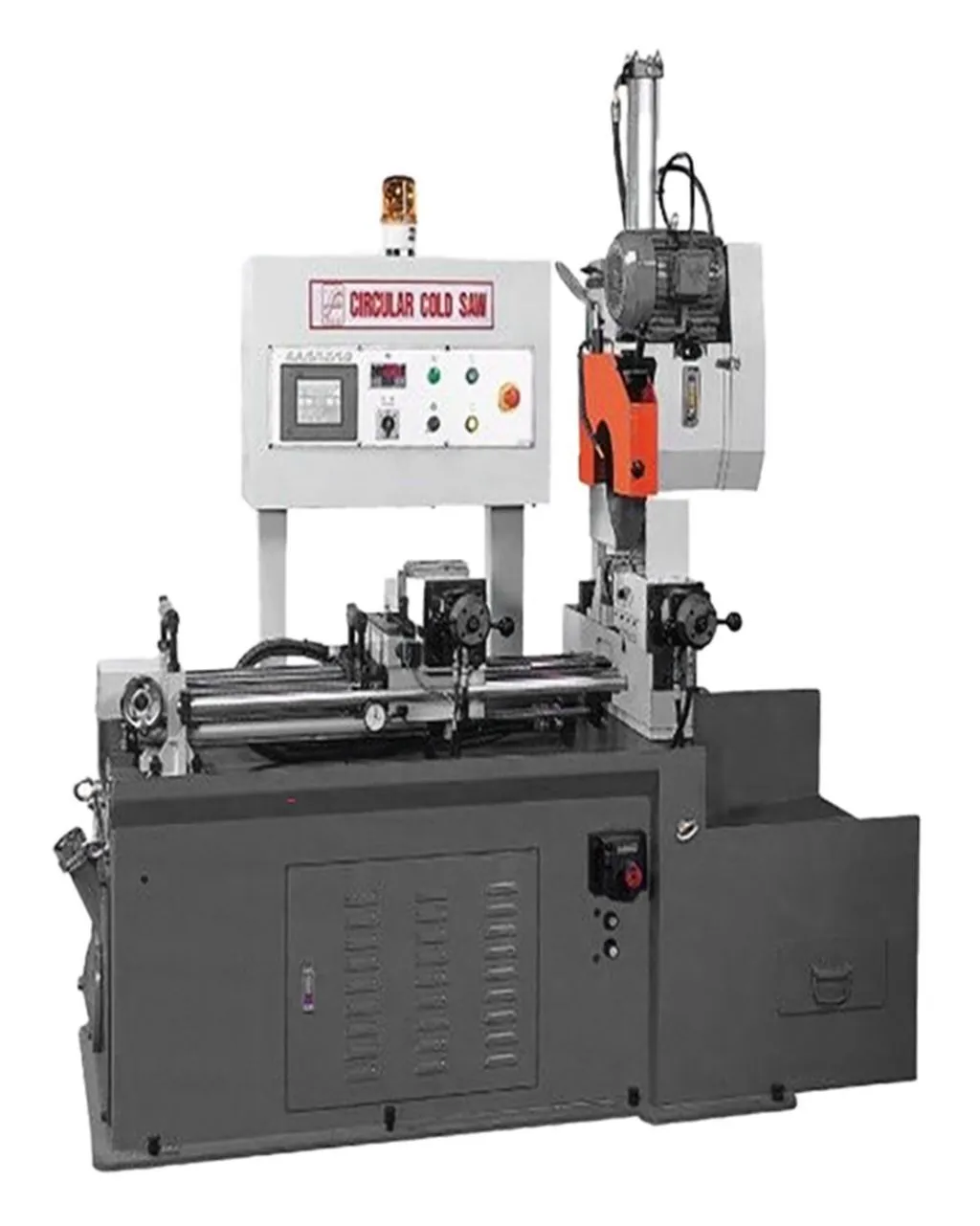

NEW 2025 CLAUSING KALAMAZOO FHC475AV

Introducing the new 2025 Clausing Kalamazoo FHC475AV Circular Cold Saw. A 14" blade powered by 5 hp, featuring an automatic cutting cycle, two-speed gearbox, and a flood coolant system. Ideal for cutting tubes and solids up to 4.33".

Specifications:

Machine Style..........Automatic
Drive Type..........Gear Box w/ Worm Gear
Barfeed Stroke w/multiple stroke (inch)..........0.19 to 77
Maximum Capacity Round Tube 90 (in)..........4.33
Maximum Capacity Square Tube 90 (in)..........3.93
Rectangular Tube 90 (inch)..........4.33 x 1.97
Round Solid 90 (inch)..........2.36
Square Solid 90 (inch)..........1.97
Cutting Angles..........90 only
Voltage..........230 or 460
Phase..........3
Coolant System..........Yes
Blade Width (inch)..........(.118)
Blade Length Size Diameter (inch)..........14
Blade Speeds (RPM)..........26 and 52
Maximum Vise Opening (inch)..........4.5
2 Speed Motor Horsepower..........3 and 5
Hydraulic Motor Horsepower..........3
Machine Size (LxWxH inch)..........77 x 51 x 79
Machine Weight (lbs.)..........3,080

Machine Features:
• Totally enclosed fan-cooled motor
• Enclosed worm gear drive for trouble-free operation
• Two speed motor 2 speed gearbox for Versatility
• 3 Hp Hydraulic system
• Automatic cutting cycles
• Automatic feed rate cycles
• Self-Centering Vise
• Flood Coolant System
• Foot pedal cycle start
• Heavy Duty Sheet Metal Base
• Interlocking door guards
• One general purpose circular saw blade
• Two Year Limited Warranty
