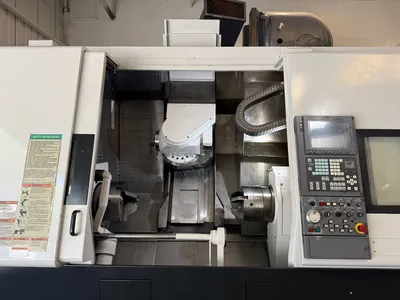

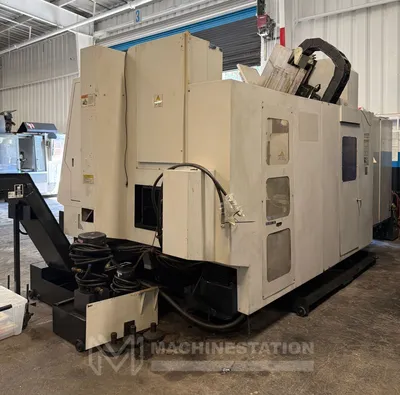

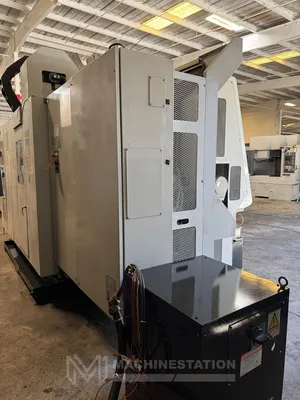

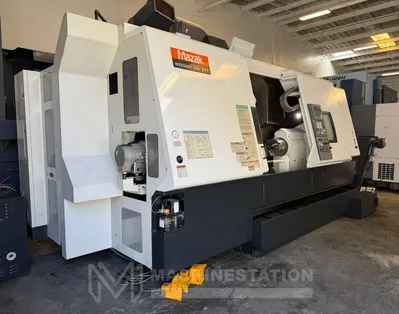

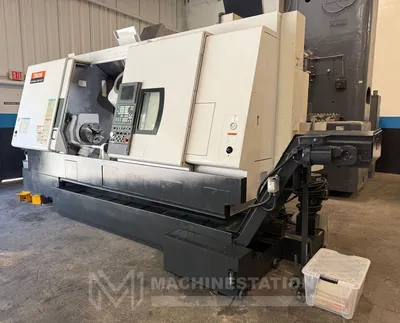

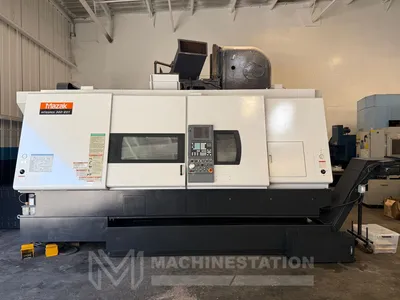

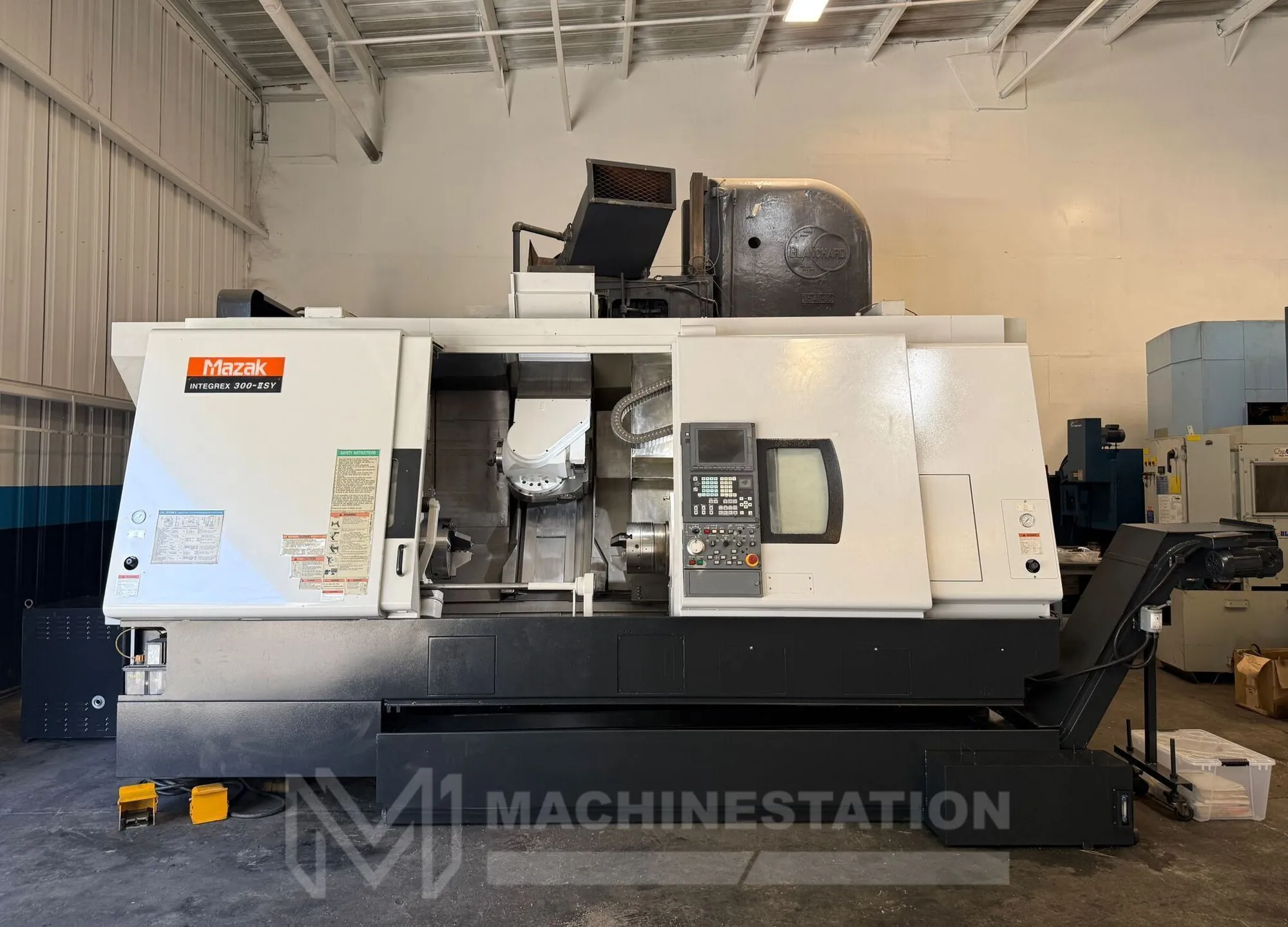

USED 2002 MAZAK INTEGREX 300II-SY

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

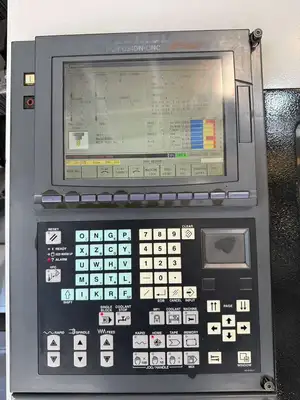

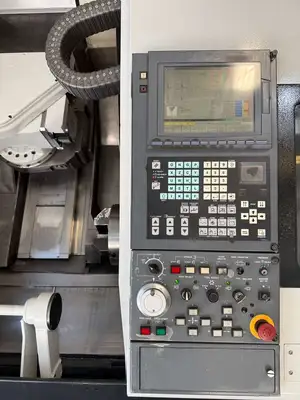

Mazatrol Fusion 640MT CNC Control
4,666 Hours Cutting Time
Rigid Tapping
Coolant System

Capacity:
Max Turning Diameter: 30″
Max Turning Length: 60″
Max Bar Capacity: 3.46″
Swing Over Bed: 30.0″
Distance Between Centers: 60″

Travels:
X Axis Travel: 24.80″
Y Axis Travel: 9.06″ (+/-4.53″)
Z Axis Travel: 62.40″
W Axis Travel (Sub Spindle): 60.24″
B Axis Travel: 225 Degree
C Axis: 360 Degree (0.001 Degree)
X Rapid Traverse Rate: 1181 Inch Per Minute
Y Rapid Traverse Rate: 591 Inch Per Minute
Z Rapid Traverse Rate: 1181 Inch Per Minute

Main Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 4.1″
Main Spindle Speed: 35 – 3500 RPM
Main Spindle Motor: 40 HP

Sub Spindle:
Sub Spindle Nose: A2-8
Sub Spindle Bore: 3.1″
Sub Spindle Speed: 35 – 3500 RPM
Sub Spindle Motor: 30 HP

Milling Head:
Single Station Pendulum Head with 40 ATC
Tool Type: Capto C6
Spindle Speed: 15-10,000 RPM
Spindle Motor: 25 HP
Spindle 90° Index Time: 0.5 sec

General:

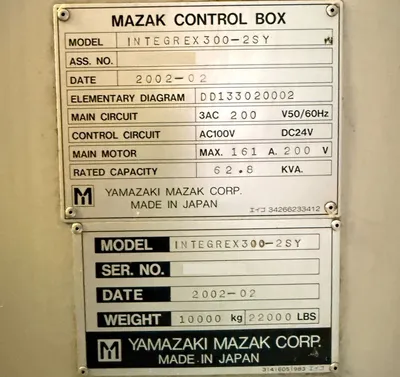

Power Source: AC 200 V, Three Phase, 50/60 Hz
Power Requirement: 62.8 Kva
Overall Dimensions: 193.4″ x 93.0″ x 110.2″ High Approx.
Weight: 22,000 lbs Approx.

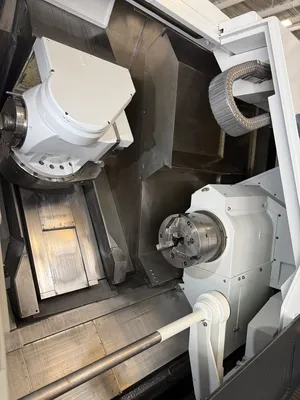

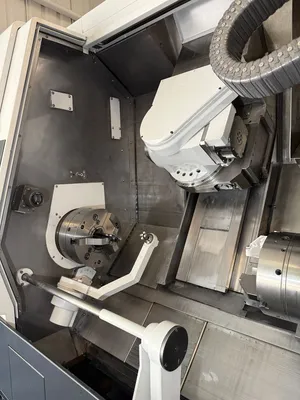

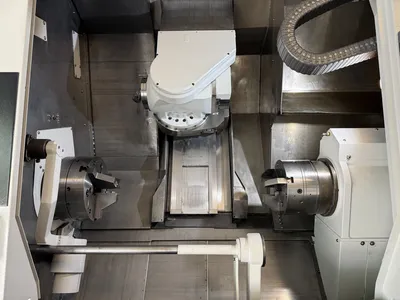

10,000 RPM Pendulum Milling Head
40 Station Tool Magazine

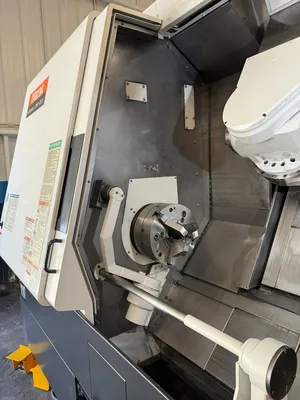

Sub Spindle
Full C-Axis on Both Spindles
Y Axis Capability

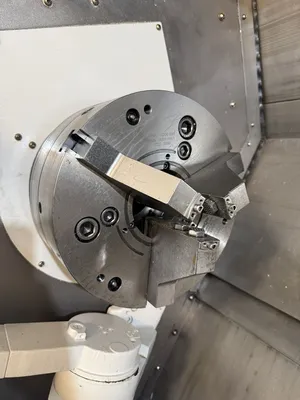

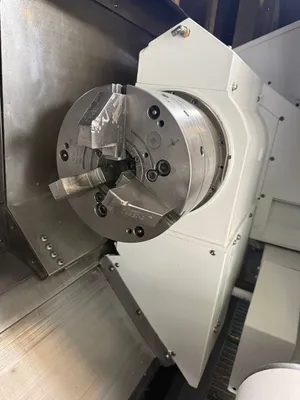

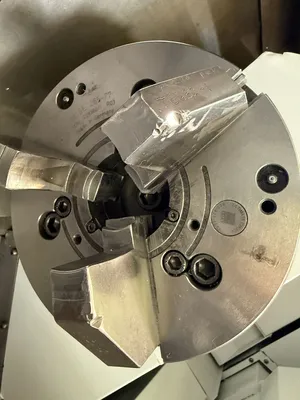

12.4″ 3-Jaw Chuck on Main Spindle
10.4″ 3-Jaw Chuck on Sub Spindle
Tool Presetter
Part Cather

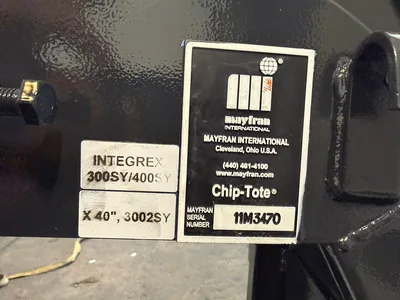

Chip Conveyor

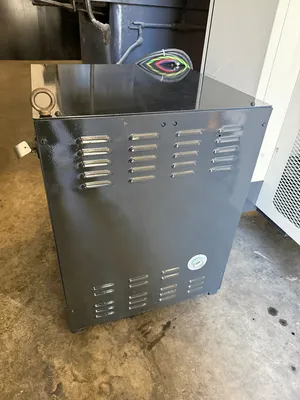

Transformer
Foot Switches
Books and Manuals
