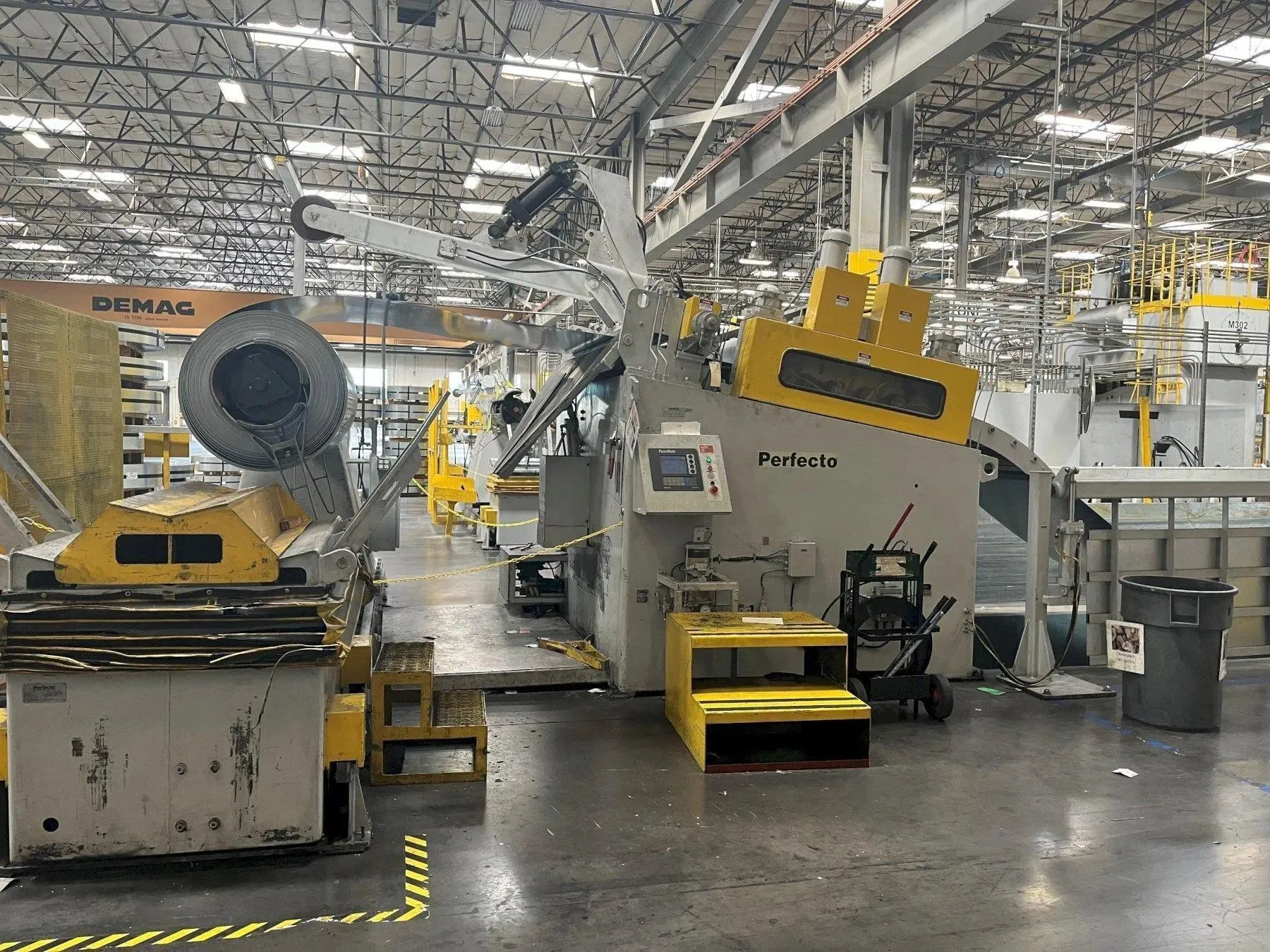

USED 2000 PERFECTO RS30-7272 / 55-72-7
Overview
Description
Perfecto Coil Feed Line 30,000 Lbs. x 72" Wide x .218" (.500" thick x 14" Wide)
Specifications
| Coil Weight Capacity | 30,000 lb | 13,607.8 kg |
|---|---|---|
| Stock Width Capacity | 72" | 1,828.8 mm |
| Max Stock Thickness Capacity at Full Width | 0.218" | 5.5372 mm |
| Minimum Expansion Range | 19" | 482.6 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
Coil Weight Capacity: 30,000 lbs
Model: S387207
Model Number: RS30-7272 / 55-72-7 / 700-72
Year of Manufacture: 2000
Coil Width Capacity: 72”
Stock Thickness Capacity: 72” wide x .218” thick material
Max. Capacity: 14” wide x 0.500” thick material
Coil I.D. Range: 19-24”
Coil O.D.: 72”
Feed Direction: Left to Right
Equipped With
Perfecto Coil Reel Model No. RS30-7272
Three leaf mandrel with hydraulic expansion
Air brake for adjustable tensioning
Jog drive for threading
Traveling coil load car
Powered lift and travel
Perfecto Coil Straightener Model No. 55-72-7
Seven straightening rolls x 5.5" diameter
Motorized straightening roll adjustments
Back up support rollers on upper and lower straightening rolls
Entry and exit pinch rolls
Motorized edge guides
Coil hold down and peeler station
Automatic lubrication system
Operator's controls
Loop control
Perfecto Dual Sided Exit Threading Tables
Perfecto Servo Feed Model No 700-72
Piloting upper feed roll
Motorized stock width edge guides
Entry cascade loop support rollers
Anti Back Up Rolls
Cabinet base mounted
Motorized pass line adjustment
AC Servo controls
(2025) All new machine interconnection wiring, cables and conduit installed and included
(2025) New laser loop control installed and included
