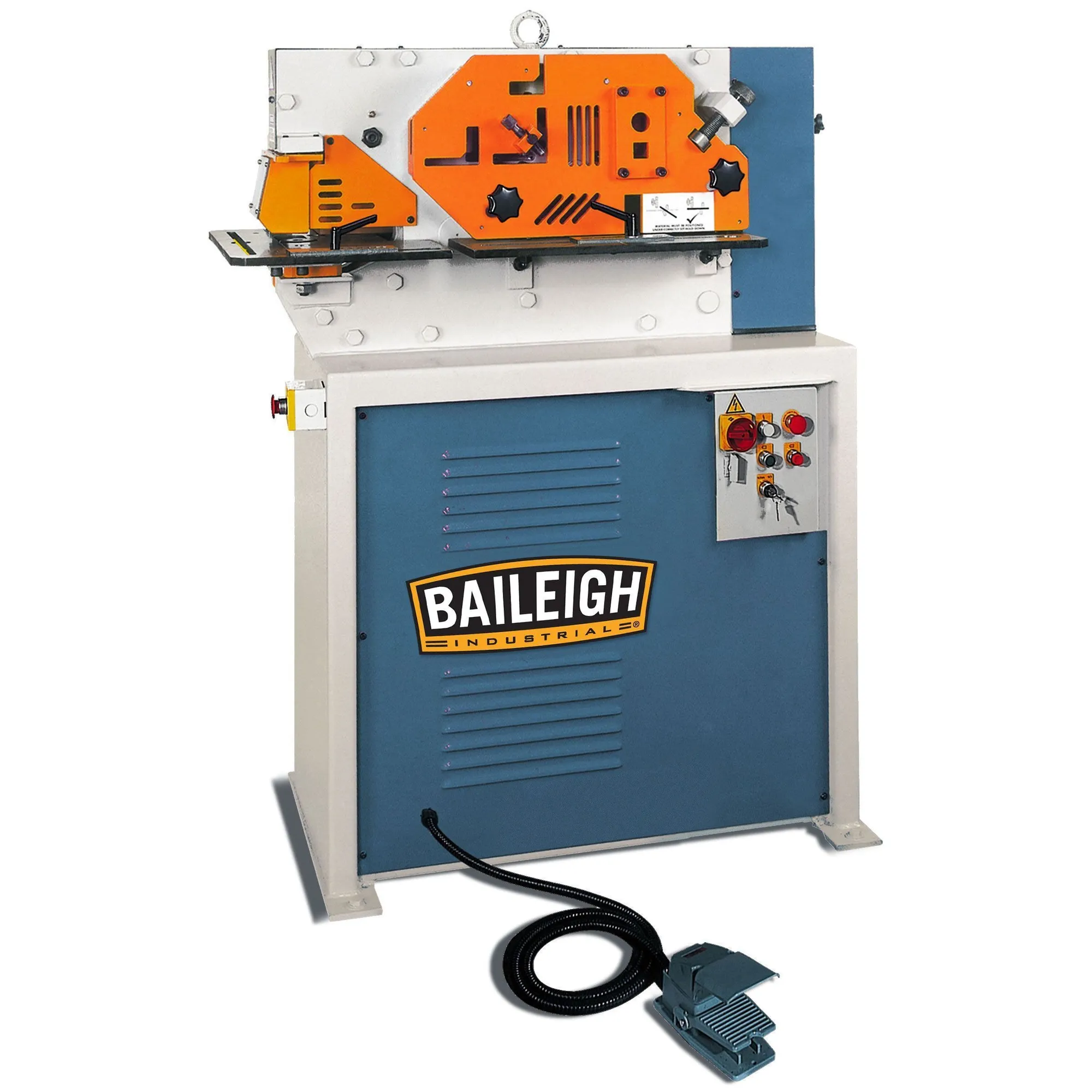

NEW BAILEIGH SW-443

Florida, United States
Asking Price
USD $10,097.00
1 available
3,831Listings|9Followers
Overview
Ironworkers

The Baileigh SW-443 Hydraulic Ironworker includes just about every feature you’d want to help you shear and punch smoothly. Runs on 220-volt 3-phase power. Delivers 44 tons of force for punching and shearing.

Specs
Punch Tonnage
44 T
39,916.2 kg
Punch Max. Capacity
.75 x .625 in.
.75 x .625 in.
Flat Bar Shear
7.87 x .5 in.
7.87 x .5 in.
Angle Shear 90°
3 x 3 x .25 in.
3 x 3 x .25 in.
Round Bar Shear
1.125 in.
1.125 in.
Square Bar Shear
1 x 1 in.
1 x 1 in.
Bar Shearing - Working Height
44.88 in.
44.88 in.
Angle Shearing - Working Height
40 in.
40 in.
Flat Shearing - Working Height
42.32 in.
42.32 in.
Width x Thickness
13.77 x .25 in.
13.77 x .25 in.
Diameter x Thickness
1.5 x .375 in.
1.5 x .375 in.
Angle Flange Trim
3.14 x .393 in.
3.14 x .393 in.
Blade Length
13.87"
352.3 mm
Throat Depth
6.88"
174.75 mm
Stroke Length
1.125 in. (Max)
1.125 in. (Max)
Electrics
220v, 3-Phase
220v, 3-Phase
Cycles / Min.
23
23
Dimensions
49 x 26 x 55 in.
49 x 26 x 55 in.
Weight
1,320 lbs.
1,320 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
