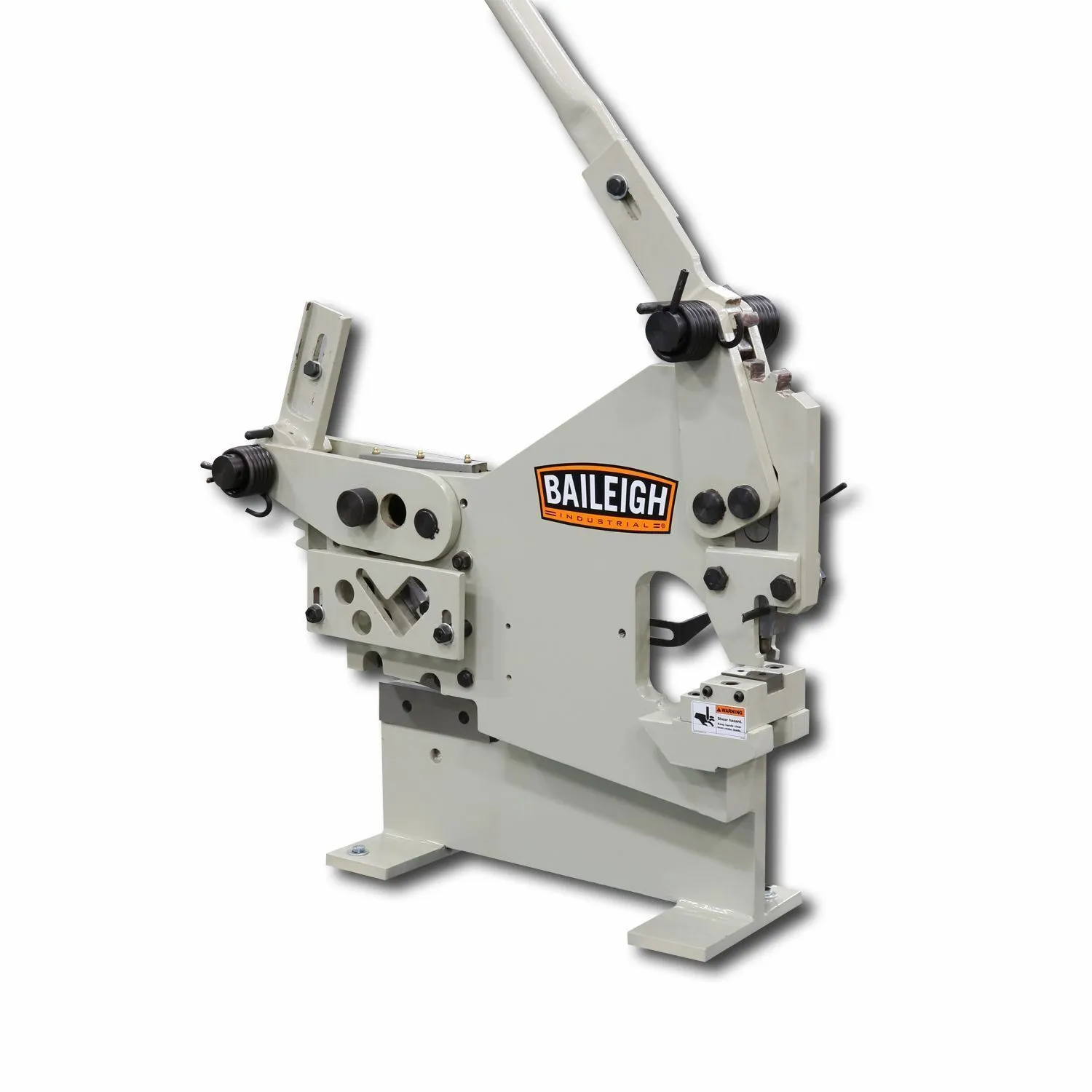

The versatile SW-22M-P combines the capabilities of 2 machines, the manual sheet metal punch HP-160 and the manual ironworker SW-22M, in one. This solidly-built manual punching and shearing machine will save space in any small shop.
| Punch Max. Capacity | .314 in. | .314 in. |
| Shear Capacity Flat | 4 x 5/16 in. | 4 x 5/16 in. |
| Shear Capacity Angle Iron | 2-3/8 x 1/4 in. | 2-3/8 x 1/4 in. |
| Shear Capacity Plate | 1/4 in. | 1/4 in. |
| Shear Capacity Round | 0.625" | 15.875 mm |
| Shear Capacity Square | 0.625" | 15.875 mm |
| Throat Depth | 6.25" | 158.75 mm |
| Electrics | Manual | Manual |
| Dimensions | 39 x 16 x 26 in. | 39 x 16 x 26 in. |
| Weight | 300 lbs. | 300 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
