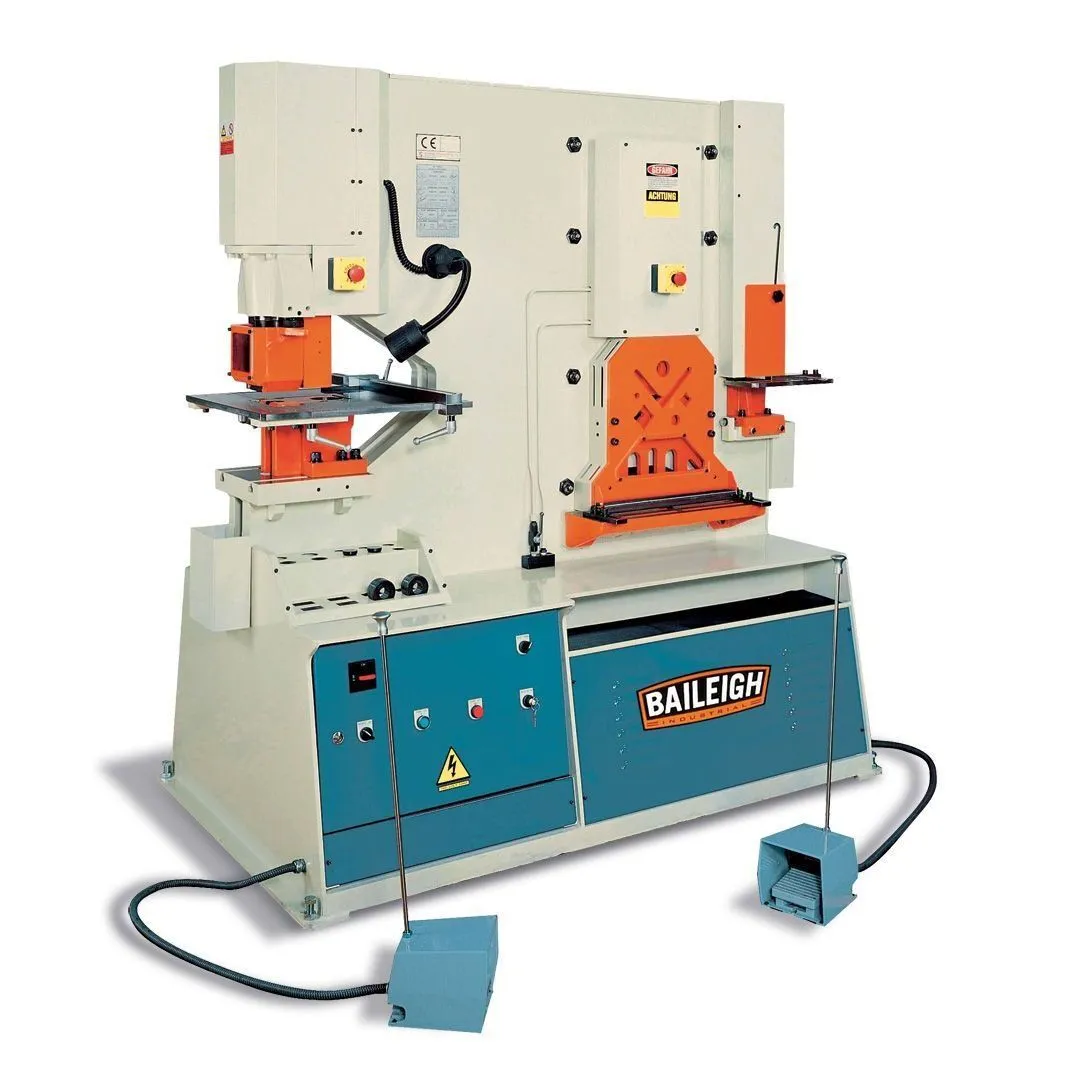

The Baileigh SW-95 hydraulic ironworker enables 2 operators to work independently at any of the machine’s 5 stations. Plus, the machine’s pure vertical movement minimizes distortion and delivers clean cuts every time. Runs on 220-volt 3-phase power. 95 tons of punching pressure and a whopping 123 tons of shearing and notching force.
| Punch Tonnage | 95 T | 86,182.7 kg |
| Punch Max. Capacity | 1.062 x .875 in. | 1.062 x .875 in. |
| Flat Bar Shear | 16 x .75 in. | 16 x .75 in. |
| Angle Shear 90° | 5.125 x 5.125 x .5 in. | 5.125 x 5.125 x .5 in. |
| Rectangle Notcher | 2 x 3.5 x .5 in. (W x D x T) | 2 x 3.5 x .5 in. (W x D x T) |
| Round Bar Shear | 1.75 in. | 1.75 in. |
| Square Bar Shear | 1.75 x 1.75 in. | 1.75 x 1.75 in. |
| Angle Shearing - Working Height | 40.9 in. | 40.9 in. |
| Flat Shearing - Working Height | 28.5 in. | 28.5 in. |
| Notching - Working Height | 41.3" | 1,049 mm |
| V Notcher | 4.1 x 4.1 x .5 in. (Side x Side x T) | 4.1 x 4.1 x .5 in. (Side x Side x T) |
| Large V Notcher | 5.75 x 5.75 x .375 in. (Side x Side x T) | 5.75 x 5.75 x .375 in. (Side x Side x T) |
| Single Vee Press Brake | 9.875 x .625 in. (L x T) | 9.875 x .625 in. (L x T) |
| Multi Vee Press Brake | 19.625 x .187 in. (L x T) | 19.625 x .187 in. (L x T) |
| Pipe Notcher | 4.4 in. | 4.4 in. |
| Angle (L1) | 5.125" | 130.17 mm |
| Angle (L2) | 5.125" | 130.17 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Angle Bending | 4 x .312 in. | 4 x .312 in. |
| Working Height | 41.3" | 1,049 mm |
| Diameter x Thickness | 2 x .5 in. | 2 x .5 in. |
| Angle Flange Trim | 4 in. | 4 in. |
| Blade Length | 16.125" | 409.57 mm |
| Throat Depth | 16" | 406.4 mm |
| Stroke | 3.93" | 99.822 mm |
| Stroke Length | 3.93 in. (Max.) | 3.93 in. (Max.) |
| Electrics | 220v, 3-phase | 220v, 3-phase |
| Power | 10 hp | 10 hp |
| Cycles / Min. | 38 @ 15 mm | 38 @ 15 mm |
| Shipping Dimensions | 70.6 x 40.1 x 73.4 in. | 70.6 x 40.1 x 73.4 in. |
| Weight | 6,050 lbs. | 6,050 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
