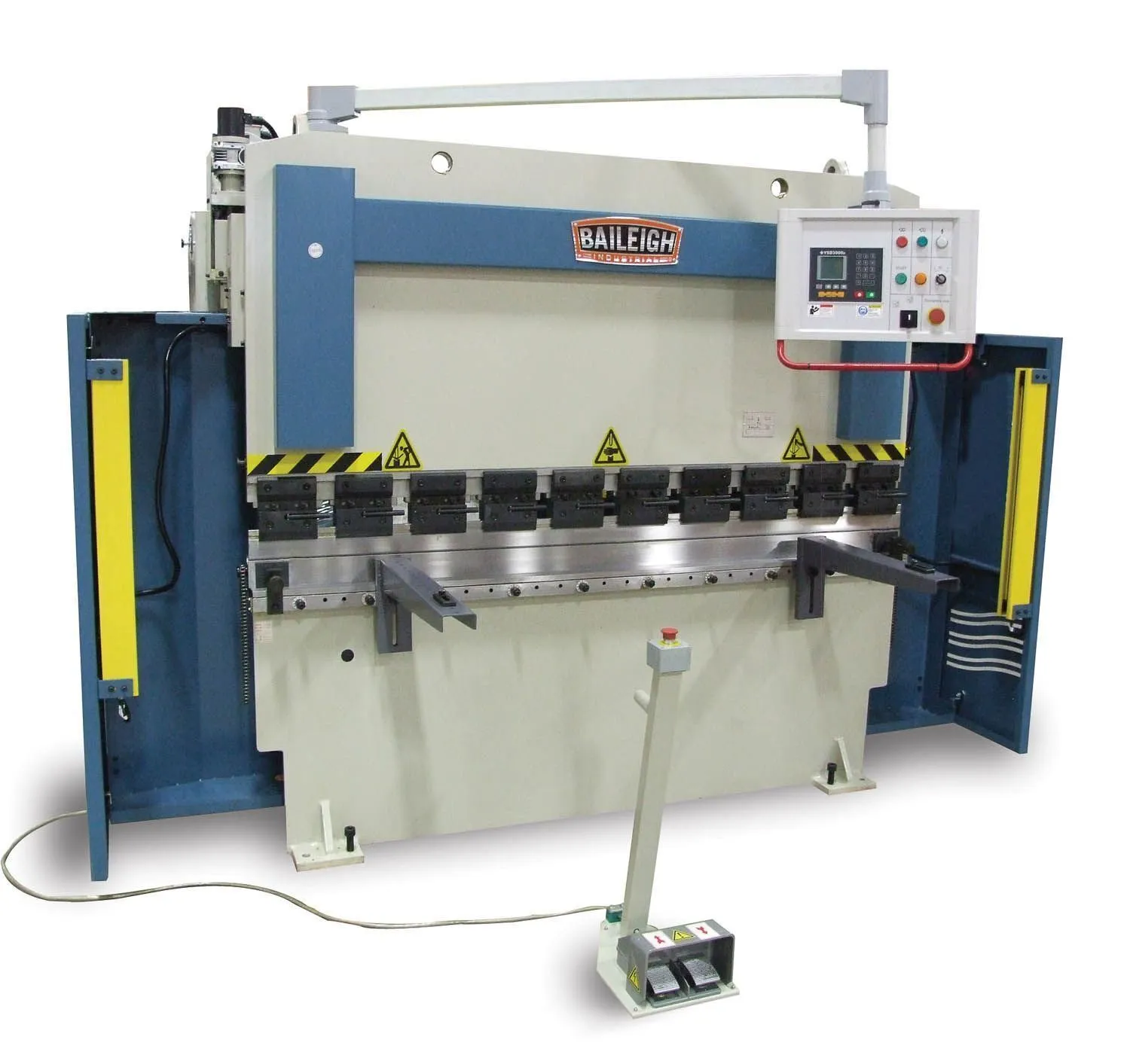

The BAILEIGH BP-5078CNC hydraulic press brake comes standard with 2 axes of control: stroke and back gauge distance. Delivers 50 tons of pressure over its entire 78” length and long enough to bend 6-foot pieces of mild steel. Runs on 220-volt 3-phase power.
| Pressure/Tonnage | 50 T | 45.359 t |
| # Axis | 2 | 2 |
| Throat Depth | 7.87" | 199.9 mm |
| Table Length | 78" | 1,981.2 mm |
| Return Speed | 3.5 in/sec. | 88.9 mm/sec. |
| Approach Speed | 3.9 in/sec. | 99.8 mm/sec. |
| Bending Speed | 0.4 in/sec. | 10 mm/sec. |
| Distance Between Housings | 64.5" | 1,638.3 mm |
| Distance From Table To Ram | 11.81" | 299.97 mm |
| Stroke Distance | 3.93" | 99.822 mm |
| Back Gauge Motor | 1/2 HP | 1/2 HP |
| Back Gauge Capacity | 15.7" | 398.78 mm |
| Power | 220V / 3-phase | 220V / 3-phase |
| Shipping Dimensions (L/W/H) | 117 x 61 x 85 in. | 117 x 61 x 85 in. |
| Gross Weight | 7,700 lb | 3,492.7 kg |
| Control | CNC | CNC |
| Dimensions | 117 x 61 x 85 in. | 117 x 61 x 85 in. |
| Weight | 6600 lbs. | 6600 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
