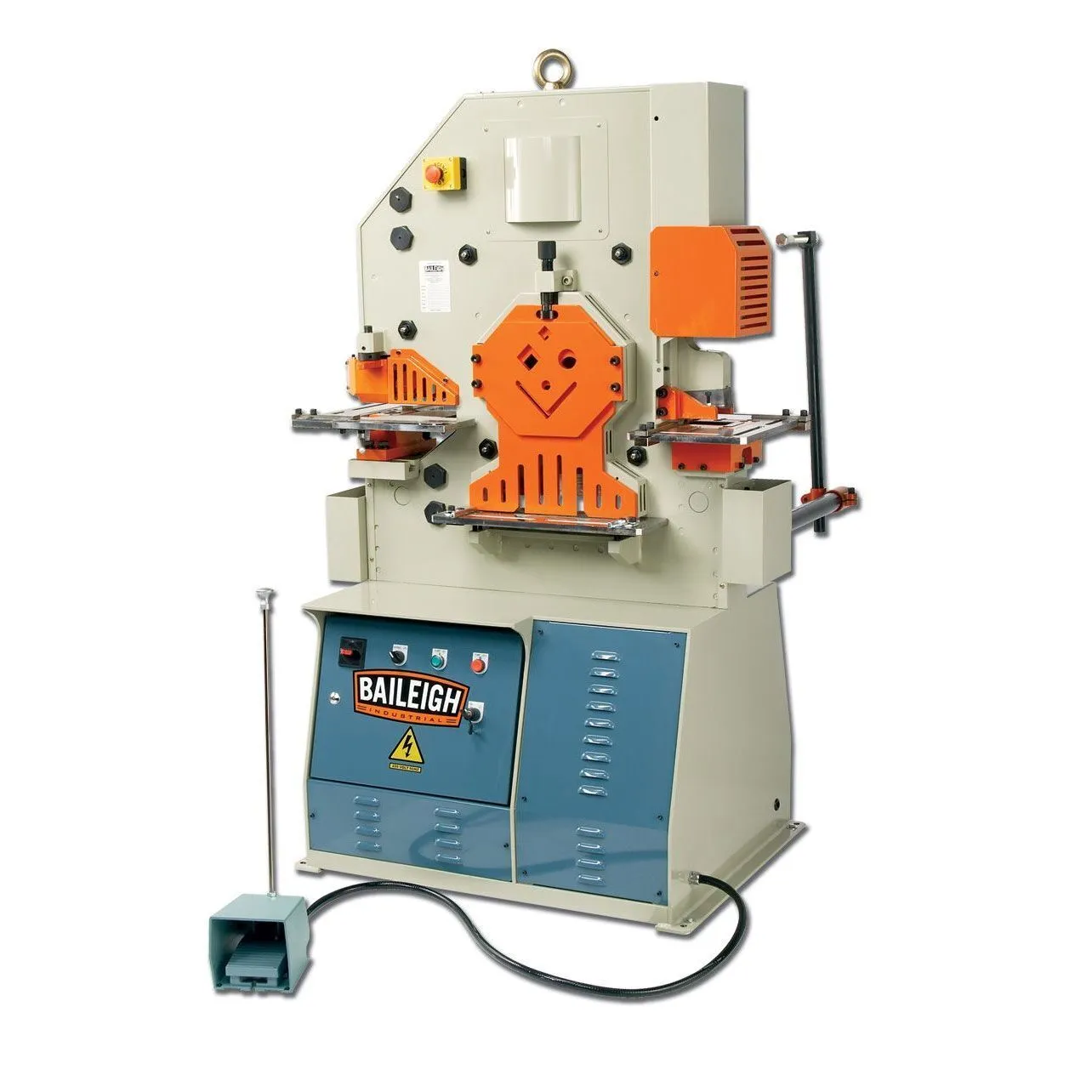

If your shop takes on punching, shearing, and notching jobs on a regular basis, let the SW-623 prove how hardworking a hydraulic ironworker can be over decades of use. Runs on 220-volt 3-phase power. Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
| Punch Tonnage | 62 T | 56,245.5 kg |
| Punch Max. Capacity | 1.125 x .625 in. | 1.125 x .625 in. |
| Flat Bar Shear | 13.50 x .625 in. | 13.50 x .625 in. |
| Angle Shear 90° | 4 x 4 x .375 in. | 4 x 4 x .375 in. |
| Channel Shear | 4 in. | 4 in. |
| Rectangle Notcher | 2 x 3.5 x .312 in. (W x D x T) | 2 x 3.5 x .312 in. (W x D x T) |
| Round Bar Shear | 1.5 in. | 1.5 in. |
| Square Bar Shear | 1.5 x 1.5 in. | 1.5 x 1.5 in. |
| I Beam Shear | 4 in. | 4 in. |
| Bar Shearing - Working Height | 44 in. | 44 in. |
| Angle Shearing - Working Height | 40 in. | 40 in. |
| Flat Shearing - Working Height | 31.5 in. | 31.5 in. |
| Notching - Working Height | 40" | 1,016 mm |
| V Notcher | 3.5 x 3.5 x .312 in. (Side x Side x T) | 3.5 x 3.5 x .312 in. (Side x Side x T) |
| Single Vee Press Brake | 6.312 x .312 in. (L x T) | 6.312 x .312 in. (L x T) |
| Multi Vee Press Brake | 9.875 x .156 in. (L x T) | 9.875 x .156 in. (L x T) |
| Pipe Notcher | 2.5 in. | 2.5 in. |
| Angle (L1) | 4" | 101.6 mm |
| Angle (L2) | 4" | 101.6 mm |
| Angle (T) | 0.375" | 9.525 mm |
| Angle Bending | 2.5 x .312 in. | 2.5 x .312 in. |
| Working Height | 39.5" | 1,003.3 mm |
| Diameter x Thickness | 1.625 x .437 in. | 1.625 x .437 in. |
| Angle Flange Trim | 4 in. | 4 in. |
| Blade Length | 14.125" | 358.77 mm |
| Throat Depth | 8" | 203.2 mm |
| Stroke | 2" | 50.8 mm |
| Stroke Length | 2 in. (Max.) | 2 in. (Max.) |
| Motor | 5 HP | 5 HP |
| Electrics | 220v, 3-Phase | 220v, 3-Phase |
| Cycles / Min. | 28 @ 15 mm | 28 @ 15 mm |
| Shipping Dimensions | 45 x 30 x 68 in. | 45 x 30 x 68 in. |
| Weight | 2,310 lbs. | 2,310 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
