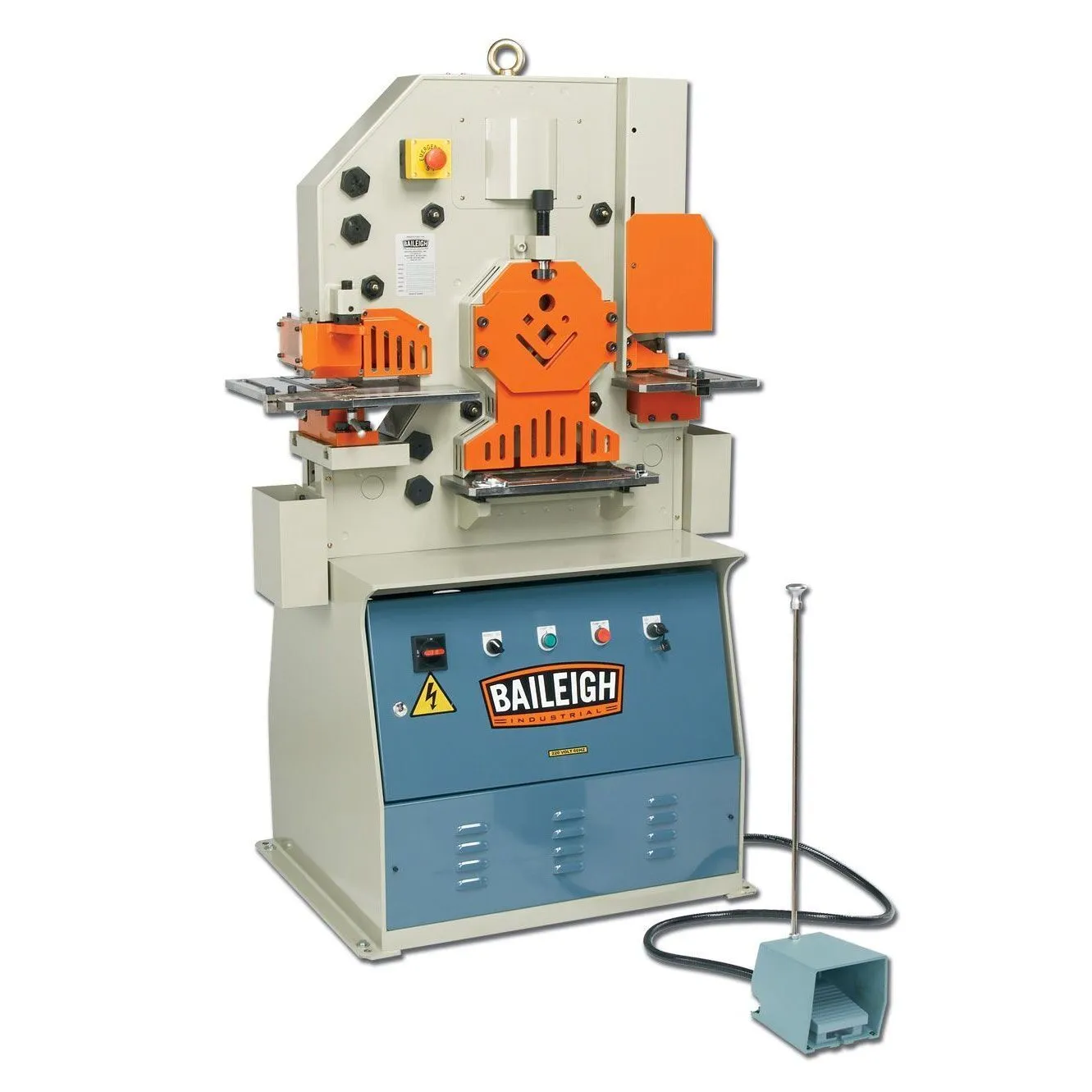

Punching. Shearing. Notching. You can do it all with just one: the SW-503 hydraulic ironworker. We manufactured this compact machine to multitask at your shop for decades. Runs on 220-volt 3-phase power. 50 tons of vertical pressure at each of its 5 integrated stations.
| Punch Tonnage | 50 T | 45,359.3 kg |
| Punch Max. Capacity | .875 x .625 in. | .875 x .625 in. |
| Flat Bar Shear | 10 x .375 in. | 10 x .375 in. |
| Angle Shear 90° | 3 x 3 x .25 in. | 3 x 3 x .25 in. |
| Rectangle Notcher | 2 x 3.5 x .281 in. (W x D x T) | 2 x 3.5 x .281 in. (W x D x T) |
| Round Bar Shear | 1.125 in. | 1.125 in. |
| Square Bar Shear | 1 x 1 in. | 1 x 1 in. |
| V Notcher | 3.5 x 3.5 x .312 in. (Side x Side x T) | 3.5 x 3.5 x .312 in. (Side x Side x T) |
| Single Vee Press Brake | 6.312 x .312 in. (L x T) | 6.312 x .312 in. (L x T) |
| Multi Vee Press Brake | 9.875 x .156 in. (L x T) | 9.875 x .156 in. (L x T) |
| Pipe Notcher | 2.5 in. | 2.5 in. |
| Angle (L1) | 3" | 76.2 mm |
| Angle (L2) | 3" | 76.2 mm |
| Angle (T) | 0.25" | 6.35 mm |
| Angle Bending | 2.5 x .312 in. | 2.5 x .312 in. |
| Working Height | 32.5" | 825.5 mm |
| Diameter x Thickness | 1.625 x .375 in. | 1.625 x .375 in. |
| Angle Flange Trim | 3 in. | 3 in. |
| Blade Length | 10.25" | 260.35 mm |
| Throat Depth | 6" | 152.4 mm |
| Stroke Length | 1.125 in. (Max.) | 1.125 in. (Max.) |
| Motor | 3 HP | 3 HP |
| Electrics | 220v, 3-Phase | 220v, 3-Phase |
| Cycles / Min. | 19 @ 15 mm | 19 @ 15 mm |
| Shipping Dimensions | 38 x 27 x 62 in. | 38 x 27 x 62 in. |
| Weight | 1,650 lbs. | 1,650 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
