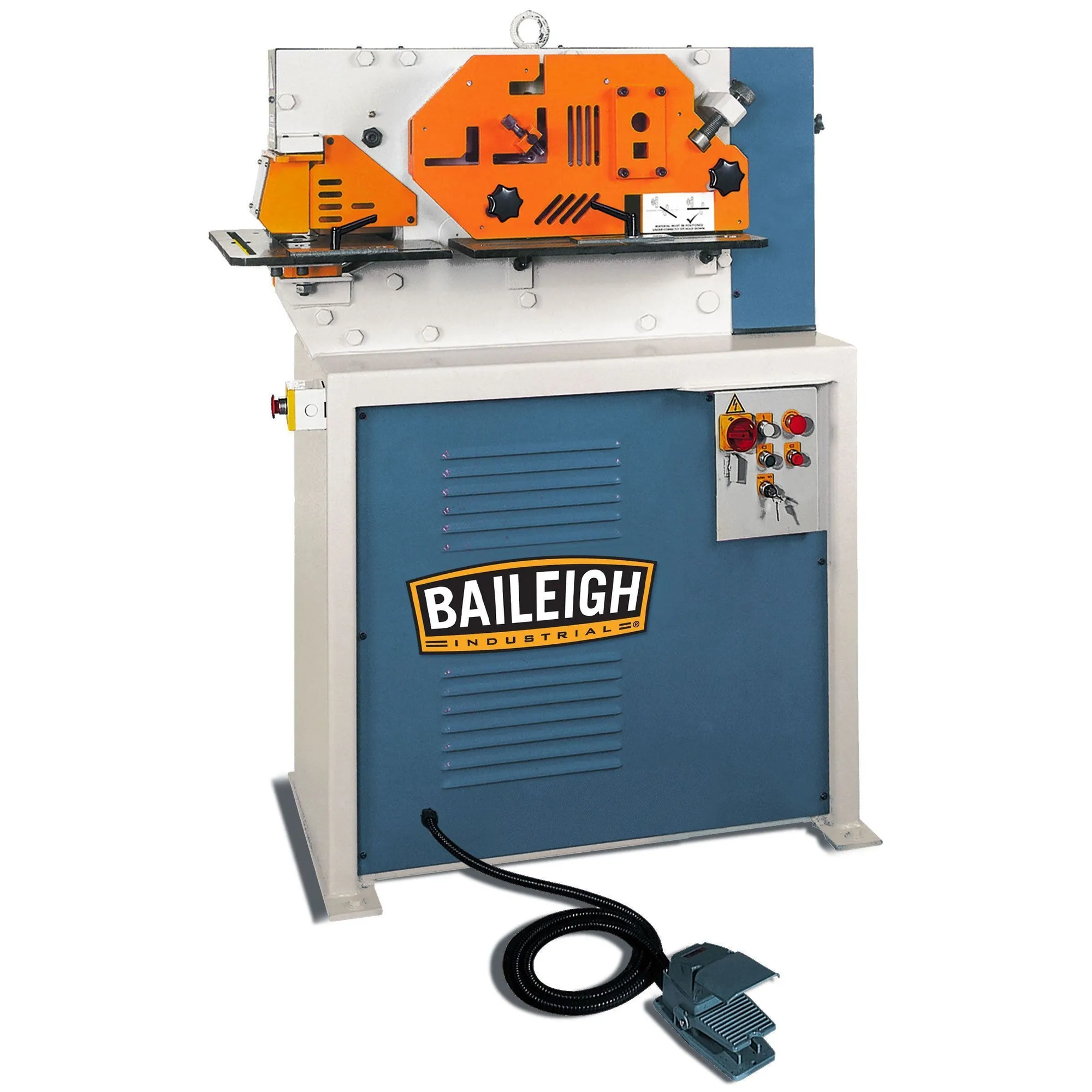

The Baileigh SW-441 Hydraulic Ironworker includes just about every feature you’d want to help you shear and punch smoothly. Runs on 220-volt single-phase power and will work at virtually any site in North America. Delivers 44 tons of force for punching and shearing.
| Punch Tonnage | 44 T | 39,916.2 kg |
| Punch Max. Capacity | .75 x .625 in. | .75 x .625 in. |
| Flat Bar Shear | 7.87 x .5 in. | 7.87 x .5 in. |
| Flat Bar Shear - Work Height | 42.32 in. | 42.32 in. |
| Angle Shear 90° | 3 x 3 x .25 in. | 3 x 3 x .25 in. |
| Round Bar Shear | 1.125 in. | 1.125 in. |
| Square Bar Shear | 1 x 1 in. | 1 x 1 in. |
| Bar Shearing - Working Height | 44.88 in. | 44.88 in. |
| Angle Shearing - Working Height | 40 in. | 40 in. |
| Width x Thickness | 13.77 x .25 in. | 13.77 x .25 in. |
| Diameter x Thickness | 1.5 x .375 in. | 1.5 x .375 in. |
| Angle Flange Trim | 3.14 x .393 in. | 3.14 x .393 in. |
| Blade Length | 13.87" | 352.3 mm |
| Throat Depth | 6.88" | 174.75 mm |
| Stroke Length | 1.125 in. (Max) | 1.125 in. (Max) |
| Electrics | 220v, 1-Phase | 220v, 1-Phase |
| Cycles / Min. | 23 | 23 |
| Dimensions | 49 x 26 x 55 in. | 49 x 26 x 55 in. |
| Weight | 1,320 lbs. | 1,320 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
