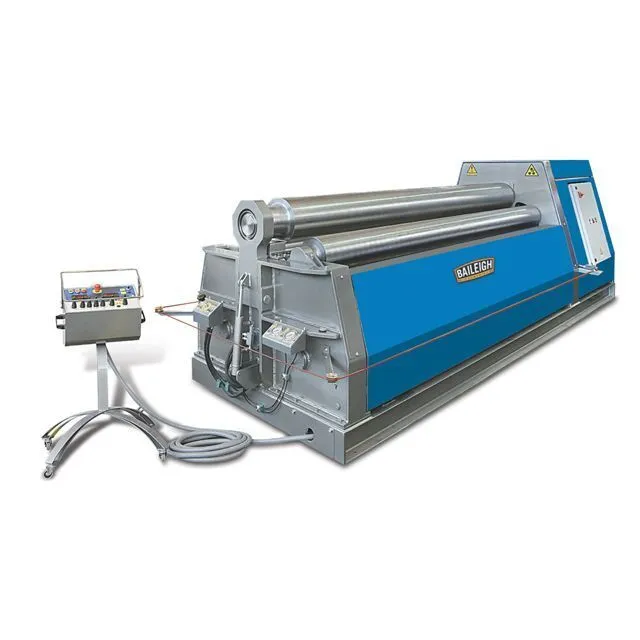

NEW BAILEIGH PR-10500-4

Florida, United States
Asking Price
USD $128,699.00
1 available
3,893Listings|10Followers
Overview
Plate Bending Rolls including Pinch

Explore precision with the BAILEIGH PR-10500-4, a new hydraulic plate bending machine. Featuring double pinch rolls, it handles plates up to 10 ft and 0.5 in thick with 4-roll efficiency. Ideal for demanding forming applications.

Specs
(Init/Dbl Pinch or Pyramid)
DBL PINCH
DBL PINCH
Length of Rolls (inch)
120"
3 m
Max Thickness
0.5"
12.7 mm
Capacity - Mild Steel
0.55"
13.97 mm
# Rolls
4
4
Driven Rolls
2
2
Top Roll Dia.
11.4"
289.56 mm
Upper Roll Diameter
8.662"
220.01 mm
Slide Roll Dia.
8.2"
208.28 mm
Bottom Roll Dia.
10.6"
269.24 mm
Minimum Forming Diameter
13"
330.2 mm
Roll Adjustment
Hydraulic
Hydraulic
Roll Adjustment Back
Hydraulic
Hydraulic
Roll Speed
16 RPM
16 RPM
Programming
Manual
Manual
Power
10 hp
7.5 kW
Voltage
480V
480V
Phase
3-phase
3-phase
Dimensions
176" x 58" x 39"
176" x 58" x 39"
Weight
17,600 lbs.
17,600 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
