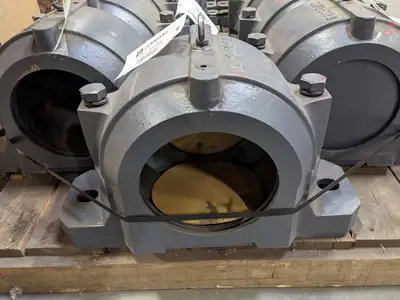

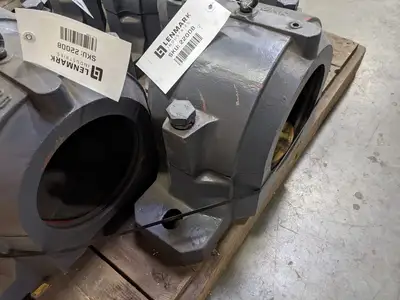

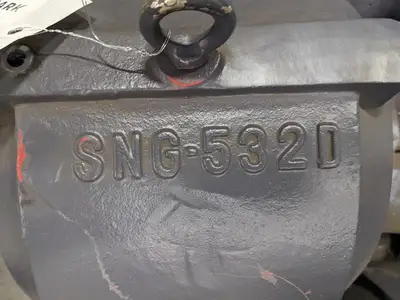

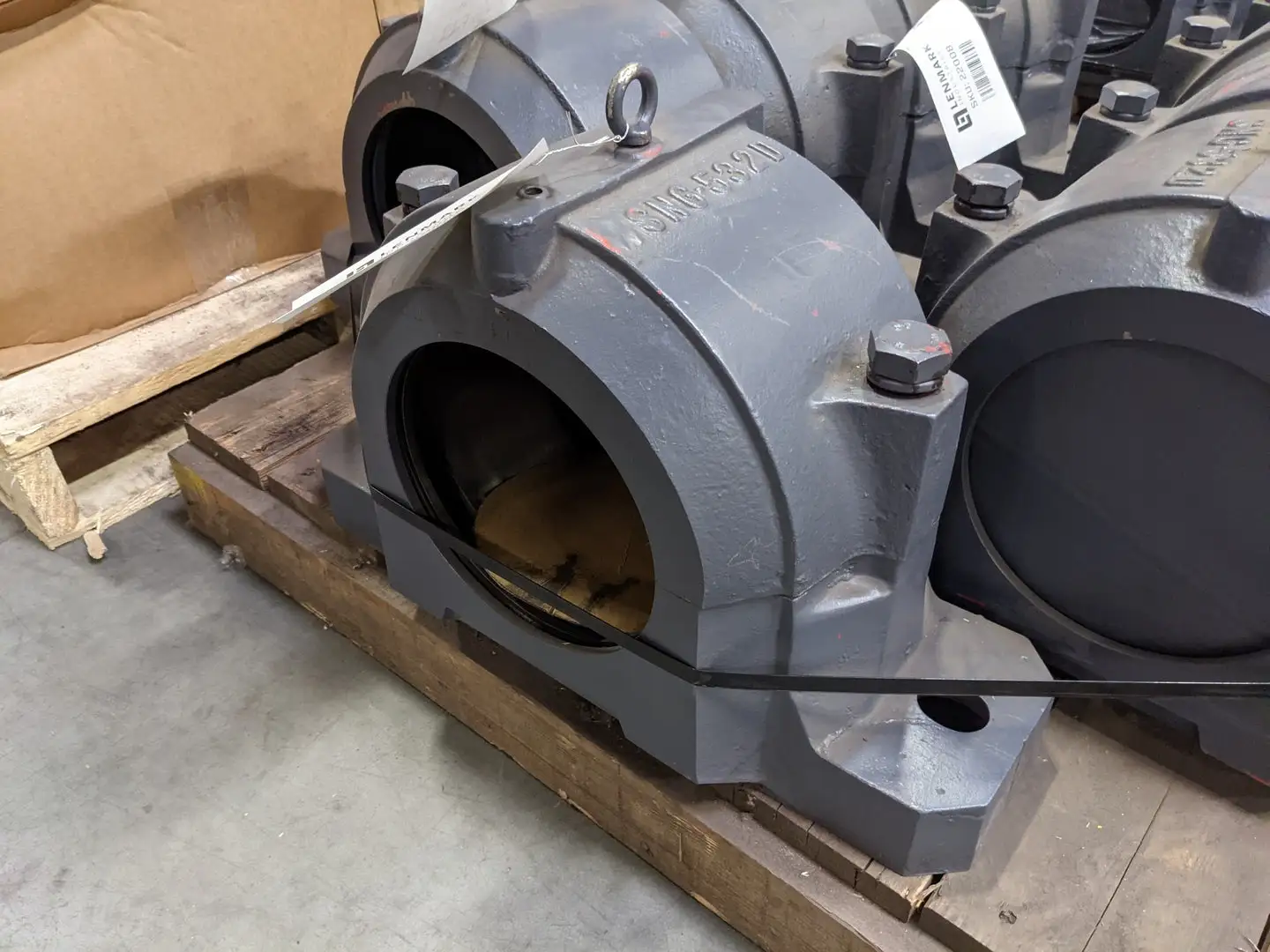

Split Plummer Block Bearing Housing SNG-532D

Base Width:   160 mm
Bolt Center-to-Center Length:   470 mm
Compatible Bearing Type: Spherical Roller Bearing
Compatible Bore Diameter:   140 mm
Material:   Cast Iron
Overall Width:   235 mm
Series:  SNG 500
Inside Diameter:   290 mm
Mounting Type: Two-Bolt Base
Base to Bore Centerline:   170 mm
Overall Length:   550 mm
Overall Height:   344 mm
