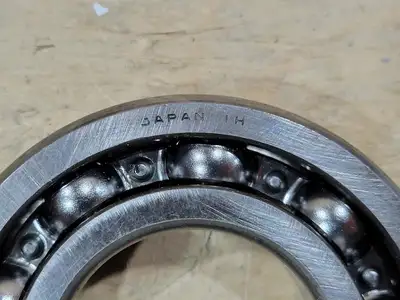

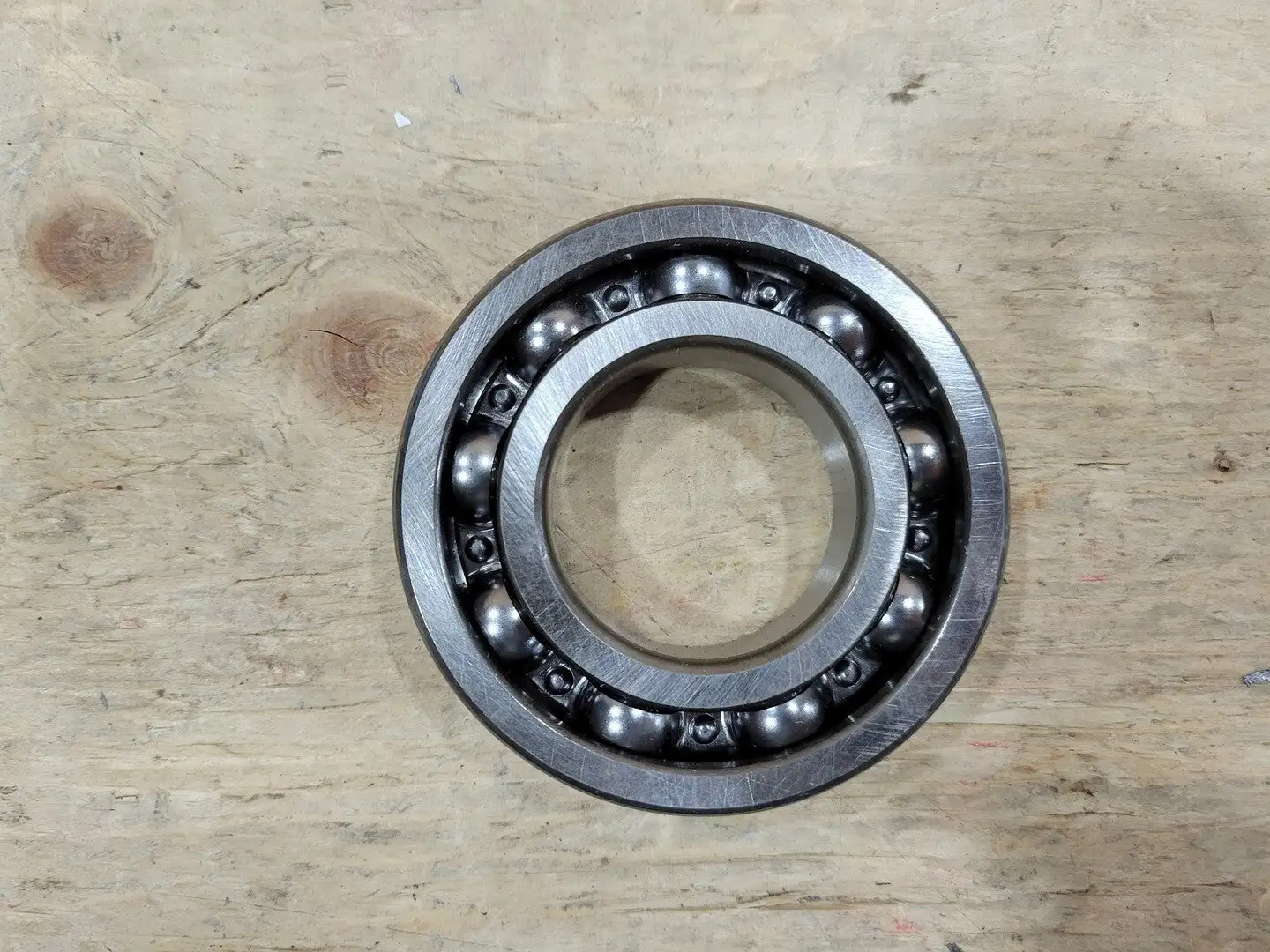

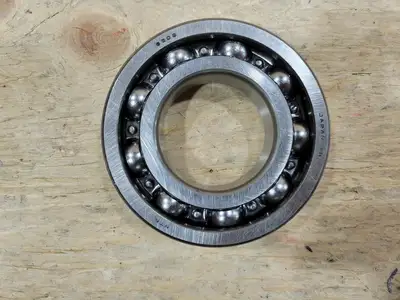

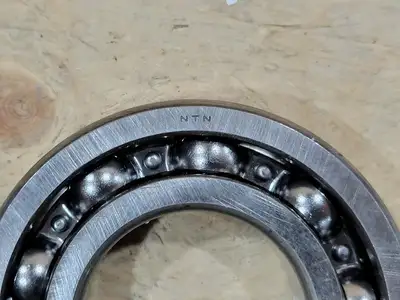

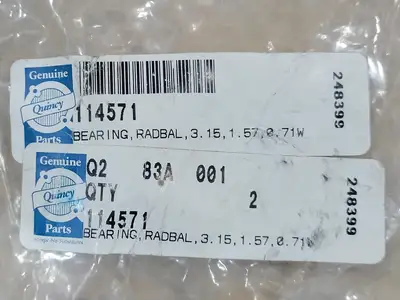

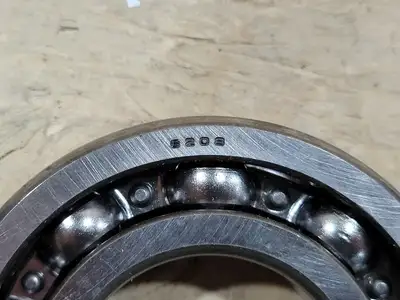

NEW NTN 5208

Bore Size (Metric): 40 mm
Bore Size (Imperial): 1.57 in
Outside Diameter (Metric): 80 mm
Outside Diameter (Imperial): 3.14 in
Snap Ring Included: No
Bearing Type: Ball
Overall Width: 30.2 mm
Closure Type: Open
Contact Angle: 25 deg.
Bearing Material: High Carbon Chrome Steel
Cage Material: Steel
Cage Type: Pressed
Configuration: Two
Fillet Radius: 1.1 mm
Harmonization Code: 8482.10.5028
Internal Clearance: C0
Maximum Speed: 7100 rpm
Precision Class: Class 0
Radial Dynamic Load Capacity: 44,000 N
Radial Static Load Capacity: 33,500 N
Row Type Fill Slot: Double-Row Non-Fill Slot
Series: 52
