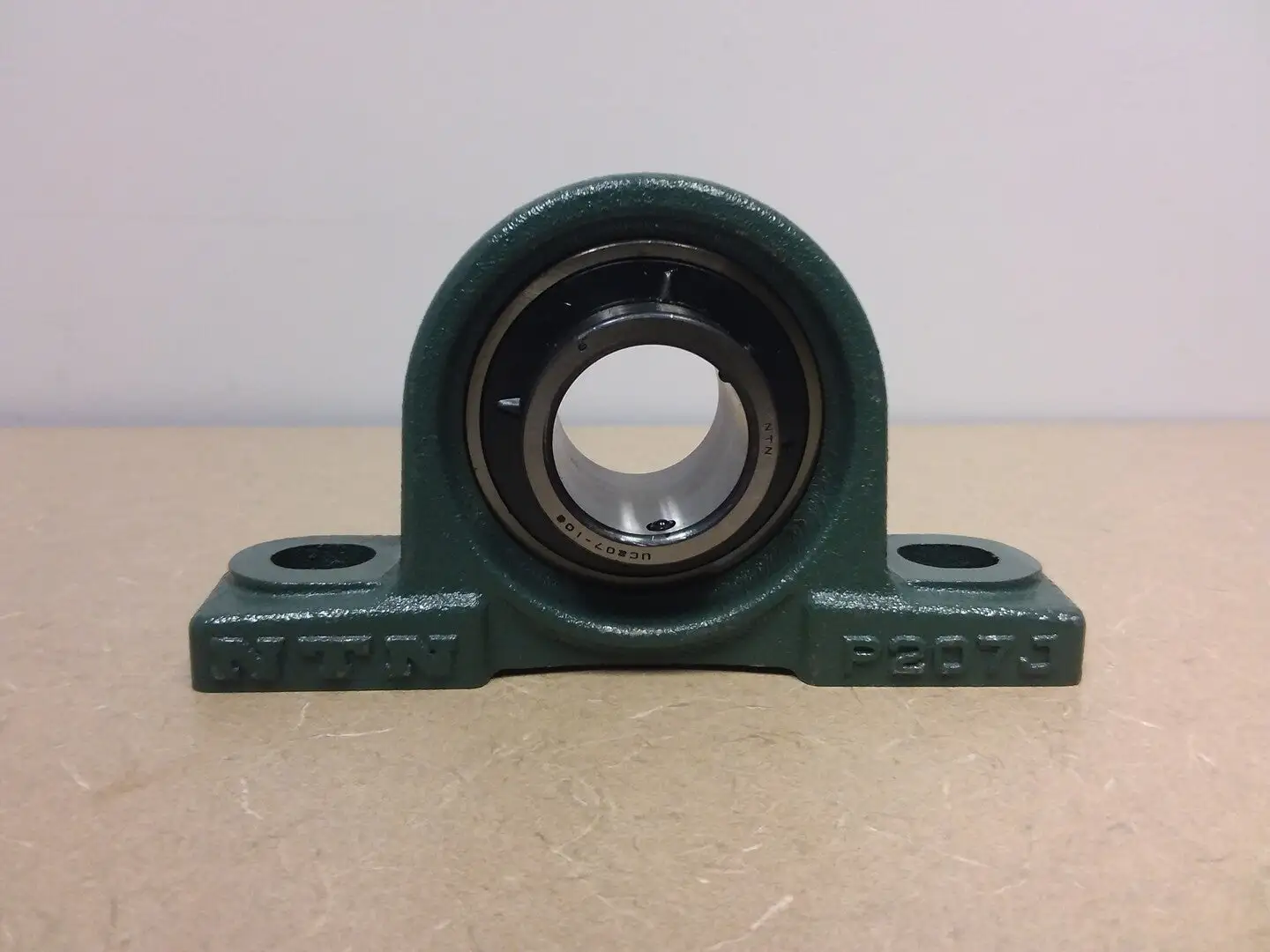

Pillow Block Bearing Unit UCP207-107D1

Type: Pillow Block
Base to Bore Centerline: 1.8750
Distance Between Bolts: 5.000
Housing Compatible Bore Diameter: 1-7/16
Mounting Type: 2-Bolt Base
Bore Type: Round
Duty Type: Light Duty
Housing ID: P207D1
Locking Device: Set Screw
Seal Type: Contact Seal
Housing Material: Cast Iron
Overall Length: 167 mm
Base Width: 1.8750 in, 48.0 mm
Overall Width: 1.9375 in
Radial Dynamic Load Capacity: 5800 lbf
Radial Static Load Capacity: 3450 lbf
Max Speed: 4200 rpm
Seal Material: Nitrile Rubber
Lubrication Type: Relubricatable
End Type: Open
Type of Bearing: Ball Bearing
Housing Construction: Solid
Locking Type: Set Screw
Number of Mounting Holes: 2
