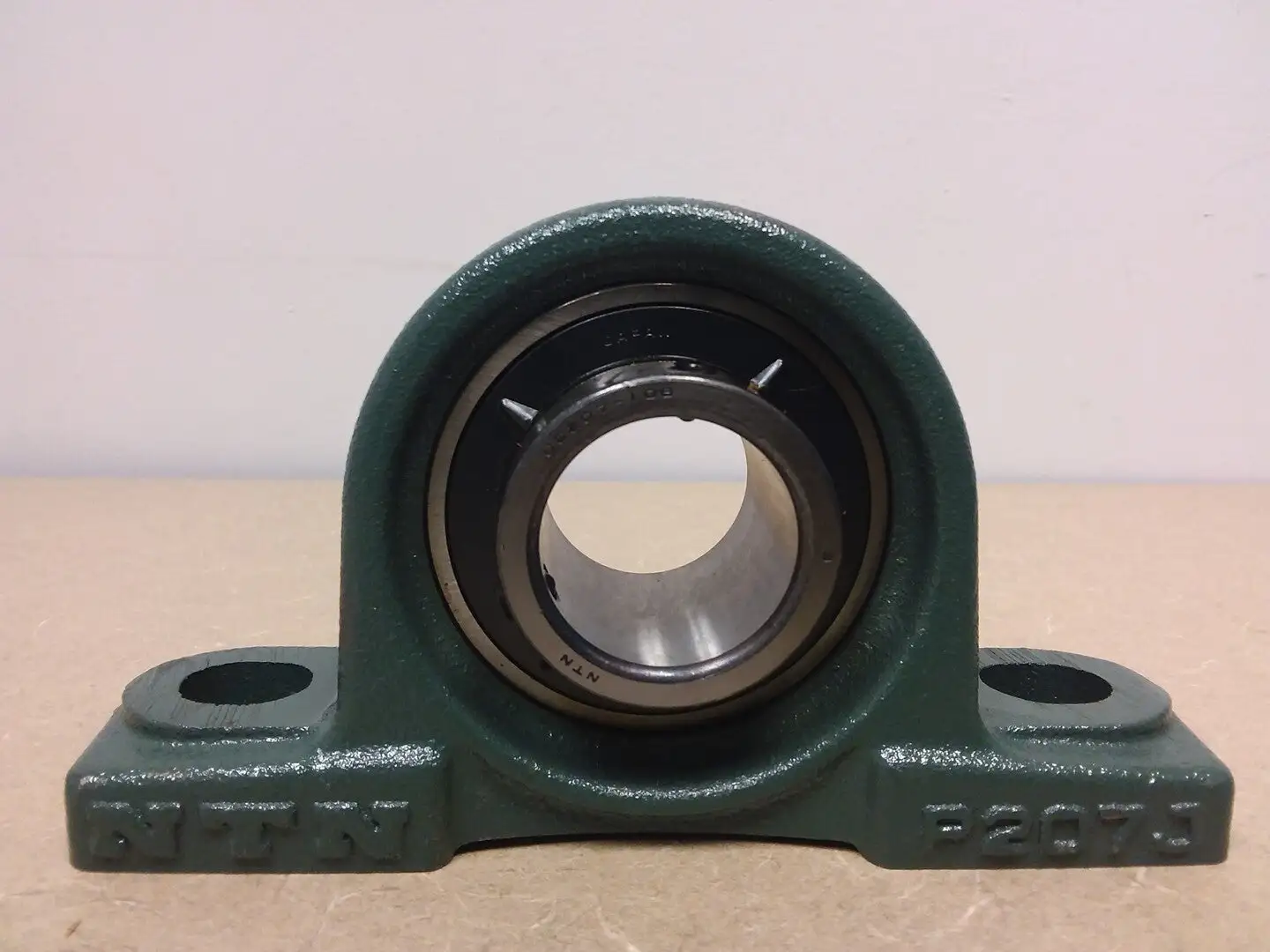

Pillow Block Bearing Unit UCP207-106D1

Type: Pillow Block
Base to Bore Centerline: 5.000
Distance Between Bolts: 1.8750
Housing Compatible Bore Diameter: 1-3/8
Mounting Type: 2-Bolt Base
Bore Type: Round
Duty Type: :Light Duty
Housing ID: P207D1
Locking Device: Set Screw
Seal Type: Contact Seal
Housing Material: Cast Iron
Overall Length: 167 mm
Base Width: 1.8750 in, 48.0 mm
Overall Width: 1.9375 in.
Radial Dynamic Load Capacity: 5800 lbf
Radial Static Load Capacity: 3450 lbf
Maximum Speed: 4200 rpm
Seal Material: Nitrile Rubber
Lubrication Type: Relubricatable
End Type: Open
Type of Bearing: Ball Bearing
Housing Construction: Solid
Locking Type: Set Screw
Number of Mounting Holes: 2
