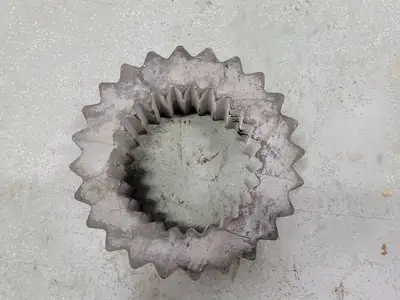

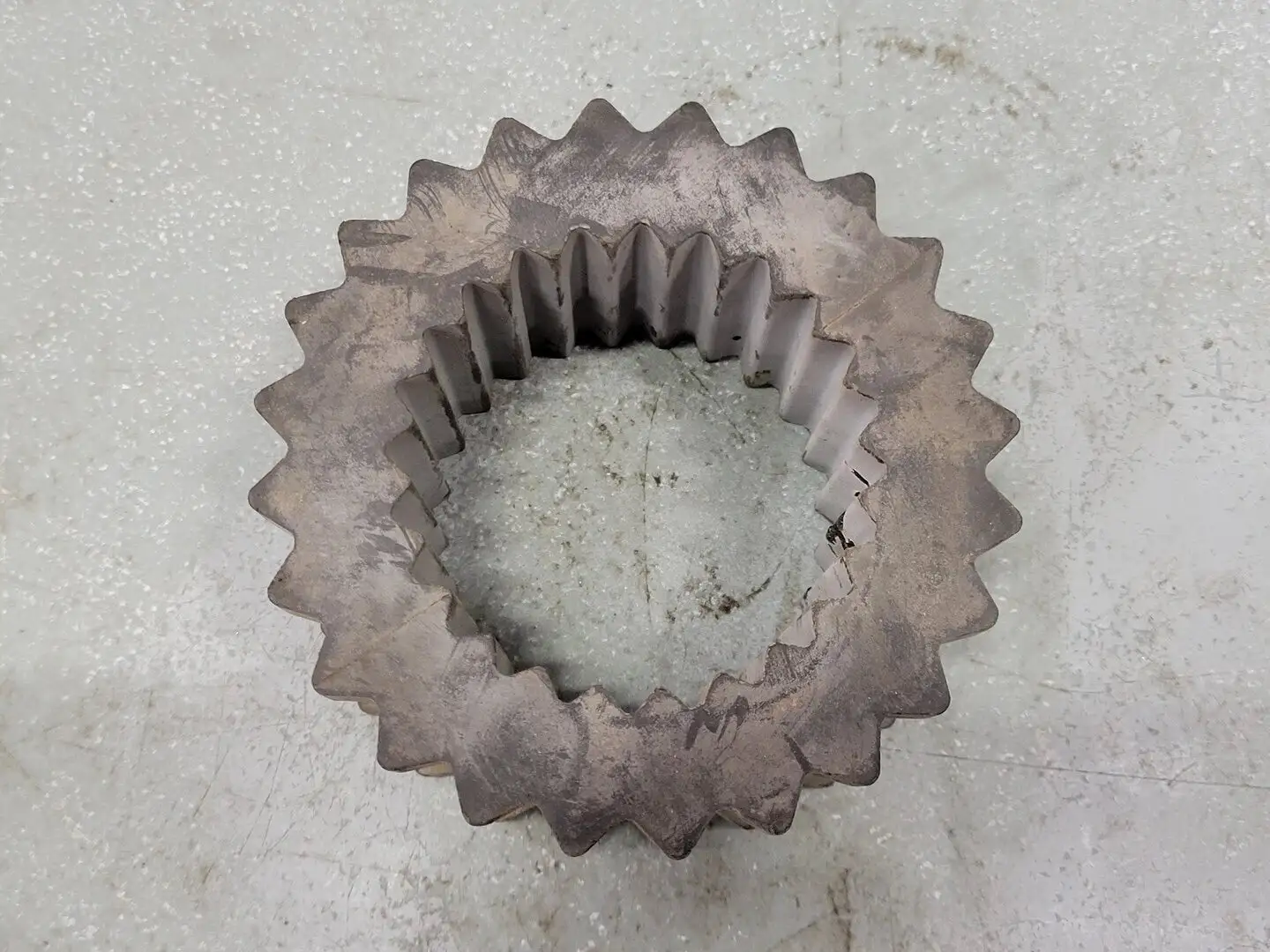

USED TB WOOD'S 8JN

Bore Size (Metric): 60.325 mm
Bore Size (Imperial): 2 3/8 in
Outside Diameter (Metric): 128.587 mm
Outside Diameter (Imperial): 5 1/16 in
Coupling Size Code: 8
Sleeve Type Code: JN
Sleeve Construction: One Piece Solid
Sleeve Material: Neoprene
Coupling Overall Length: 2.5000 in - 2-1/2 in
Torque Capacity: 1475.0000 in - 1475 in
Maximum RPM: 4500 rpm
Coupling Outside Diameter: 5-1/16 in
Horsepower: @ 100 RPM 2.3 hp
Maximum Angular Misalignment: 1
Maximum Parallel Misalignment: 0.020 in
Operating Temperature Range: 0 to +200 F
Series: Sure-Flex Plus, S-Flex
Stiffness: 4335 in lb/rad
Max HP: @1750 RPM 41 HP
Max HP: @3500 RPM 82 HP
Material: Neoprene
