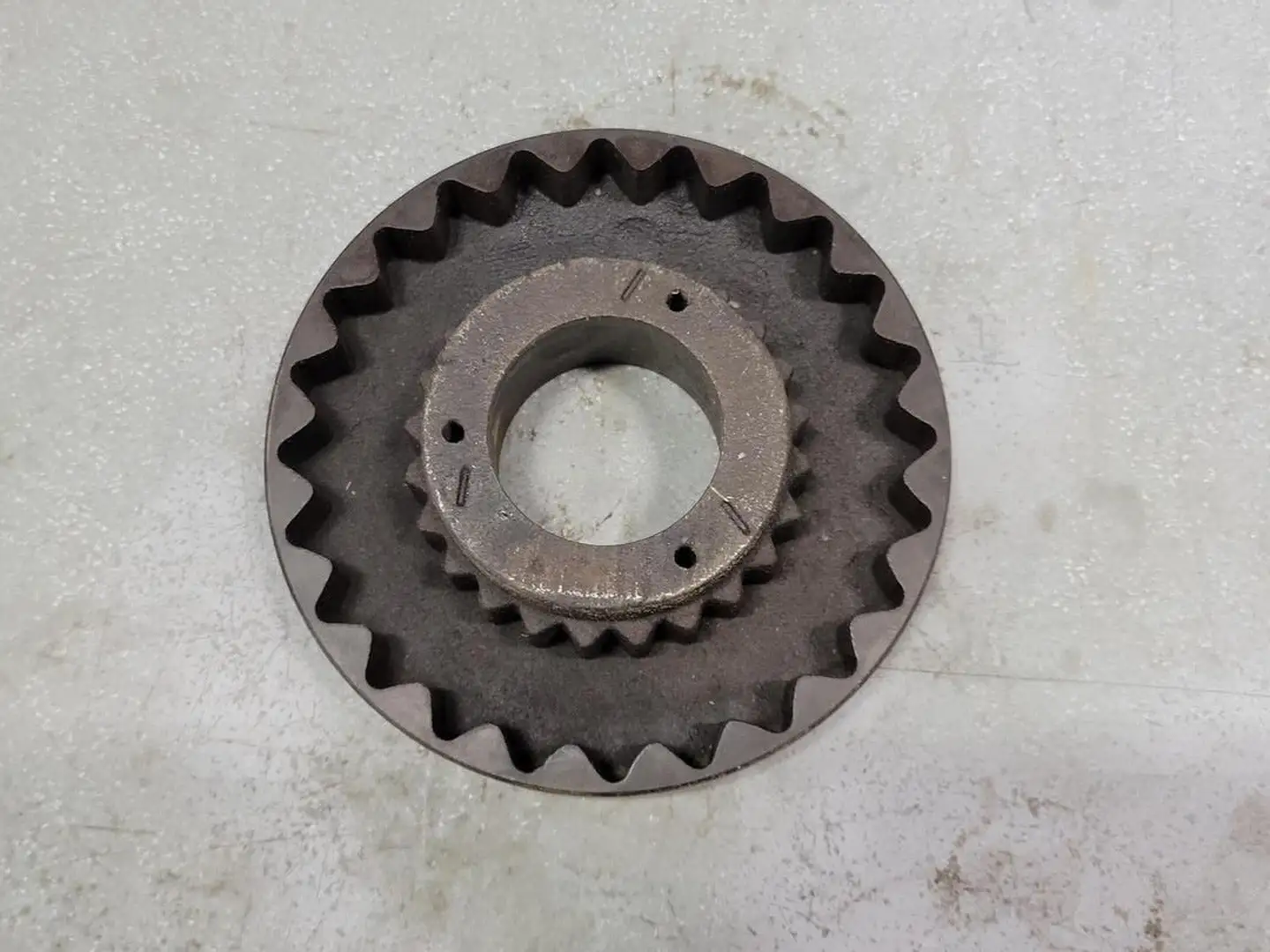

1 15/16" Bore Sleeve Coupling Flange 9B-SD

Hub Flange Type Code: B
Coupling Size Code: 9
Bore Type: Bushed
Bore Diameter: 1.9375 in - 1-15/16 in
Hub Type: Spacer Flange
Hub Material: Cast Iron
Flange Diameter: 6.3500 in
Length Through Bore: 1.625 in
Coupling Overall Length: 4-5/8 in
Bushing Size: SD
Hub End Outside Diameter: 3-3/16 in
Torque Capacity: 7200 in
Maximum RPM: 3750 RPM
Horsepower @ 100 RPM: 2.8 (TPR) hp, 11.4 (Hytrel) hp
Series: Quadra-Flex
