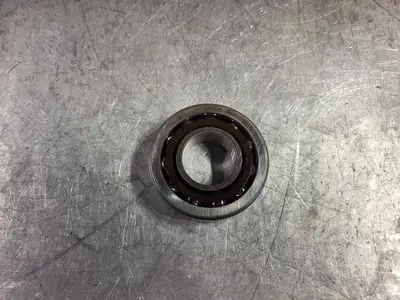

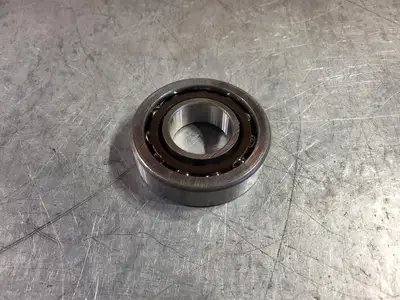

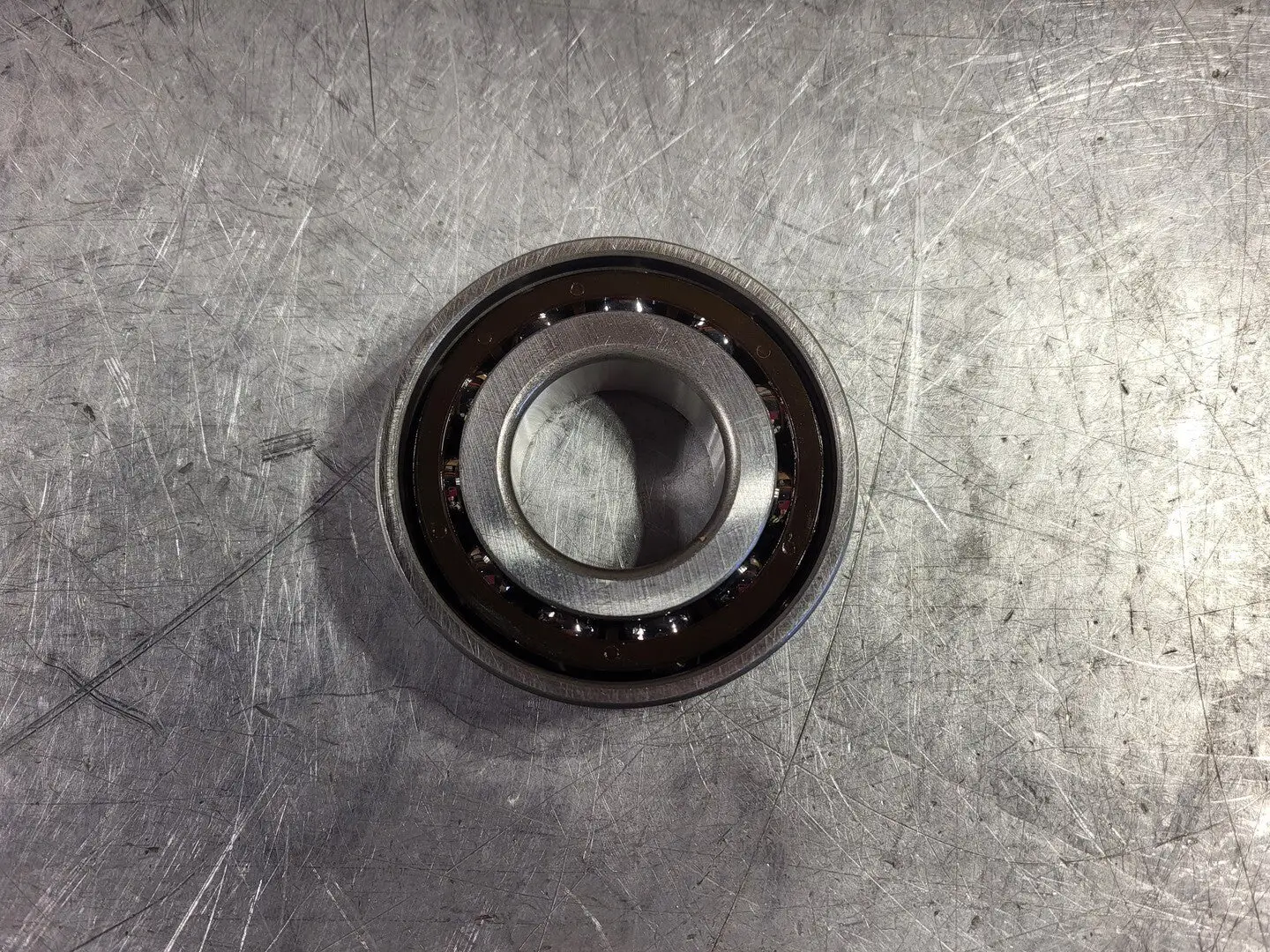

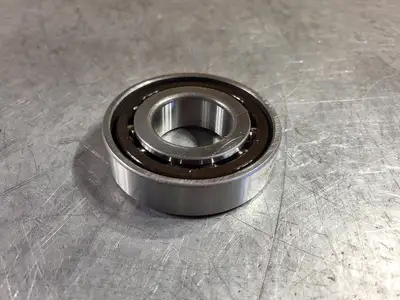

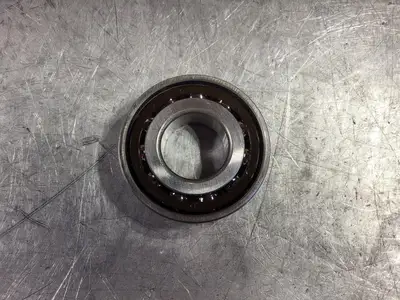

NEW DHK 7308B

Bore Size (Metric): 40 mm
Bore Size (Imperial): 1.574 in
Outside Diameter (Metric): 90 mm
Outside Diameter (Imperial): 3.543 in
Snap Ring Included: No
Bearing Type: Ball
Internal Clearance: CN
Overall Width: 23 mm
Bearing Style: Open Type
Precision: Grade 0
Inner/Outer Ring Material: Steel
Outer Ring Shape: Flat
Basic Dynamic Load Rating: 45,000 N
Retainer Type: Machined Cage
Contact Angle: 40 deg.
Max Allowable Rotation Speed: 6300
Load Direction: Radial
Basic Load Rating, Static Rating: 30500
