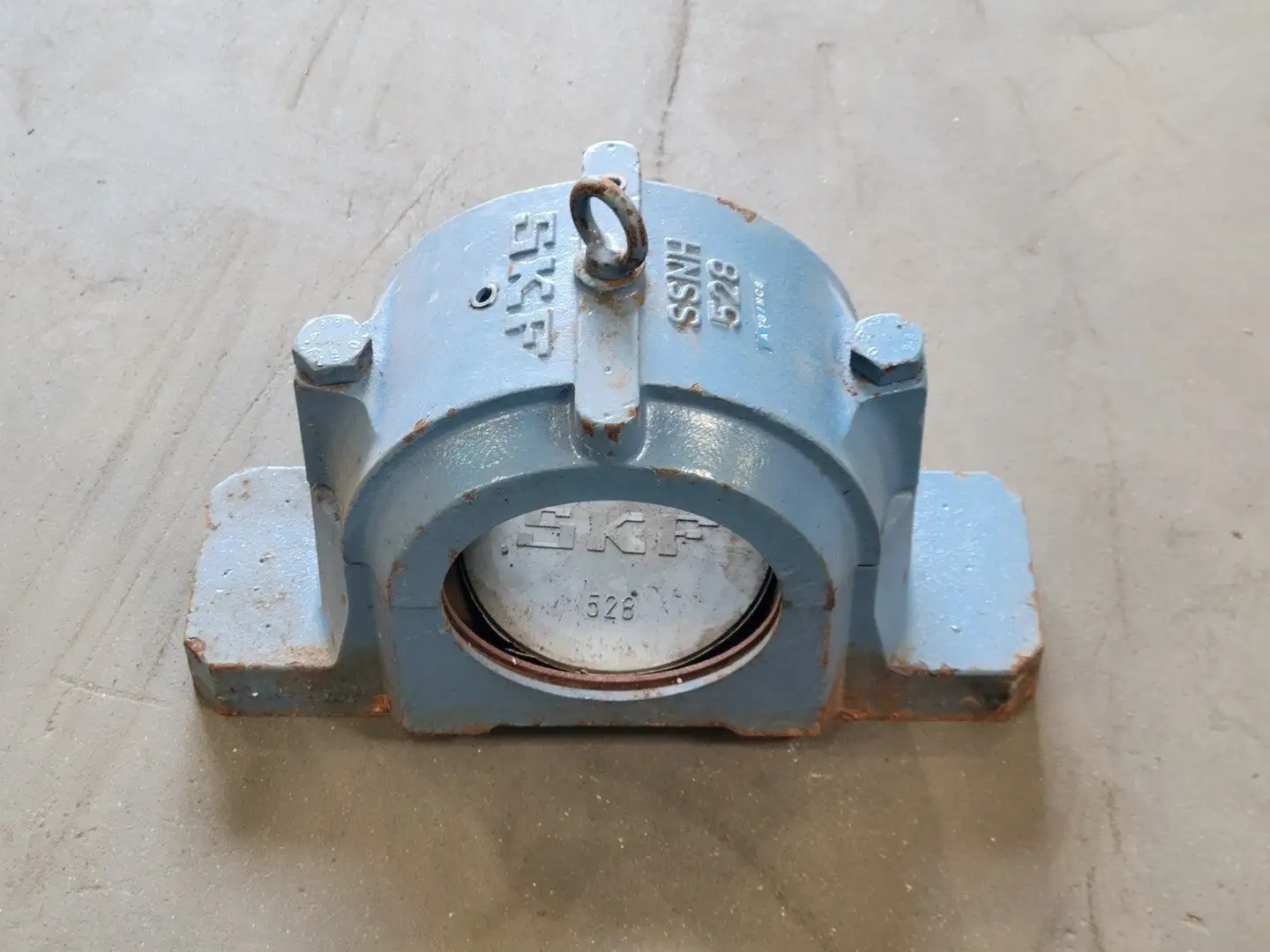

USED SKF SSNH 528

Type: Split Plummer Block
Height: 302 mm
Outside Length: 500 mm
Base to Bore Centerline: 150 mm
Distance Between Bolts: 420 mm
Housing Compatible Bore Diameter: 250 mm
Mounting information
Size of cap bolt: M 24x140
Recommended tightening torque for cap bolts: 350 Nm
Recommended diameter for attachment bolts: 30 mm
Recommended tightening torque for attachment bolts: 1 310 Nm
Initial grease fill, 20%: 900 g
Initial grease fill, 40%: 1 400 g
Size of eye bolt: M 12
