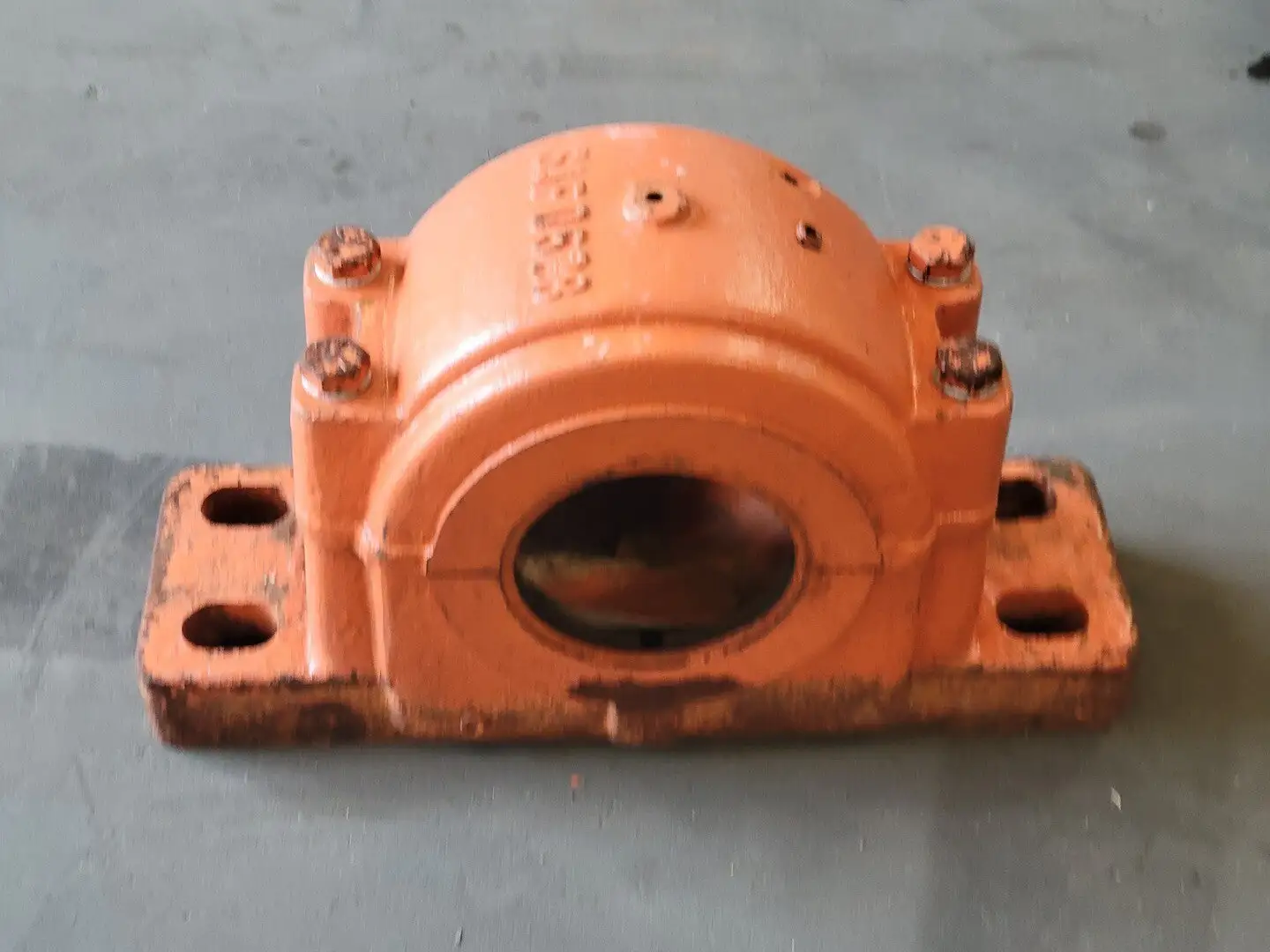

USED SKF SAFD528

Type: Split Plummer Block
Height: 305.594 mm
Outside Length: 511.175 mm
Base to Bore Centerline: 152.4 mm
Distance Between Bolts: Min. 396.875 mm / Max. 441.325 mm
Housing Compatible Bore Diameter: 125.413 mm
Properties
Housing type: Pillow block
Housing configuration: Two-piece
Mounting arrangement: Through shaft/Shaft end
Number of bolt holes for fasteners: 4
Material, housing: Spheroidal graphite cast iron
Bearing housing seal type: Labyrinth seal
Housing lubrication feature/possibility: Grease/Oil
Materials
Housing material: Spheroidal graphite cast iron
Corrosion protection: Paint - in accordance with ISO 12944-2, corrosivity category C2
Mounting information
Cap bolt: 1-8 UNC x 5-1/2
Number of cap bolts: 2
SAE grade of cap bolt: 8
Recommended tightening torque for cap bolts: 399.966 Nm
Recommended diameter for attachment bolts: 25.4 mm
Eye bolt: 3/8-16 UNC
Number of eyebolts : 1
