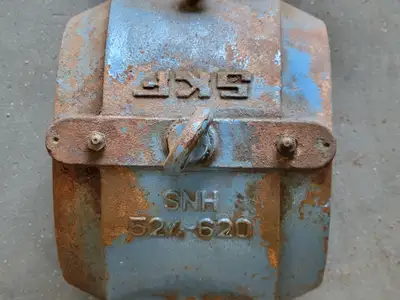

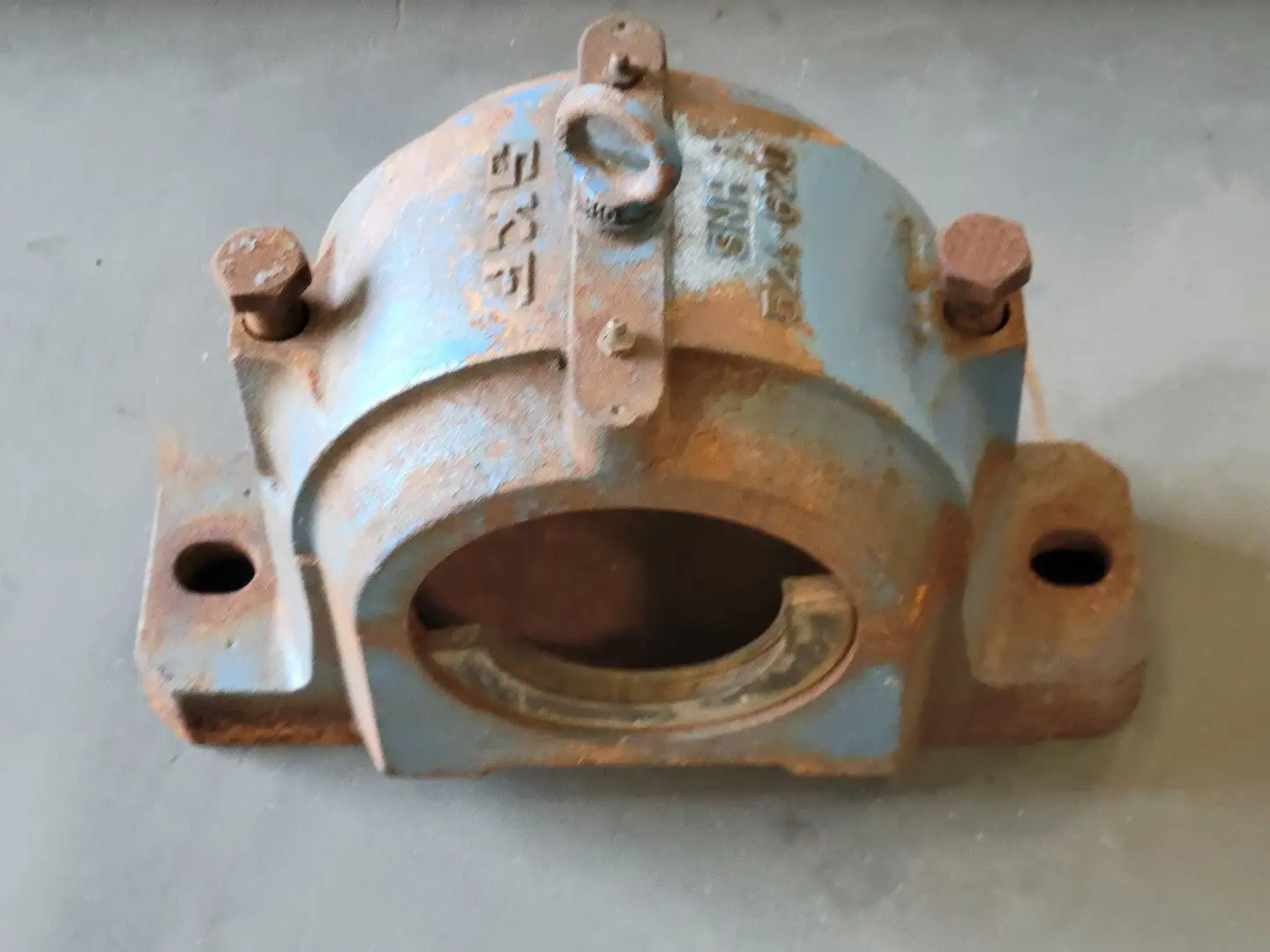

USED SKF SNL 524-620

Type: Split Plummer Block
Height: 271 mm
Outside Length: 410 mm
Base to Bore Centerline: 140 mm
Distance Between Bolts: 350 mm
Housing Compatible Bore Diameter: 215 mm
Properties
Housing type: Plummer/pillow block
Housing configuration: Two-piece
Mounting arrangement: Through shaft/Shaft end
Number of bolt holes for fasteners: 2
Material, housing: Cast iron
Bearing housing seal type: Without
Housing lubrication feature/possibility: Grease
Materials
Housing material: Cast iron
Corrosion protection: Paint - in accordance with ISO 12944-2, corrosivity category C2
Mounting information
Recommended diameter of attachment bolts G : 24 mm
Recommended tightening torque for attachment bolts: 665 Nm
Size of cap bolts: M20x120
Tightening torque for cap bolts: 200 Nm
Size of eye bolt: M10
Initial grease fill, 20%: 630 g
Initial grease fill, 40%: 1 000 g
