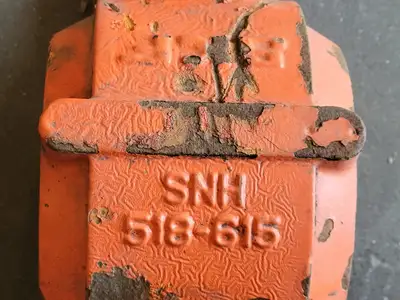

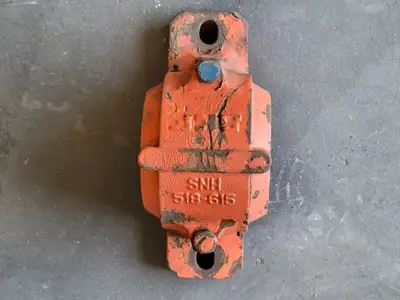

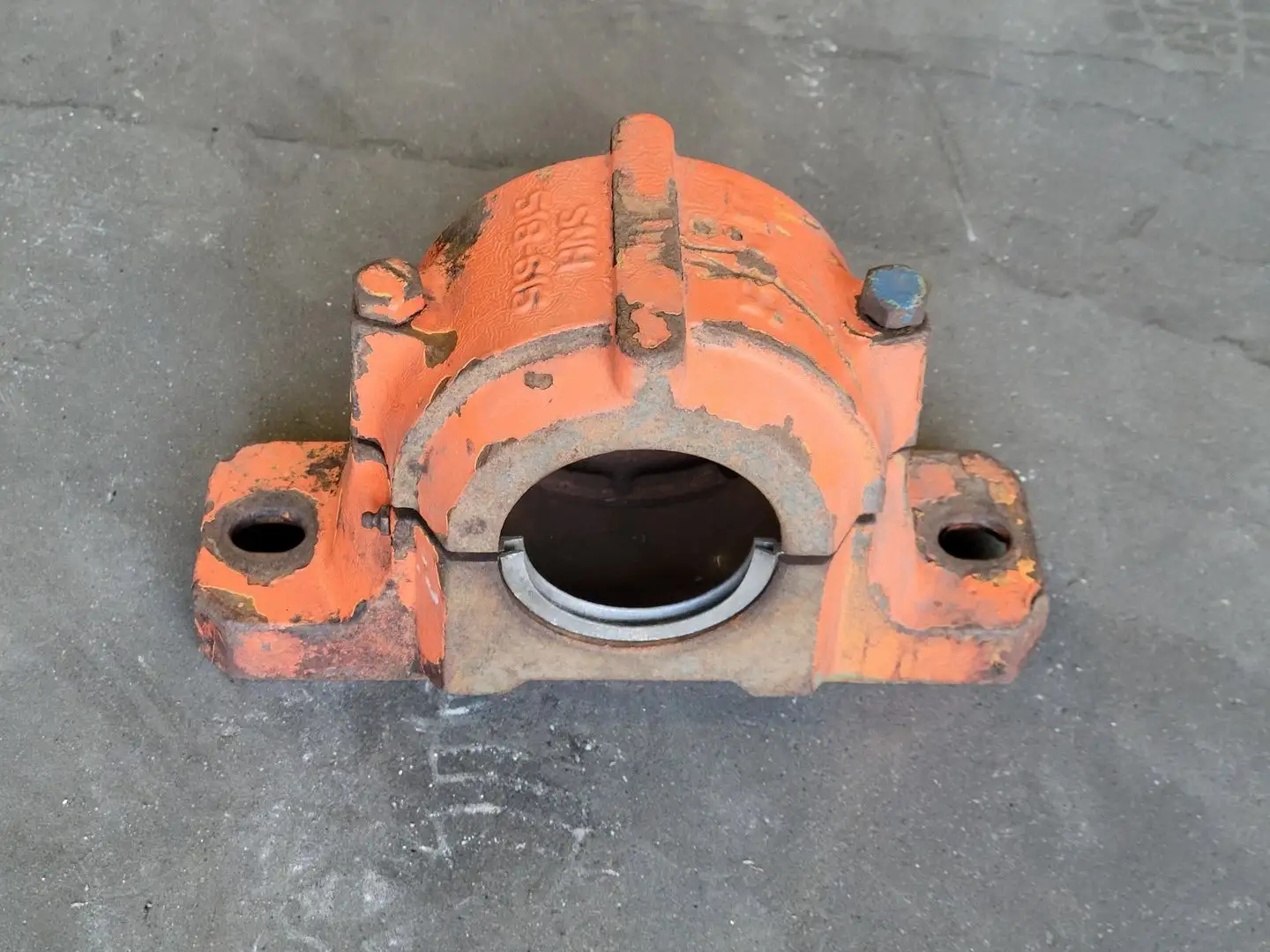

USED SKF SNH 518-615

Type: Split Plummer Block
Height: 192 mm
Outside Length: 345 mm
Base to Bore Centerline: 100 mm
Distance Between Bolts: 290 mm
Housing Compatible Bore Diameter: 160 mm
Properties
Housing type: Plummer/pillow block
Housing configuration: Two-piece
Mounting arrangement: Through shaft/Shaft end
Number of bolt holes for fasteners: 2
Material, housing: Cast iron
Bearing housing seal type: Without
Housing lubrication feature/possibility: Grease
Materials
Housing material: Cast iron
Corrosion protection: Paint - in accordance with ISO 12944-2, corrosivity category C2
Mounting information
Recommended diameter of attachment bolts: 20 mm
Recommended tightening torque for attachment bolts: 385 Nm
Size of cap bolts: M16x90
Tightening torque for cap bolts: 150 Nm
Initial grease fill, 20%: 260 g
Initial grease fill, 40%: 430 g
