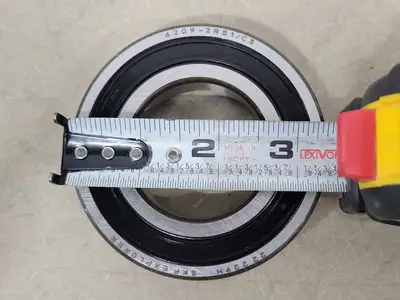

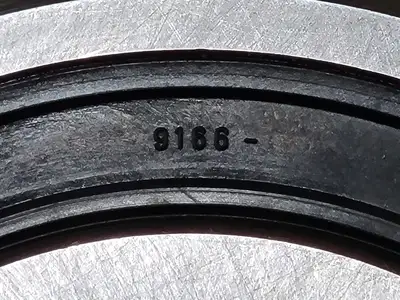

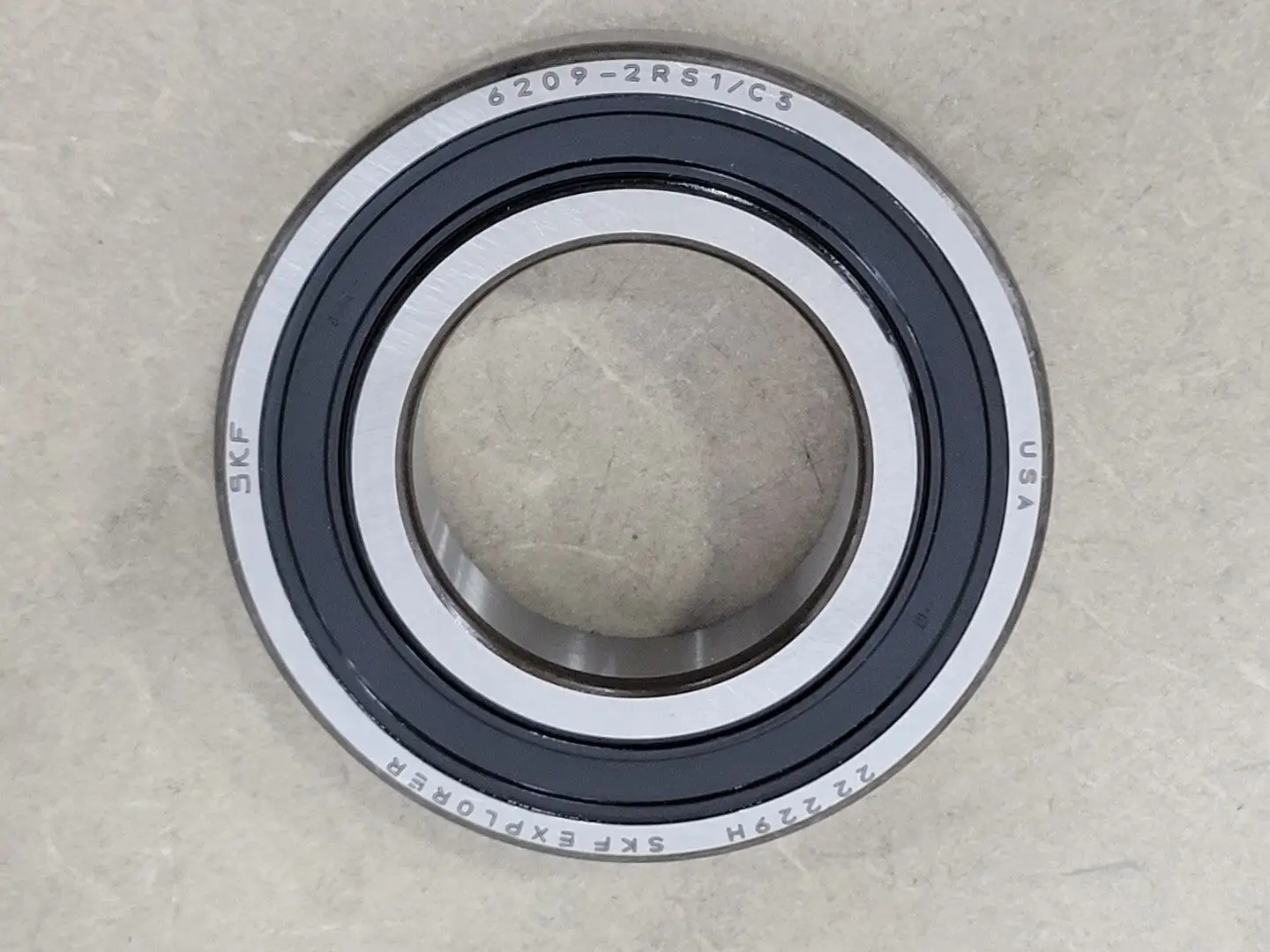

NEW SKF 6209-2RS1/C3

Bore Size (Metric): 45 mm
Bore Size (Imperial): 1.77 in
Outside Diameter (Metric): 85 mm
Outside Diameter (Imperial): 3.35 in
Bearing Type: Cylindrical
Internal Clearance: C3
Dimensions
Bore diameter: 45 mm
Outside diameter: 85 mm
Width: 19 mm
Performance
Basic dynamic load rating: 35.1 kN
Basic static load rating: 21.6 kN
Limiting speed: 5 000 r/min
SKF performance class: SKF Explorer
Properties
Filling slots: Without
Number of rows: 1
Locating feature, bearing outer ring: None
Bore type: Cylindrical
Cage: Sheet metal
Matched arrangement: No
Radial internal clearance: C3
Tolerance class: Class P6 (P6)
Material, bearing: Bearing steel
Coating: Without
Sealing: Seal on both sides
Sealing type: Contact
Lubricant: Grease
Relubrication feature: Without
